l The control module controls the board operating status.
l The switching module processes signals on the GE interface.
l The panel provides the BITS, clock, and GE interfaces.
l The BITS module receives, transmits, and shapes BTIS signals.
l The power module supplies power to other function modules of the board
l The clock module provides the working clock for other function modules of the board
The H806VPEF board processes services as follows: The H806VPEF board sends 240
channels of GE bus signals to service boards. Each service board processes 40 channels of GE
services, and implements the crosstalk calculation function.

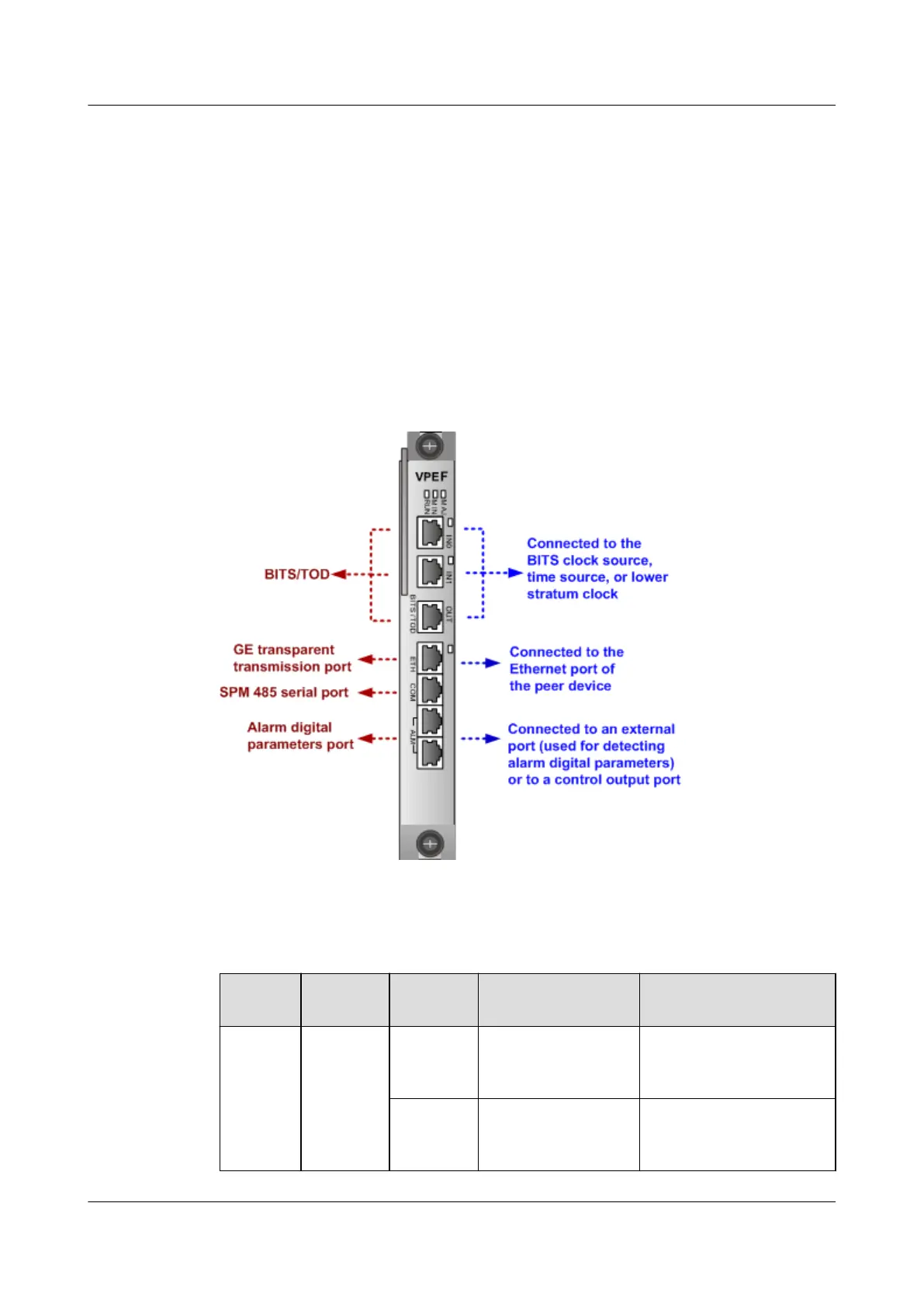

Front Panel Port
Indicator
Indicato
r
Name Color Status Meaning
RUN Running
status
indicator
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board works in the
normal state
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board is starting up
