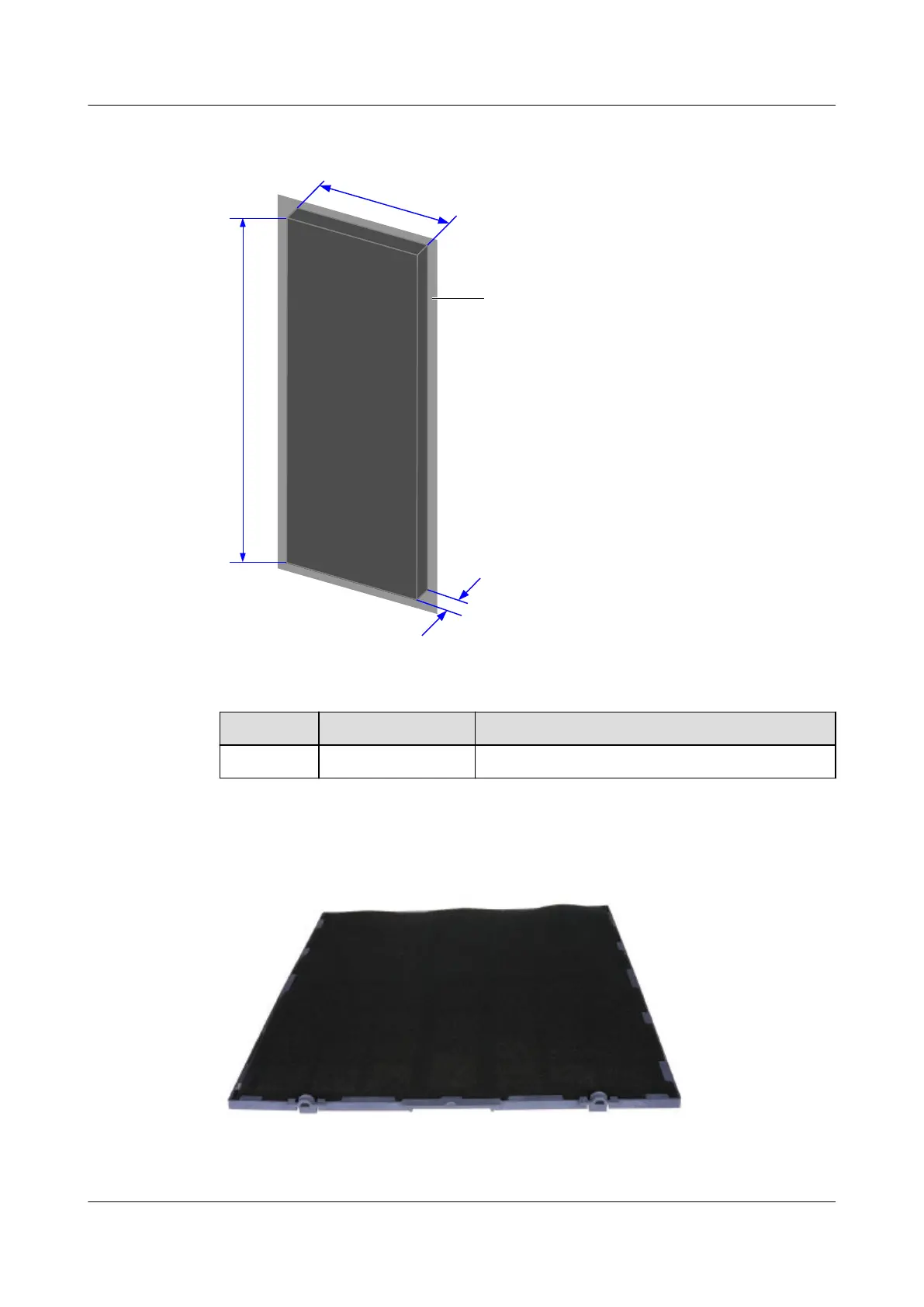

Figure 1-54 Dimensions of the air filter on the inner side of the front door of the N66E-22
cabinet
Front door
2
0
3
5
.
0
0
m
m
436.00 mm
7.00 mm
Table 1-9 Material and dimensions of the air filter on the inner side of the front door of the
N66E-22 cabinet
Cabinet
Material Dimensions (W x D x Thickness)
N66E-22 50PPI black sponge 522.00mm×2046.00mm×7.00mm
Figure 1-55 shows the air filter at the bottom of the N66E-22 cabinet.
Figure 1-55 Appearance of the air filter at the bottom of the N63E-22 cabinet
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
