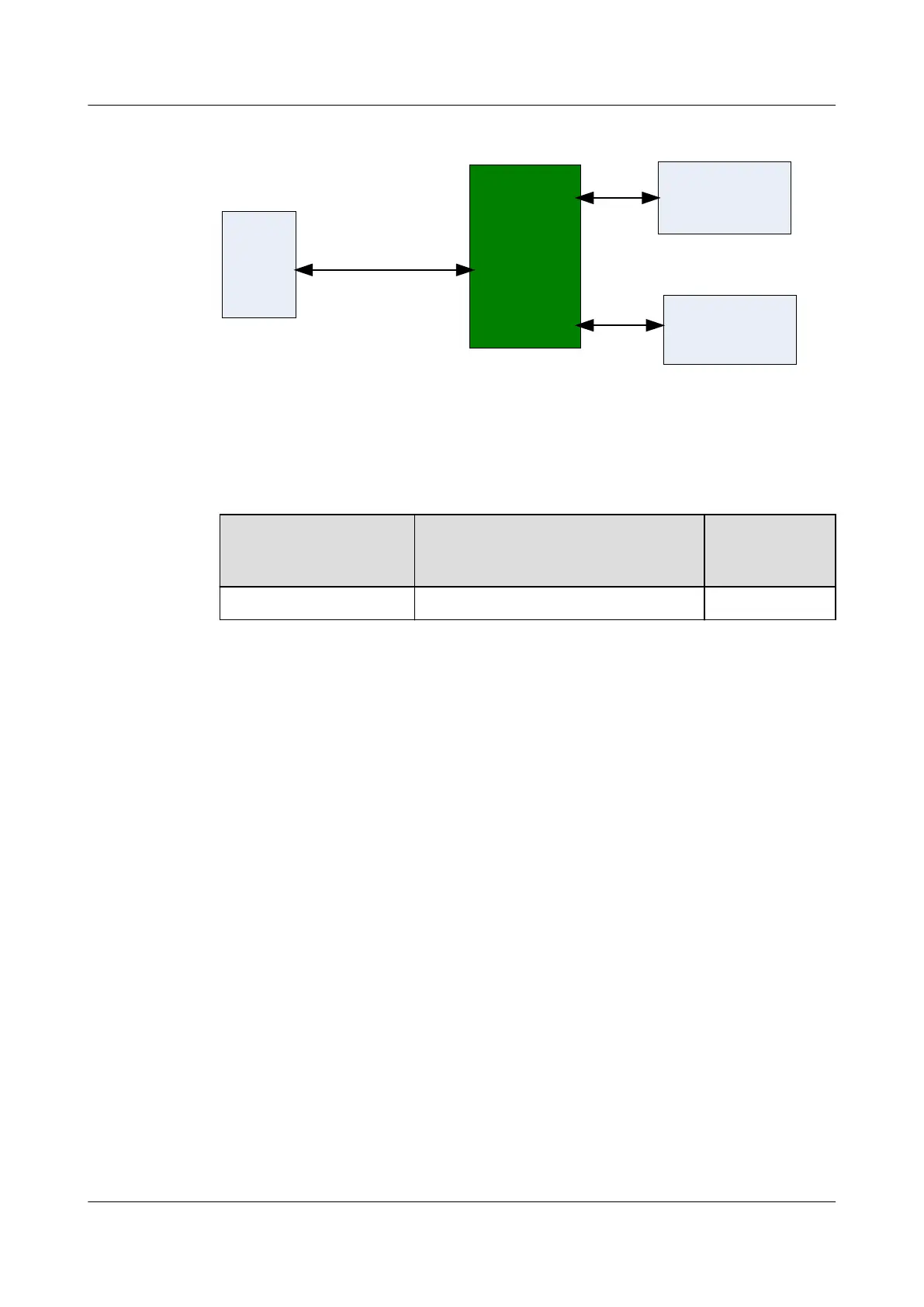

Figure 3-162 External connections of the H801VSPLC board
VDSL2 over POTS
VDSL2
POTS
VDSL2
service board
PSTN device
VSPLC
VTU-R
Technical Specifications
Table 3-222 Technical specifications of the H801VSPLC board
Board
Dimensions (W x D x H) Maximum
Power
Consumption
H801VSPLC 22.86 mm x 237.00 mm x 395.40 mm 0 W
Working Principle
The H801VSPLC board is divided into two parts: splitter module and protection module. The
splitter module separates VDSL2 signals from POTS signals, and the protection module
protects the LINE line against overcurrent and overvoltage.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
830
