Appearance and Structure
The appearances of a single-mode optical fiber and a multi-mode optical fiber are the same,
but their colors are different. The single-mode optical fiber is yellow, and the multi-mode
optical fiber is orange.

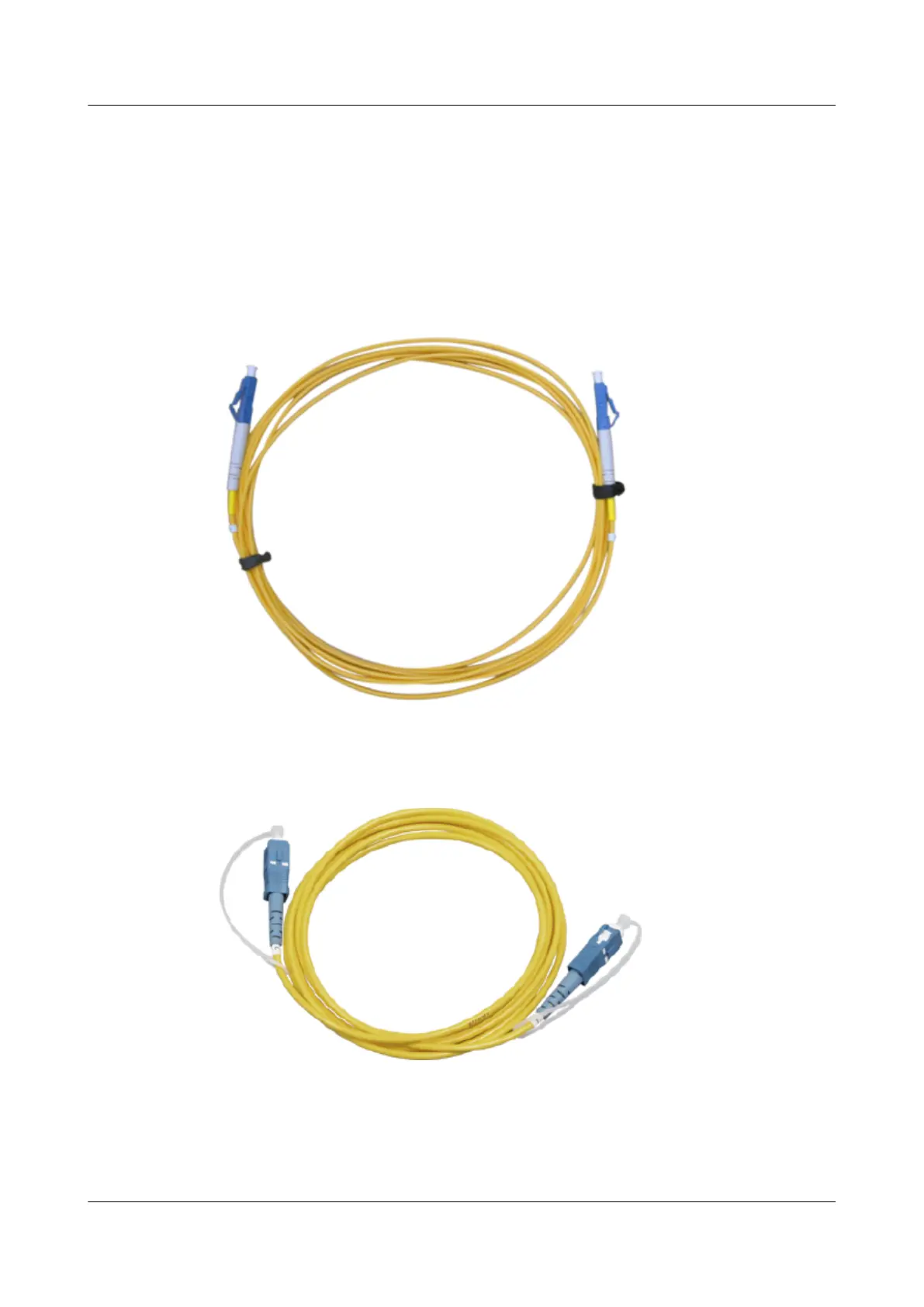

Figure 5-7 and Figure 5-8 show the appearances of single-mode optical fibers with different
connectors.
Figure 5-7 Appearance of a single-mode optical fiber with LC/PC connectors
Figure 5-8 Appearance of a single-mode optical fiber with SC/PC (SC/UPC) connectors
An optical fiber carries optical signals. It is connected as follows:
l One end of the optical fiber is connected to an optical port of a board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
901
