Output Terminal
The ETP4890 power system supports eight groups of output terminals. The left-side eight
output terminals are negative and the right-side eight output terminals are positive.
Figure 6-22 shows the output terminals in the ETP4890 power system.

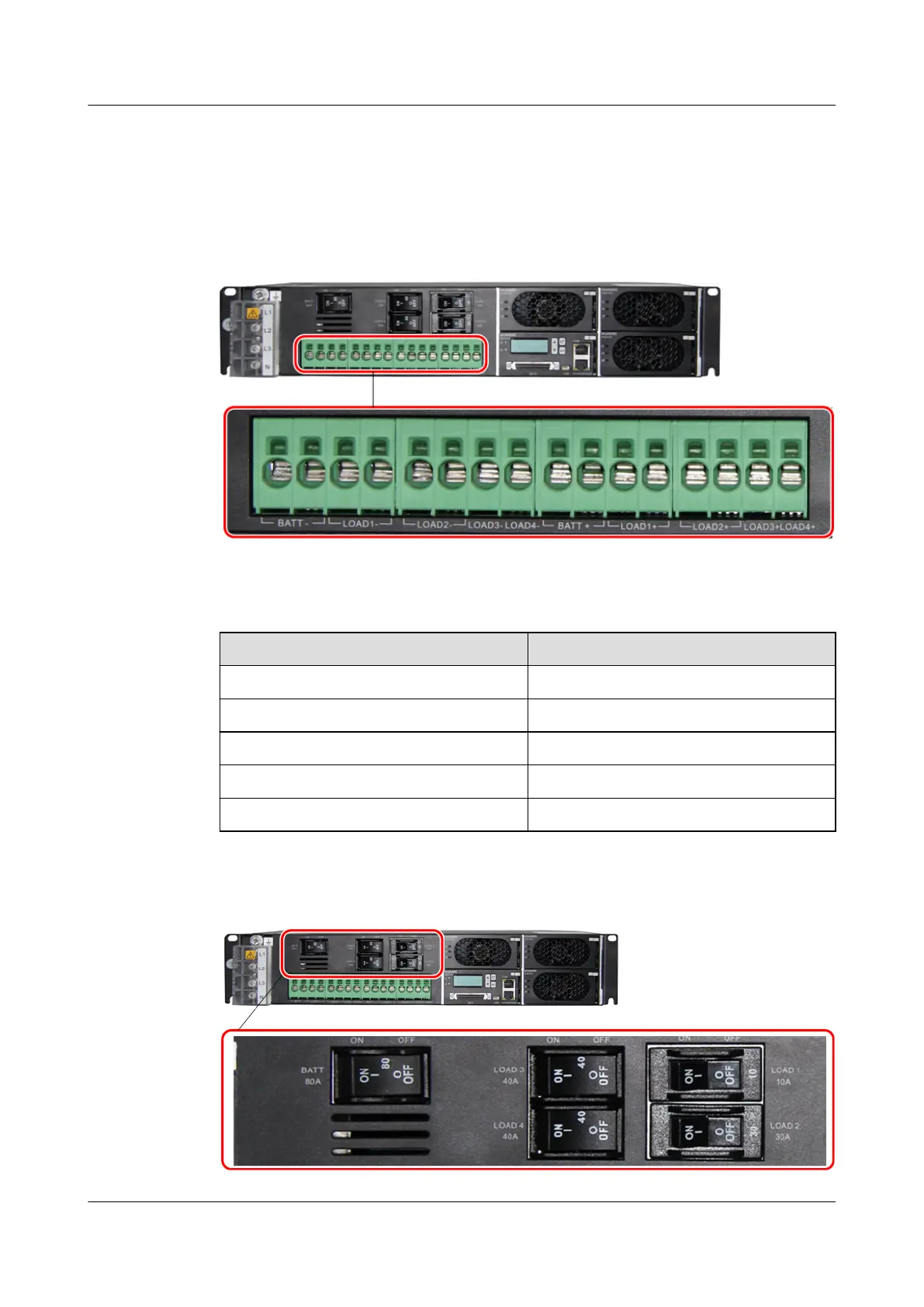

Figure 6-22 Output terminals in the ETP4890 power system
Table 6-19 lists the Specifications of the output terminals.
Table 6-19 Specifications of the output terminals
Port
Circuit Breaker
LOAD1 10 A
LOAD2 30 A
LOAD3 40 A
LOAD4 40 A
BATT 80 A
Figure 6-23 shows the output branch circuit breaker in the ETP4890 system.
Figure 6-23 Output branch circuit breaker in the ETP4890 system
