Sensor Port

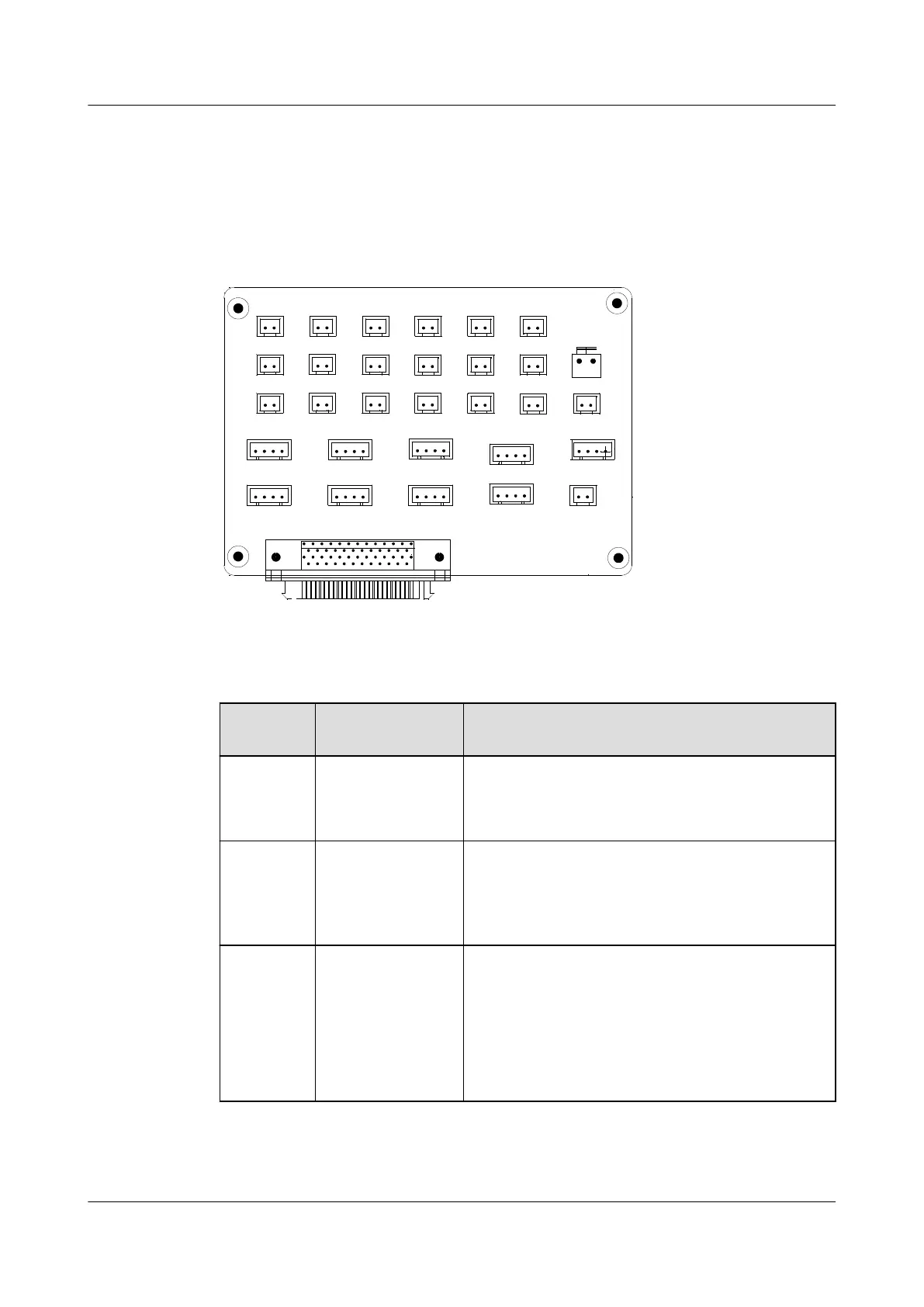

Figure 6-33 and Table 6-34 describe the sensor ports of the PMIB01 sensor transfer box.
Figure 6-33 Sensor ports of the PMIB01 sensor transfer box
FU_ALM
BAT_WE
JAC2
VTEM2 VBTEM2
SMOKEJTP1 JTM1
JKM4
JKM3 JKM2 JKM1
JK 2
JK1
SIM2
JAC1JAC3JAC5 JAC4JAC6
JTD1
WATER
TEM_HU
JTD7
JTD6
JTD5
JTD4 JTD2
J1
SIM 1
JTD3
Table 6-34 Pin Function of the Sensor Ports
Silk
Screen
Signal Port Pin Function
BAT_WE Sensor port of
battery temperature
1
l Pin 1 is for the +12 V power supply.
l Pin 2 is for the signal cable.
The external sensor outputs the 0-5 V voltage signal.
VBTEM2 Sensor port of
battery temperature
2
l Pin 1 is for the +24 V power supply.
l Pin 2 is for the temperature signal cable.
The external sensor outputs the 4-20 mA current
signal.
WATER Water sensor port
l Pin 1 is for the +12 V power supply.
l Pin 2 is for the signal cable.
l Pin 3 is for grounding.
l Pin 4 is reserved.
When the impedance between pin 2 and pin 3 drops to
a certain range, alarms are triggered.
