Table 6-38 LEDs on the front panel of the SPD28SZ surge protector.
LED Status Description
Working LED Green The surge protector works in the normal
state.
Red The surge protector is faulty.
Failure LED OFF The surge protector works in the normal
state.
Red The surge protector is faulty.
NOTE
When the mains over-voltage protection circuit is started for the surge protector, the surge protection
function of the surge protector still works and the green working LED is still on. When the failure LED
is red, replace the surge protector in time.
Electrical Connection

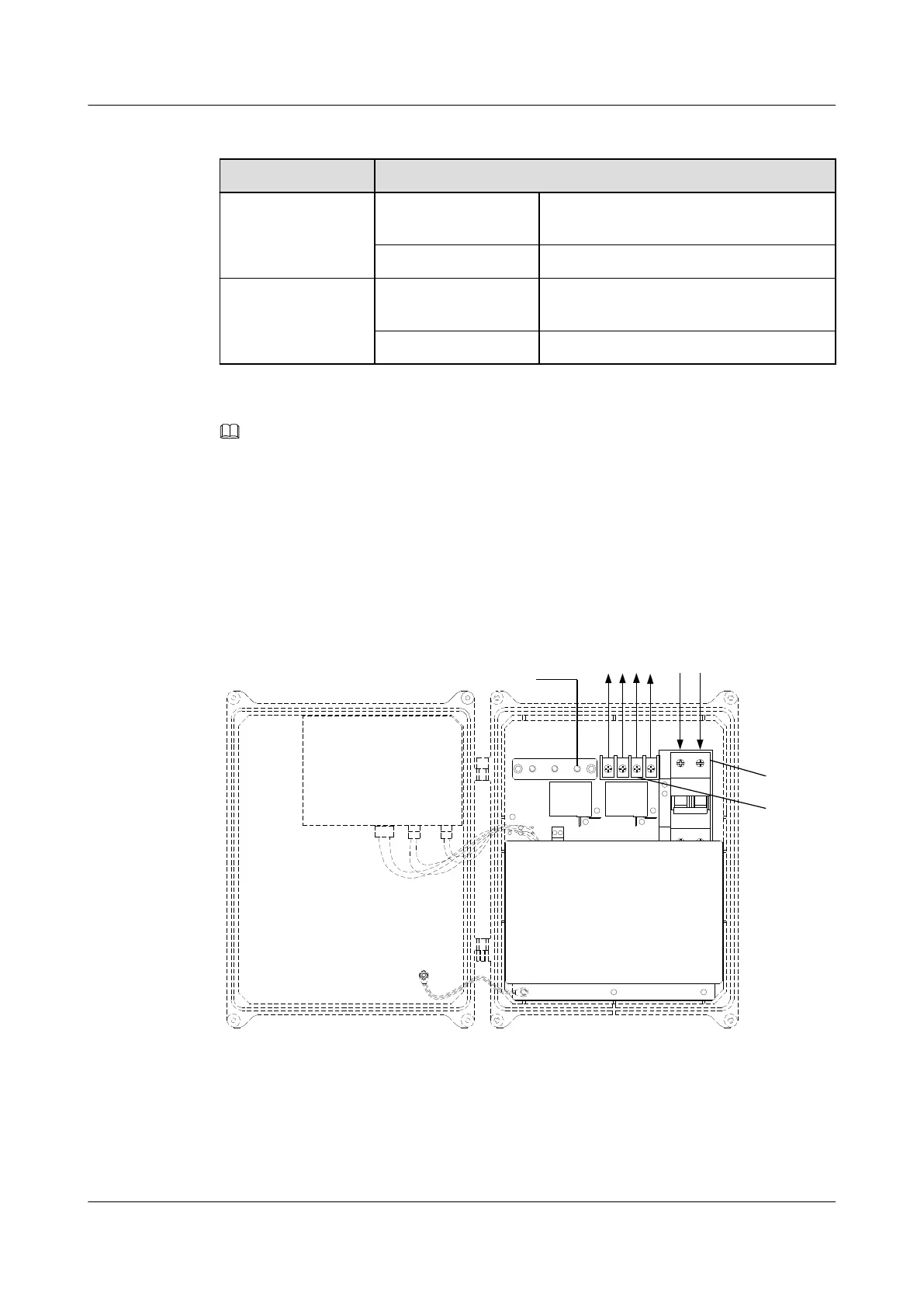

Figure 6-37 shows the electrical connections of the SPD28SZ surge protector.
Figure 6-37 Electrical connections of the SPD28SZ surge protector
SPD
SPD
Alarm
Grounding
bar
PE
Nin LinNout Lout
Input terminal
Output terminal
Specifications
Table 6-39 lists the specifications of the SPD28SZ surge protector.
