Wiring Area

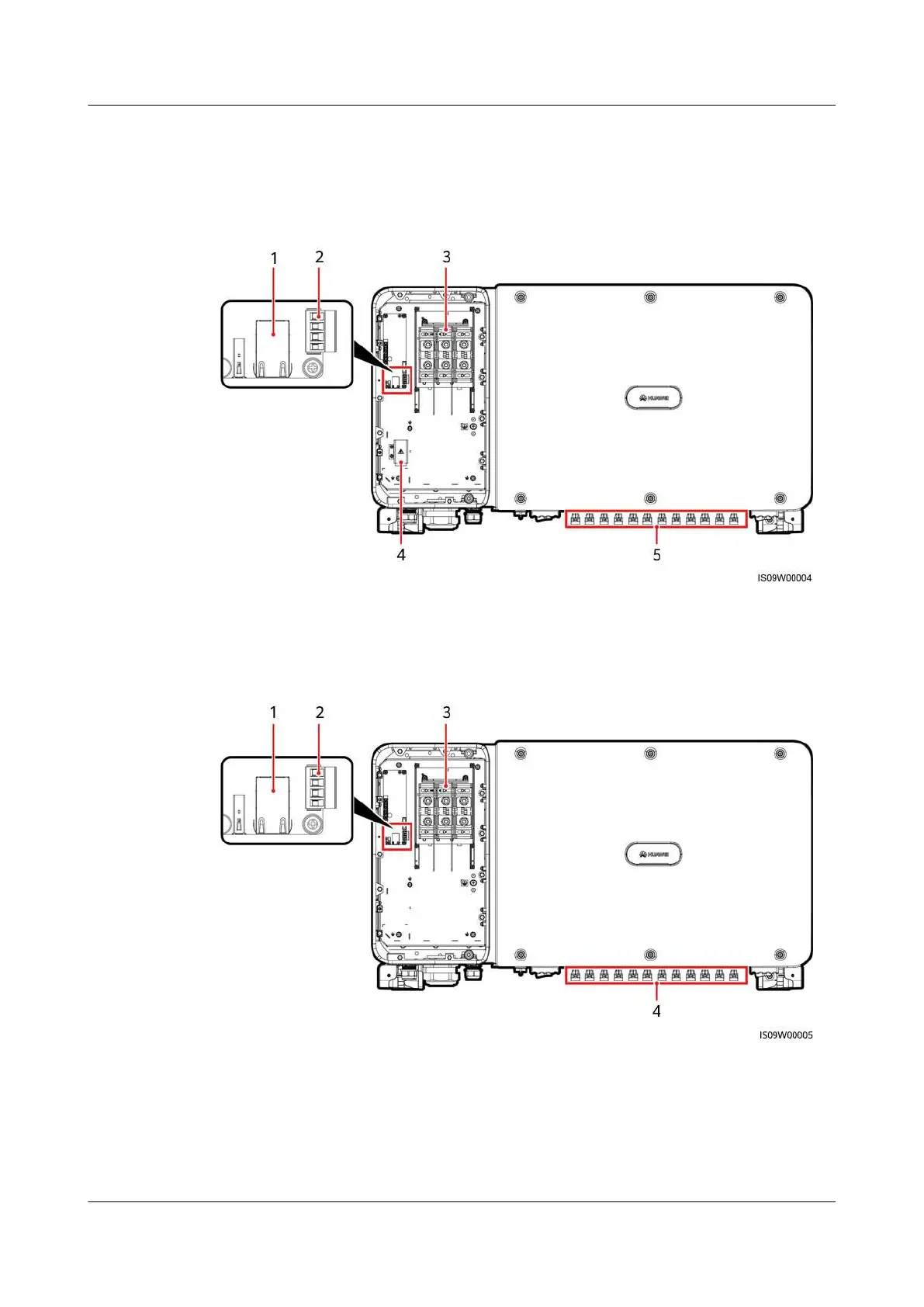

Figure 2-13 Wiring ports (SUN2000-90KTL-H0, SUN2000-90KTL-H1,
SUN2000-90KTL-H2, SUN2000-95KTL-INH0, SUN2000-95KTL-INH1,
SUN2000-100KTL-H1, and SUN2000-105KTL-H1)
(1) RS485 port (RJ45 network port) (2) RS485 port (terminal block) (3) AC terminal block
(4) Power port for the tracking system (5) DC input terminal -
Figure 2-14 Wiring ports (SUN2000-100KTL-H0 and SUN2000-100KTL-H2)
(1) RS485 port (RJ45 network port)
(2) RS485 port (terminal block) (3) AC terminal block
(4) DC input terminal - -
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
