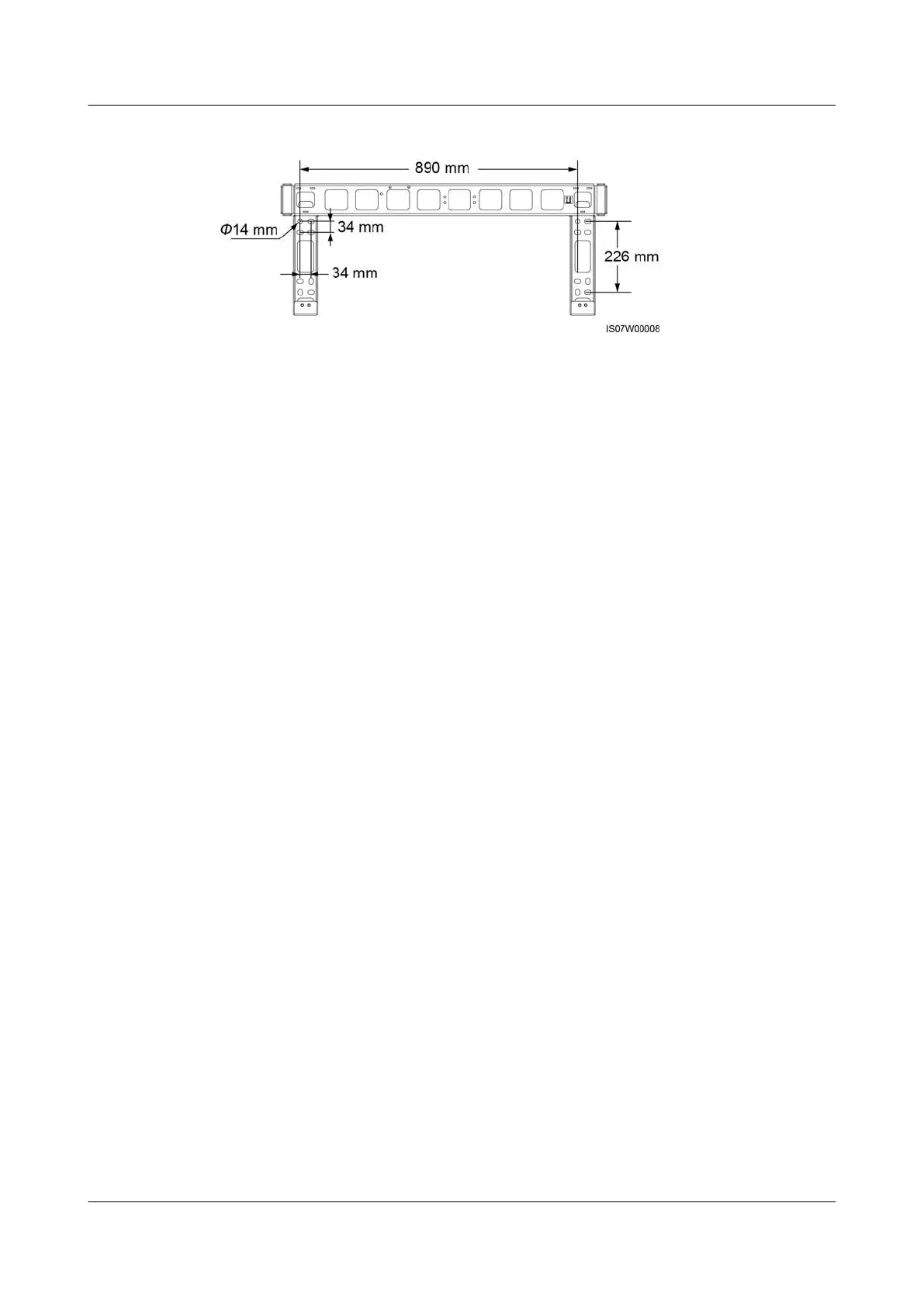

Figure 4-9 Hole dimensions
4.4.1 Support-Mounted Installation
Prerequisites
The M12x40 bolt assemblies are delivered with the mounting bracket. If the bolt
assembly length does not meet the installation requirements, prepare M12 bolt
assemblies by yourself and use them together with the delivered M12 nuts.
Procedure
Step 1 Determine the positions for drilling holes using the mounting bracket. Level the
positions of mounting holes using a bubble or digital level, and mark the positions
with a marker.
Step 2 Drill holes using a hammer drill. You are advised to apply anti-rust paint on the
hole positions for protection.
Step 3 Secure the mounting bracket.
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
4 Installation
Issue 11 (2020-08-30) Copyright © Huawei Technologies Co., Ltd. 33
