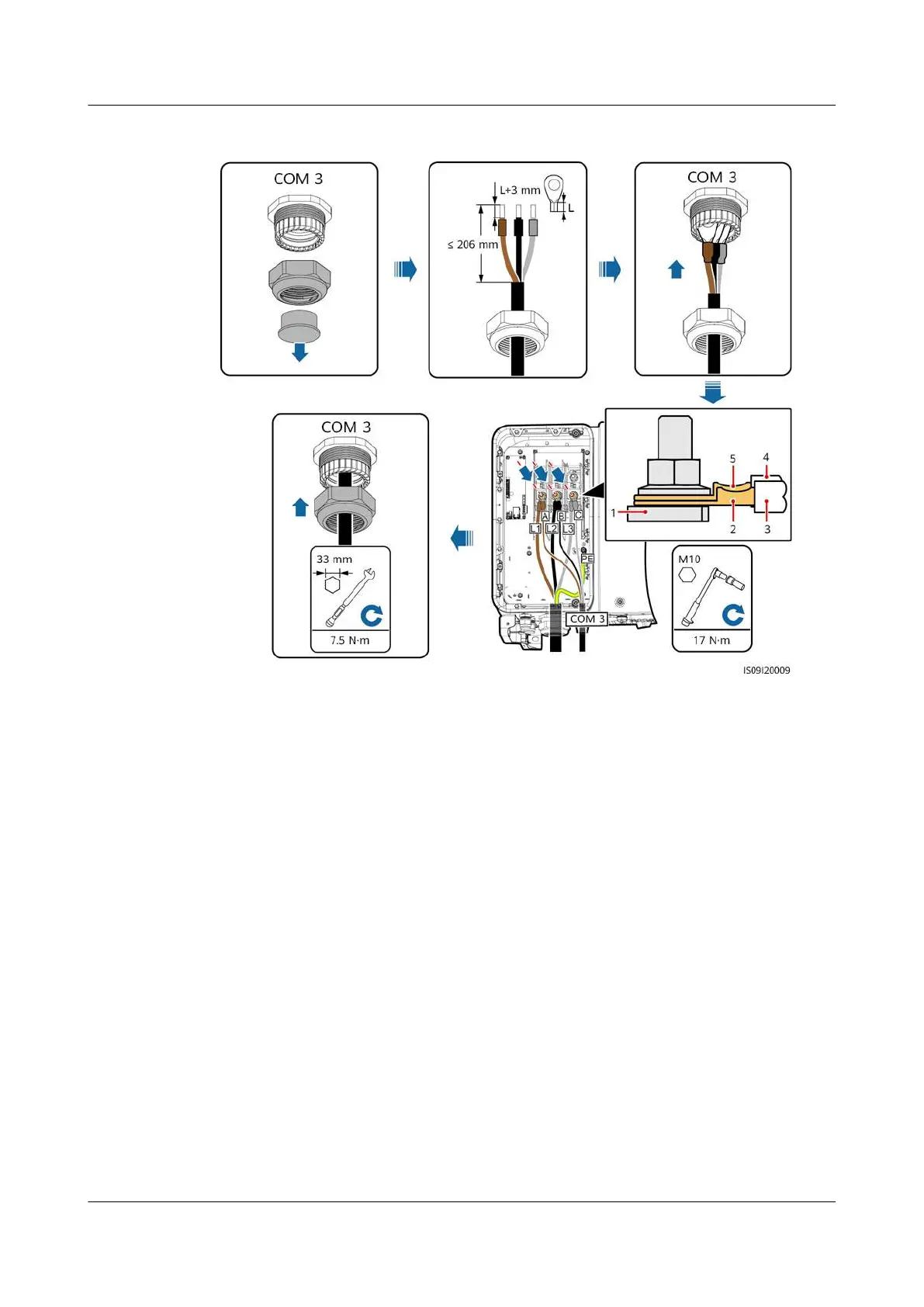

Figure 5-17 Connecting the power cable of the tracking system
(1) AC terminal block (2) OT/DT terminal of the AC output power
cable
(3) AC output
power cable
(4) Power cable of the
tracking system
(5) OT terminal of the power cable of the
tracking system
-
----End
Follow-up Operations
Check that the cable is connected correctly and securely. Then seal the cable
gland. Clear the foreign matter from the maintenance cavity.
5.9 Closing the Maintenance Compartment Door
Procedure
Step 1 Install the AC terminal cover and then install the support bar.
Step 2 Close the maintenance compartment door and tighten the two screws on the
door.
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
5 Electrical Connections
Issue 11 (2020-08-30) Copyright © Huawei Technologies Co., Ltd. 64
