Huawei SUN2000-90KTL Series User Manual

Table 5-3 PE cable specications
Conductor Cross-Sectional Area S of the AC
Power Cable (mm
2
)
Conductor Cross-Sectional Area S
P
of the PE
Cable (mm
2
)
16 < S ≤ 35 S
P
≥ 16
35 < S S
P
≥ S/2
● The specications are valid only if the conductors of the PE cable and AC power cable use the
same material. If the materials are dierent, ensure that the conductor cross-sectional area of
the PE cable produces a conductance equivalent to that of the cable specied in the table.
● The specications of the PE cable are subject to this table or calculated according to IEC
60364-5-54.
5.2.2 RS485 Communication
If RS485 is selected, connect an RS485 communications cable to the SUN2000, but
the AC power cable does not need to connect to a SmartLogger that supports
MBUS.

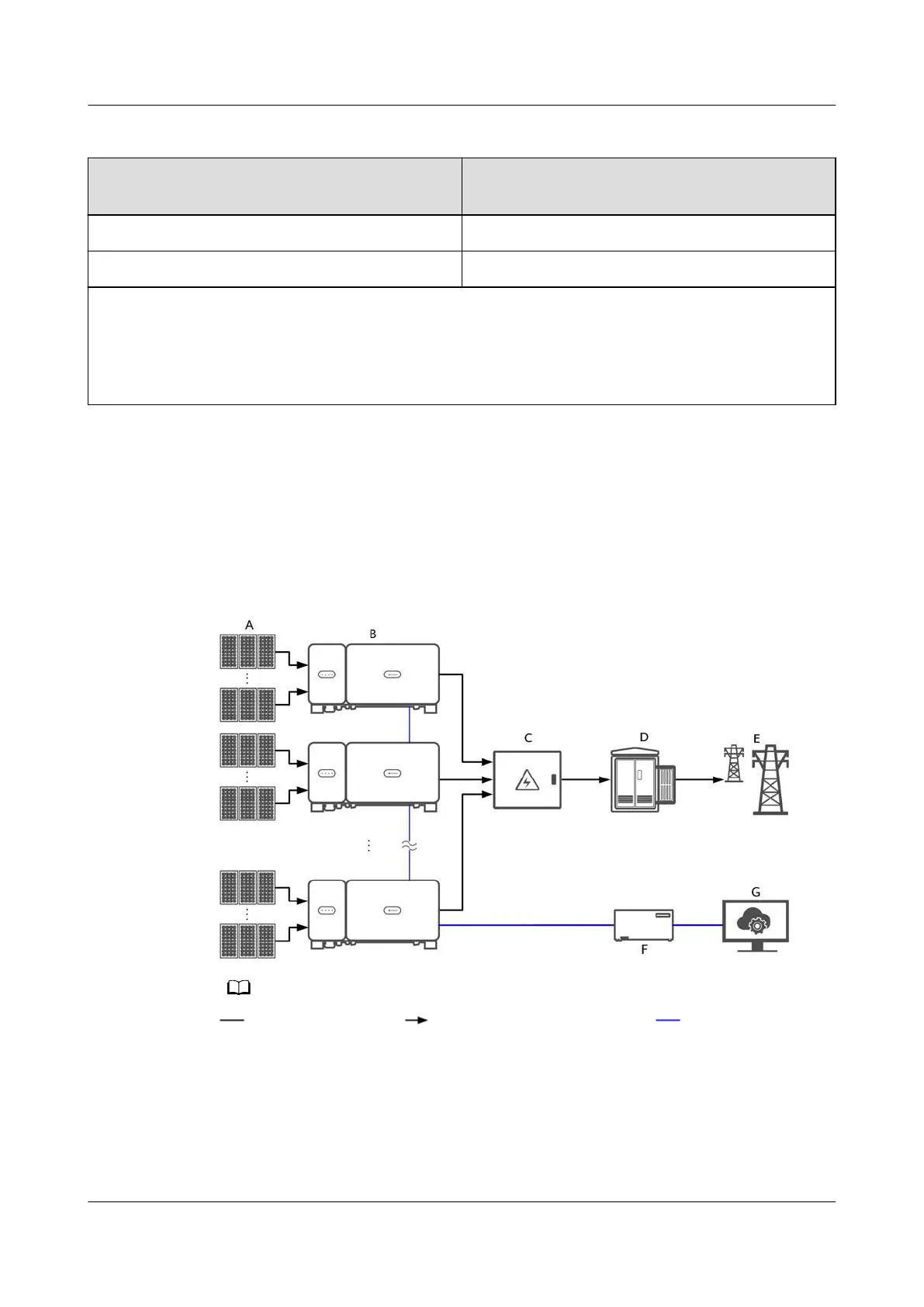

Figure 5-3 Network Application
NO TE
indicates a power cable; indicates the power ow direction; indicates a signal cable.
(A) PV string
(B) SUN2000 (C) AC combiner box
(D) Step-up transformer (E) Power grid (F) SmartLogger
(G) Management system - -
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
5 Electrical Connections
Issue 11 (2020-08-30) Copyright © Huawei Technologies Co., Ltd. 45
