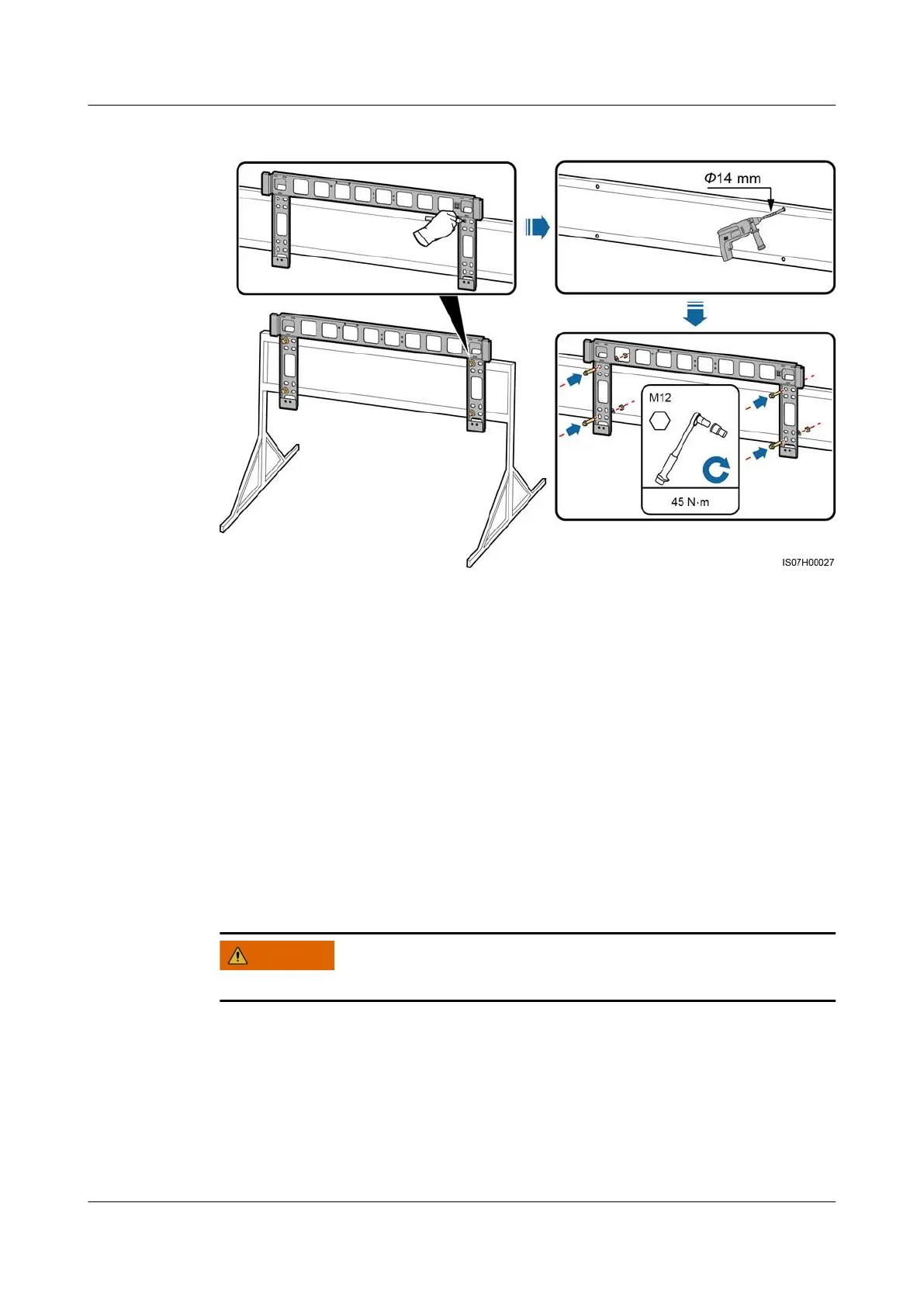

Figure 4-10 Installing the mounting bracket
----End
4.4.2 Wall-Mounted Installation
Prerequisites
You have prepared the expansion bolts. M12x60 stainless expansion bolts are
recommended.
Procedure
Step 1 Determine the positions for drilling holes using the mounting bracket. Level the
positions of mounting holes using a bubble or digital level, and mark the positions
with a marker.
Step 2 Drill holes using a hammer drill and install expansion bolts.
Avoid drilling holes in the water pipes and power cables buried in the wall.
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
4 Installation
Issue 11 (2020-08-30) Copyright © Huawei Technologies Co., Ltd. 34
