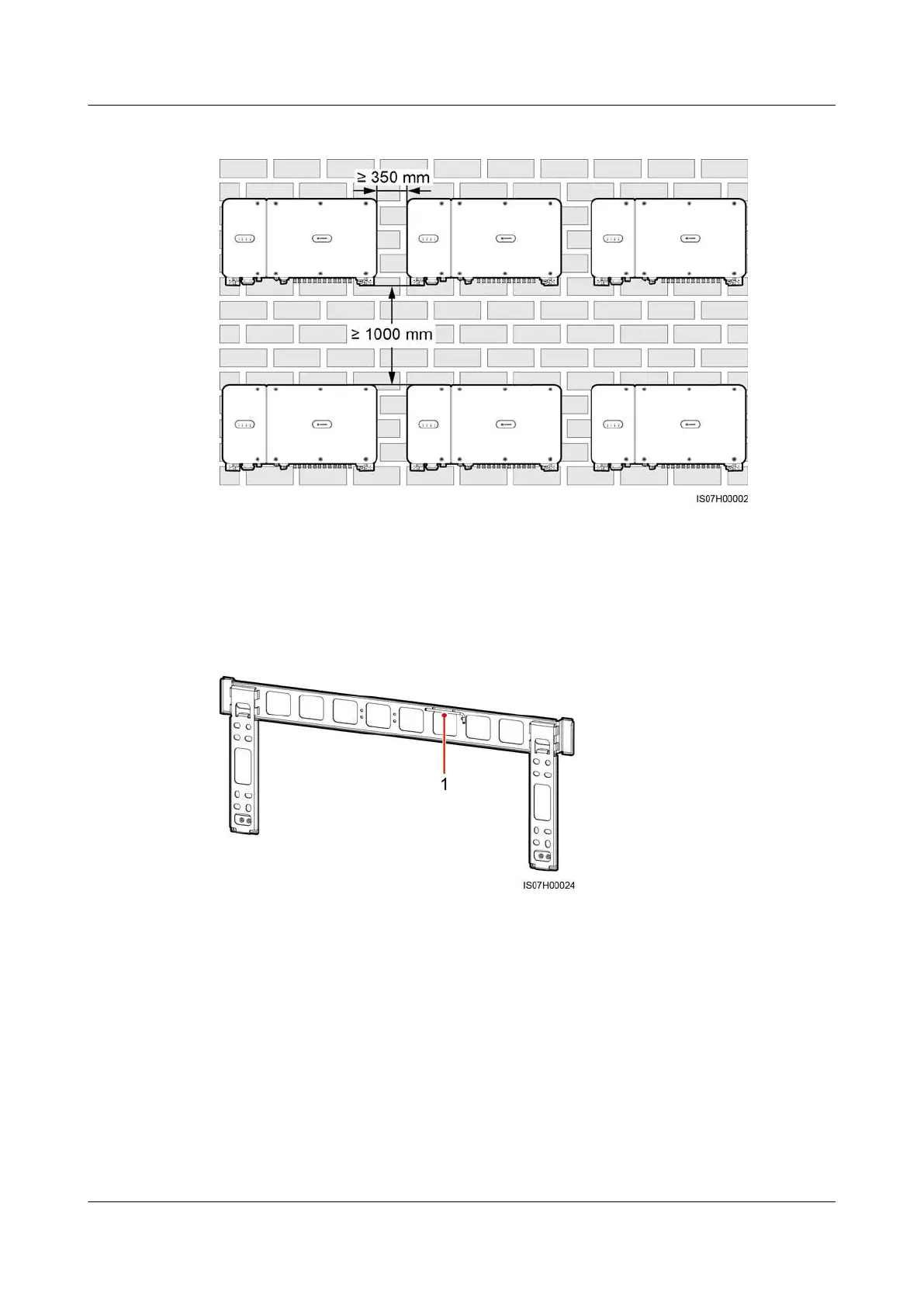

Figure 4-7 Stacked installation mode (not recommended)
4.4 Installing the Mounting Bracket
Before installing the mounting bracket, remove the security Torx wrench and save
it for later use.
Figure 4-8 Position for binding the security Torx wrench
(1) Position for binding the security Torx wrench
The SUN2000 mounting bracket has four groups of screw holes, each group
containing four holes. Mark any one hole in each group based on site
requirements and mark four holes in total. The two round holes are
recommended.
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
4 Installation
Issue 11 (2020-08-30) Copyright © Huawei Technologies Co., Ltd. 32
