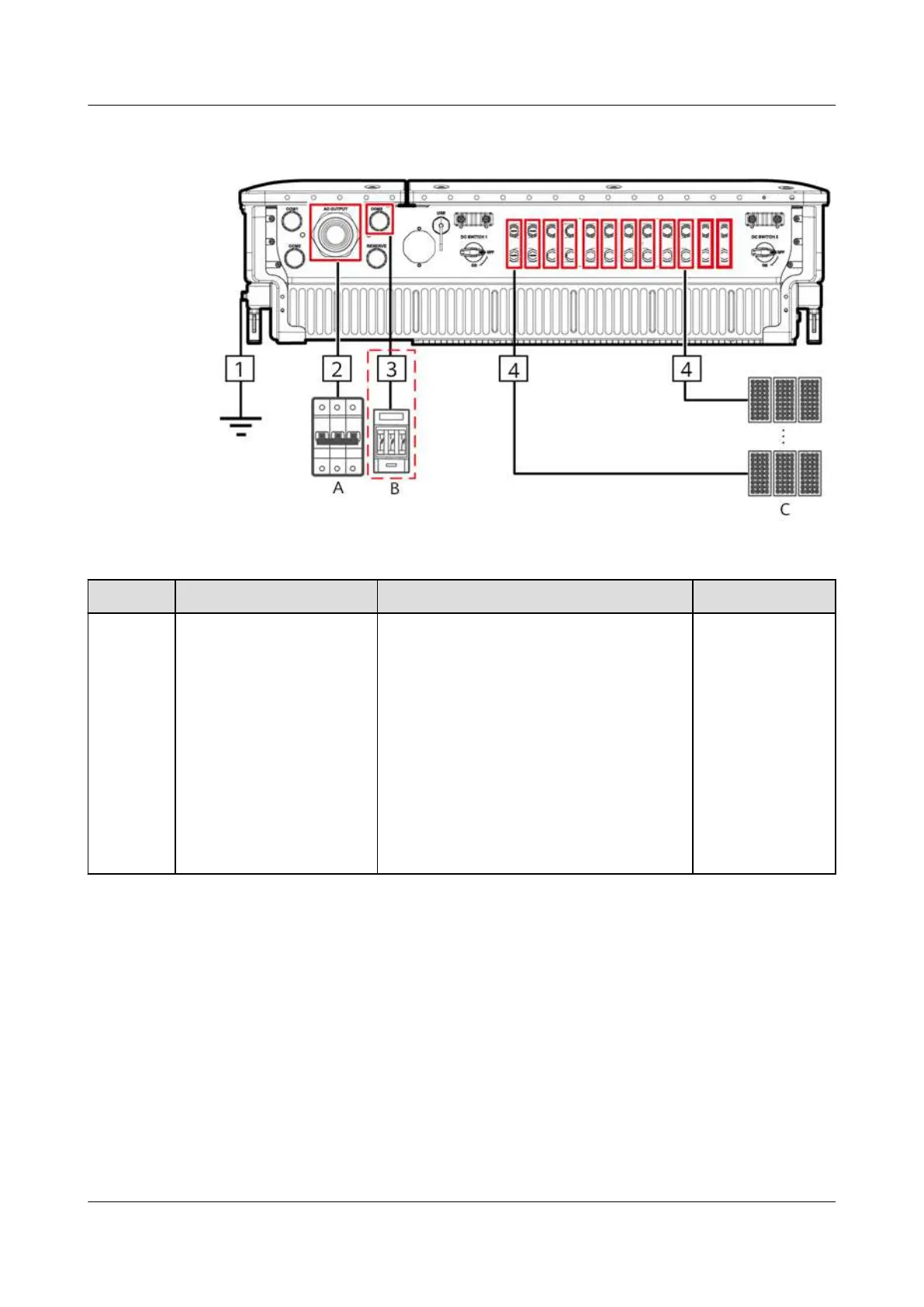

Figure 5-2 SUN2000 cable connections (dashed box indicating optional
components)
Table 5-1 Component description
No. Component Remarks Source
A AC switch ● Installed in the AC combiner box
● It is recommended that a three-
phase AC circuit breaker with a rated
voltage greater than or equal to 800
V AC and a rated current of 125 A be
congured for the SUN2000-105KTL-
H1.
● It is recommended that a three-
phase AC circuit breaker with a rated
voltage greater than or equal to 800
V AC and a rated current of 100 A be
congured for other models.
Prepared by the
customer
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
5 Electrical Connections
Issue 11 (2020-08-30) Copyright © Huawei Technologies Co., Ltd. 42
