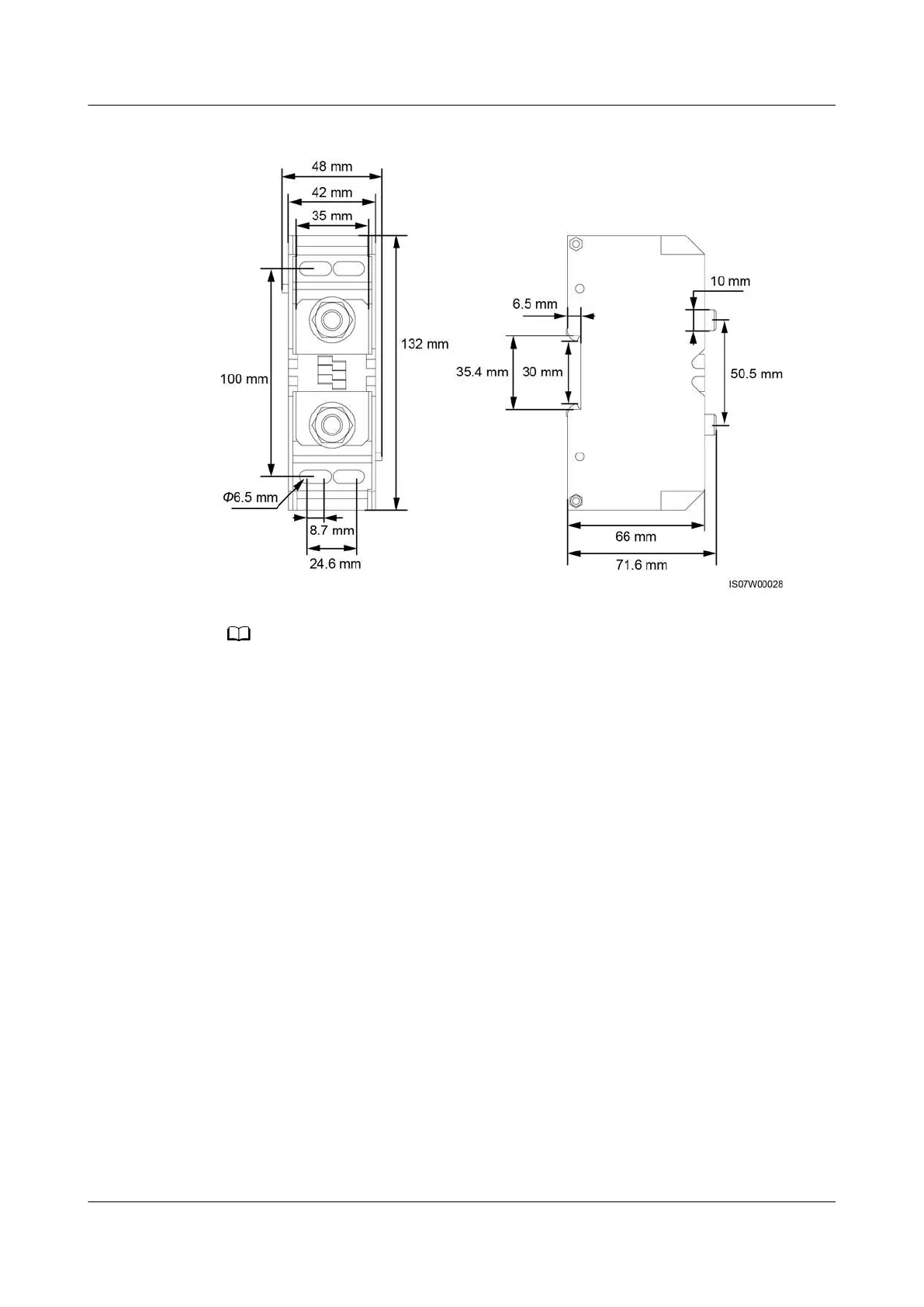

Figure 5-9 AC terminal block dimensions
This document introduces how to install the four-core AC output power cable, which can be a
reference for installing the three-core cable. The three-core cable does not need a PE cable
installed in the maintenance compartment.
Procedure
Step 1 Remove the sealing nut and rubber
tting from the waterproof connector.
Step 2 Select an appropriate rubber tting based on the cable outer diameter.
Step 3 Prepare a cable and crimp OT/DT terminals.
Step 4 Route the cable through the waterproof connector.
Step 5 Secure the AC output power cable and PE cable.
Step 6 Tighten the waterproof connector.
SUN2000-(90KTL, 95KTL, 100KTL, 105KTL) Series
User Manual
5 Electrical Connections
Issue 11 (2020-08-30) Copyright © Huawei Technologies Co., Ltd. 54
