Connecting to an RJ45 Network Port

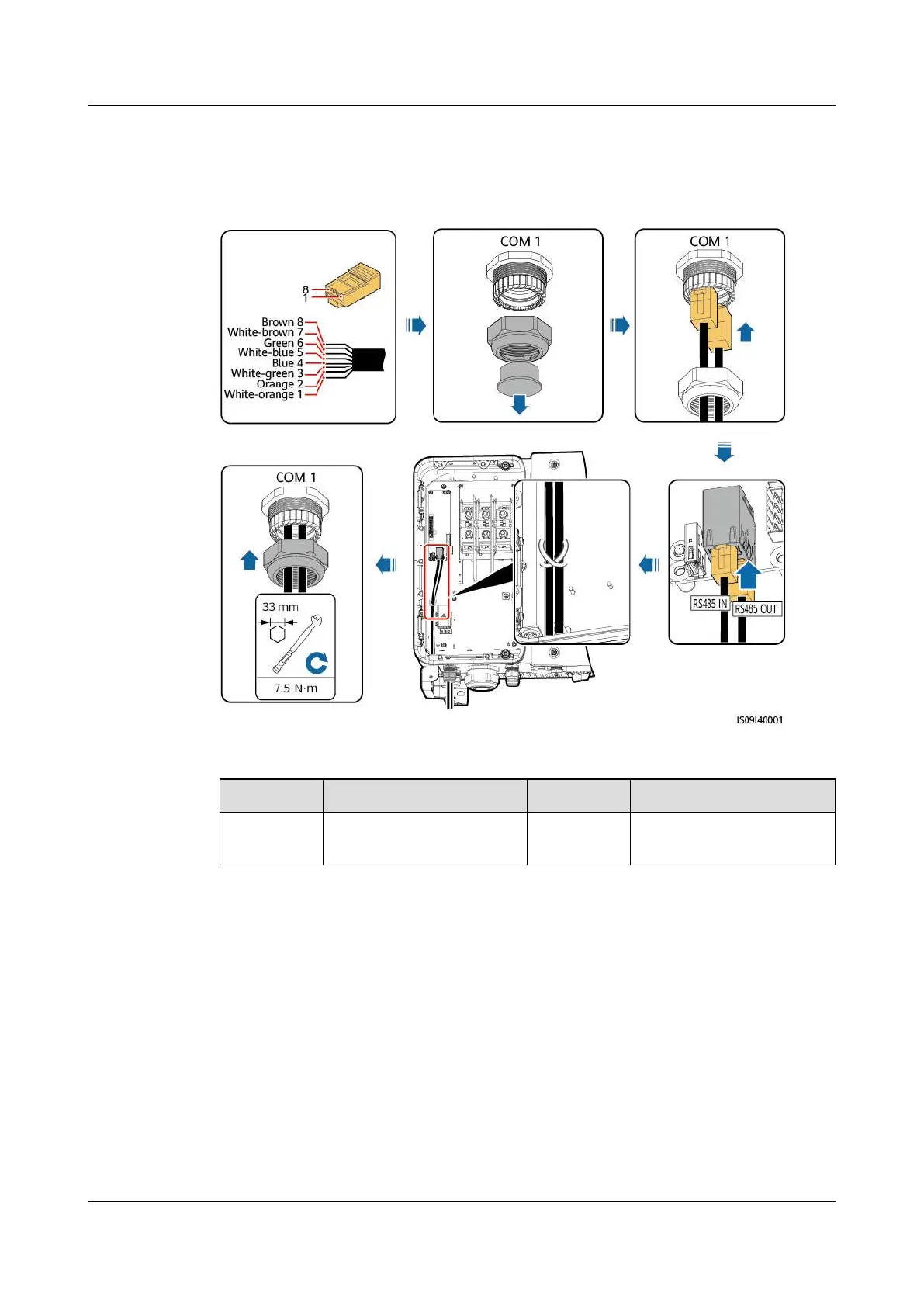

Figure 5-15 Connecting the RS485 communications cable (to an RJ45 network
port)
Table 5-8 RJ45 network port description
No. Description No. Description
1, 4 RS485A, RS485
dierential signal+
2, 5 RS485B, RS485
dierential signal–
Follow-up Operations
Check that the cable is connected correctly and securely. Then seal the cable
gland. Clear the foreign matter from the maintenance compartment.
