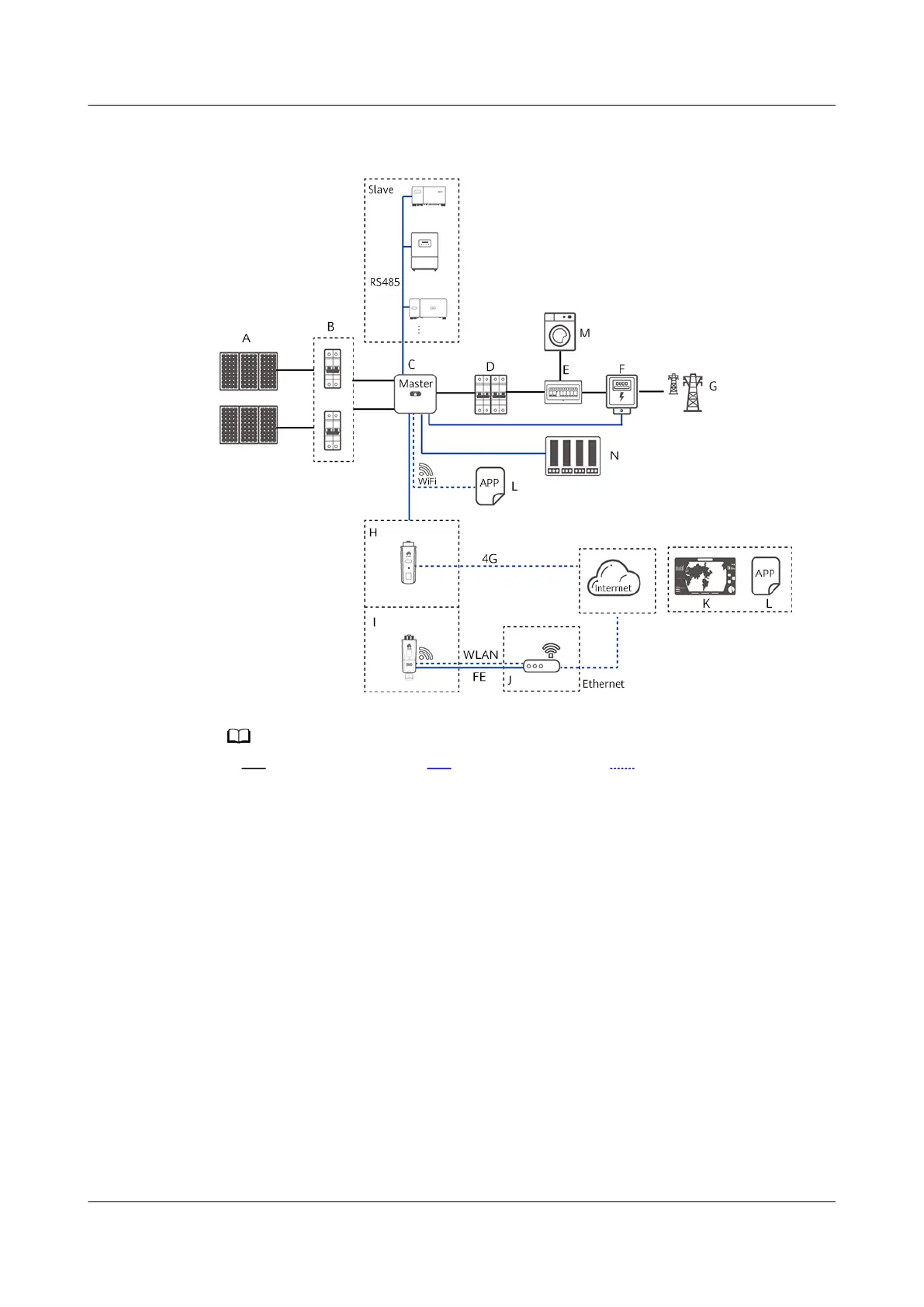

Figure 2-3 Networking application - Inverter cascading scenario (optional in
dashed boxes)
NO TE
● indicates a power cable, indicates a signal cable, indicates wireless
communication.
● If the inverter is connected to the FusionSolar app over its built-in WiFi network, only local
commissioning can be performed.
● In the RS485 cascading communication networking, the master inverter model is SUN2000-
(3KTL-20KTL)-M0, and the slave inverter model can be SUN2000-(3KTL-20KTL)-M0,
SUN2000-50KTL/60KTL/65KTL-M0, SUN2000-29.9KTL/36KTL, or SUN2000-33KTL-A.
(A) PV string
(B) DC switch (C) SUN2000
(D) AC switch (E) ACDU (F) Smart Power Sensor
(G) Power grid (H) 4G Smart Dongle (I) WLAN-FE Smart
Dongle
(J) Router (K) FusionSolar
management system
(L) FusionSolar app
(M) Load (N) Ripple Control Device
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 9

Huawei SUN2000 M0 Series Specifications

General

Rated AC Output Power	3000W
European Efficiency	96.7%/97%/97%/97.3%/97.5%/97.8%
Communication	RS485, Wi-Fi
Protection Degree	IP65
Weight	17 kg
Dimensions	440 x 650 x 220 mm
Max. efficiency	98.6%
MPPT voltage range	200-1000V
No. of MPPTs	2
Operating temperature range	-25°C to +60°C
Cooling method	Natural convection
Protection rating	IP65
AC output voltage	230V
