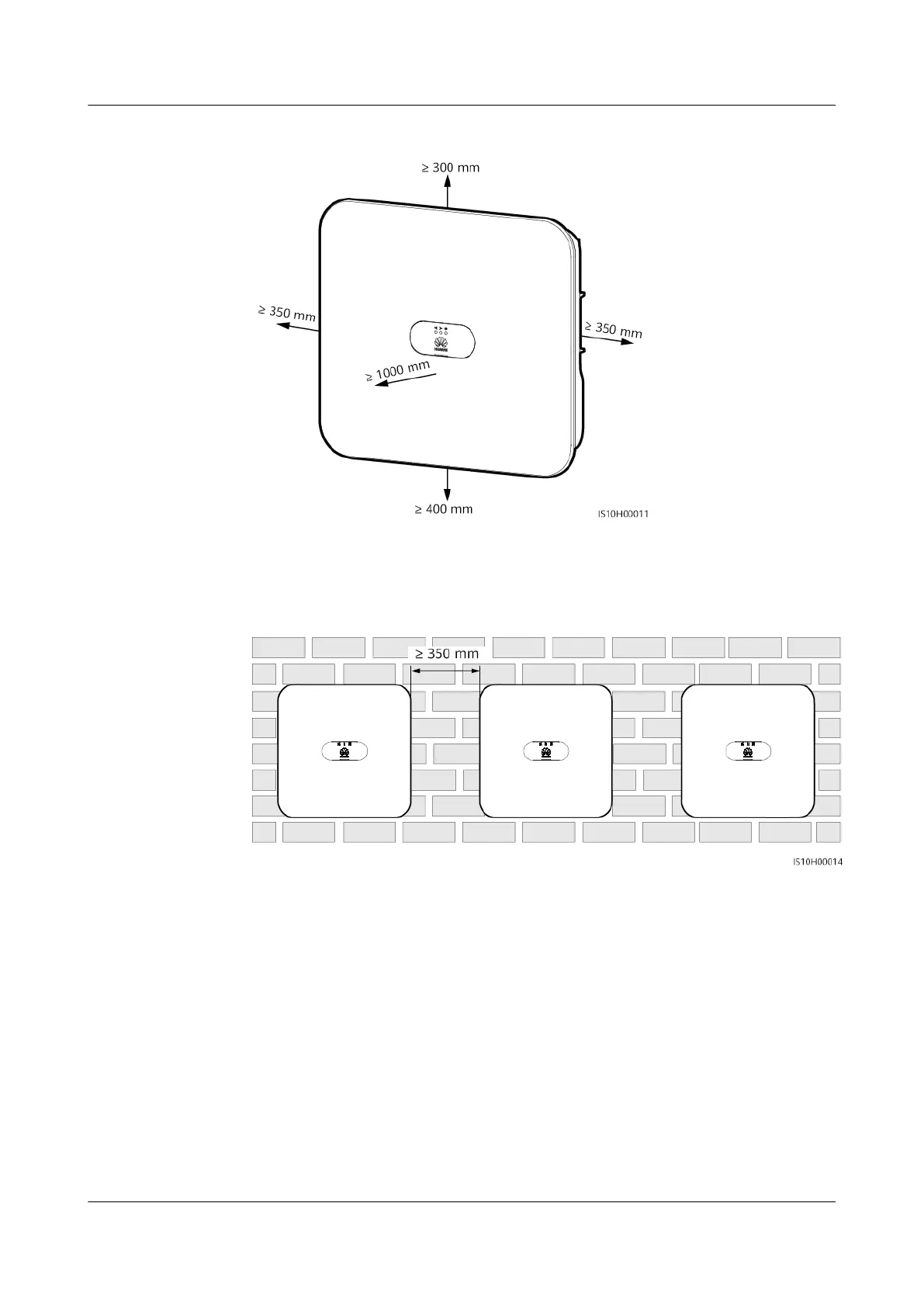

Figure 4-2 Installation space
● When installing multiple SUN2000s, install them in horizontal mode if
sucient space is available and install them in triangle mode if no sucient
space is available. Stacked installation is not recommended.
Figure 4-3 Horizontal installation (recommended)
SUN2000-(3KTL-10KTL)-M0
User Manual 4 Installation
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 22
