NO TICE
● Pay attention not to damage the core wire when stripping a cable.
● The cavity formed after crimping the conductor strip of the OT terminal needs
to wrap the core wire completely. The core wire needs to contact the OT
terminal closely.
● Wrap the wire crimping area with the heat shrink tubing or the PVC insulation
tape. The following
gure uses the heat shrink tubing as an example.
● When using the heat gun, protect devices from being scorched.

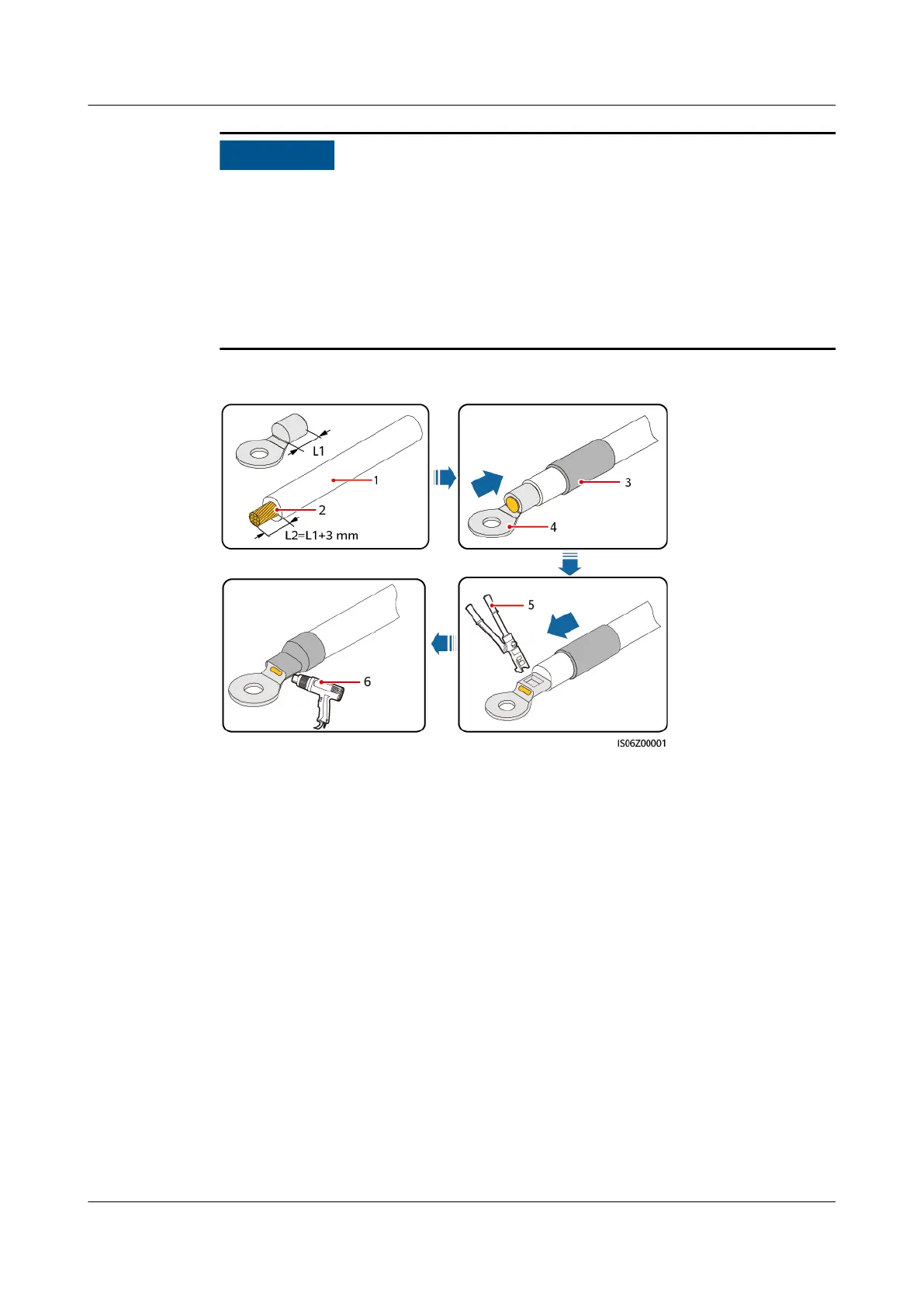

Figure 5-2 Crimping an OT terminal
(1) Cable (2) Core wire (3) Heat shrink tubing
(4) OT terminal (5) Crimping tool (6) Heat gun
Step 2 Connect the PE cable.
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 35

Huawei SUN2000 M0 Series Specifications

General

Rated AC Output Power	3000W
European Efficiency	96.7%/97%/97%/97.3%/97.5%/97.8%
Communication	RS485, Wi-Fi
Protection Degree	IP65
Weight	17 kg
Dimensions	440 x 650 x 220 mm
Max. efficiency	98.6%
MPPT voltage range	200-1000V
No. of MPPTs	2
Operating temperature range	-25°C to +60°C
Cooling method	Natural convection
Protection rating	IP65
AC output voltage	230V
