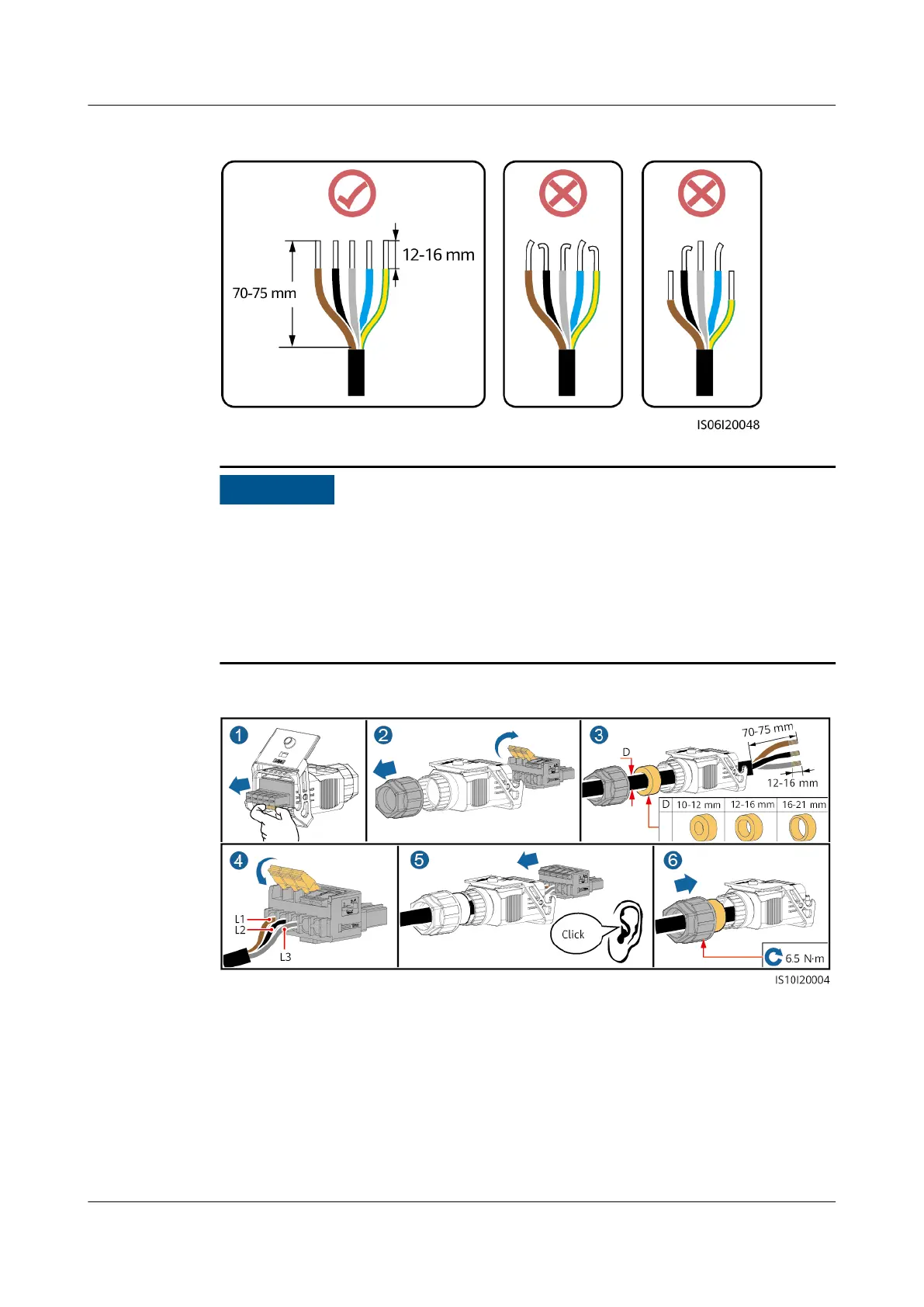

Figure 5-4 Stripping requirements
NO TICE
Ensure that the cable jacket is inside the connector.
Ensure that the exposed core wire is totally inserted into the cable hole.
Ensure that AC terminations provide
rm and solid electrical connections.
Failing to do so may cause SUN2000 malfunction and damage to its AC
connectors.
Ensure that the cable is not twisted.
Figure 5-5 Three-core cable (L1, L2, and L3)
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 37
