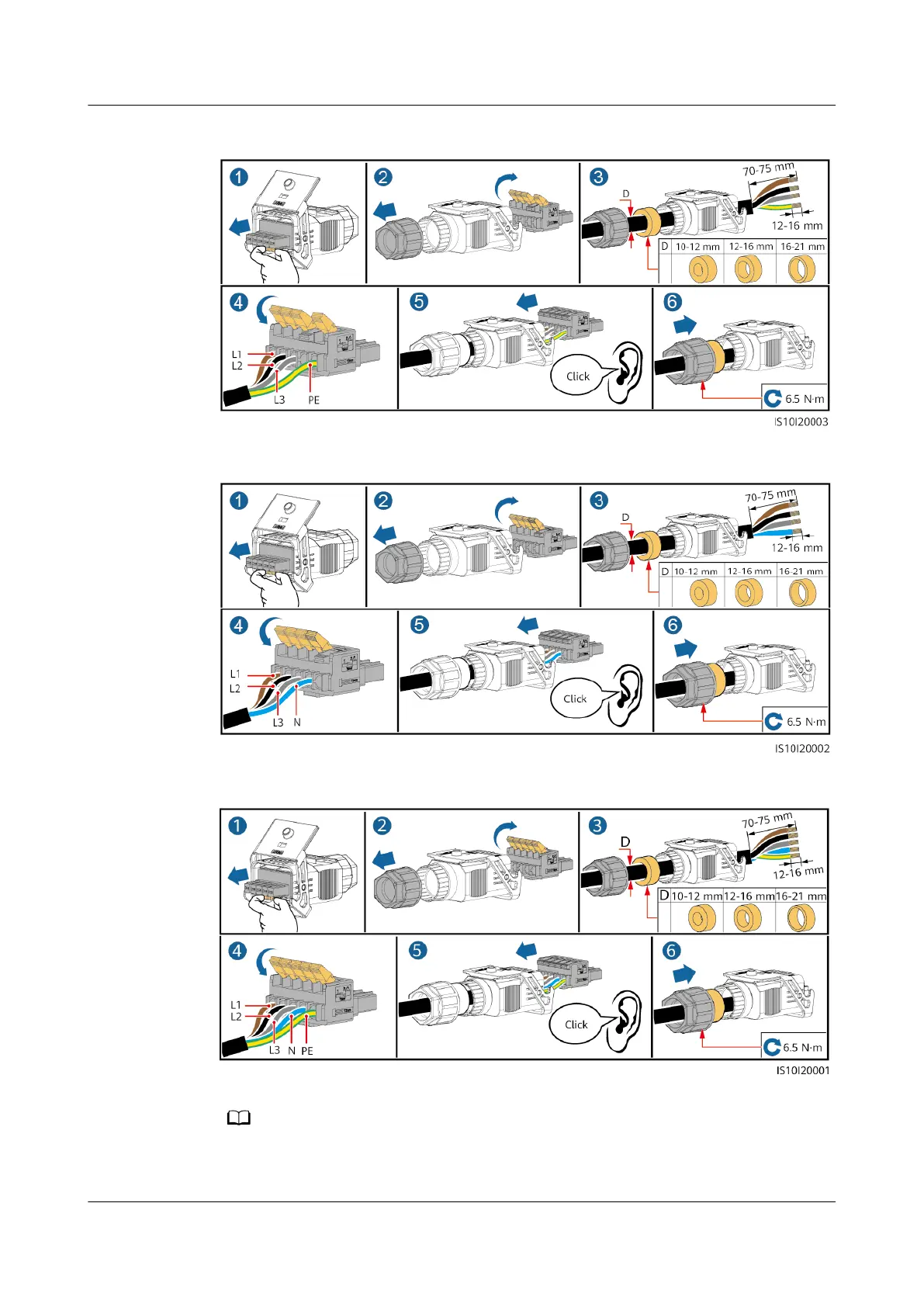

Figure 5-6 Four-core cable (L1, L2, L3, and PE)
Figure 5-7 Four-core cable (L1, L2, L3, and N)
Figure 5-8 Five-core cable (L1, L2, L3, N, and PE)
The cable colors shown in the gures are for reference only. Select an appropriate cable
according to local standards.
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 38
