Terminal Description

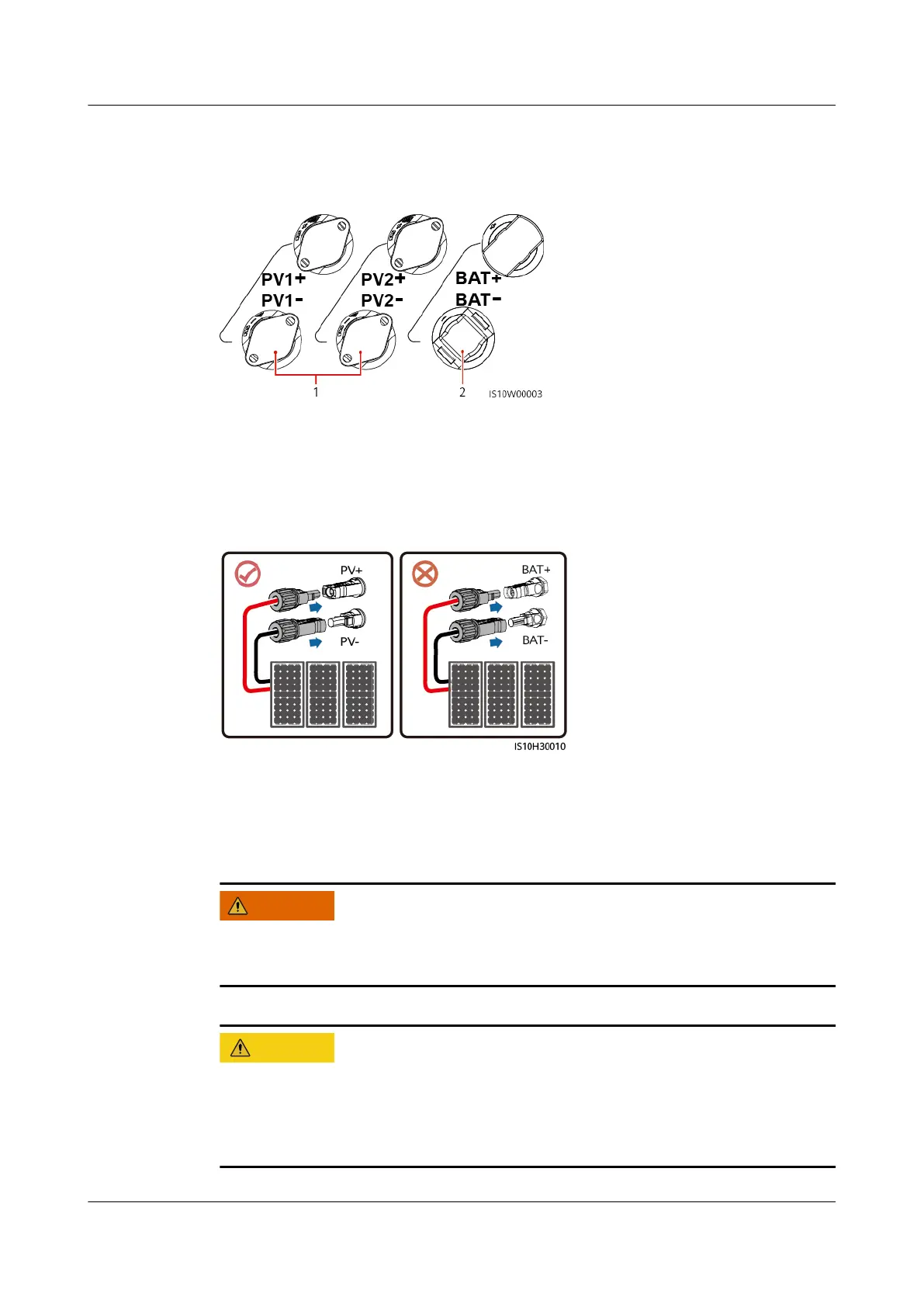

Figure 5-11 Terminals
(1) DC input terminals (2) Battery terminals
Figure 5-12 Correct wiring terminals
Procedure
Step 1 Connect the DC input power cable.
WARNING
Before inserting the positive and negative connectors into the positive and
negative DC input terminals of the SUN2000, check that the DC SWITCH is OFF.
CA UTION
Use the Amphenol Helios H4 PV connectors supplied with the SUN2000. If the PV
connectors are lost or damaged, purchase the connectors of the same model. The
device damage caused by incompatible PV connectors is not covered under any
warranty.
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 41

Huawei SUN2000 M0 Series Specifications

General

Rated AC Output Power	3000W
European Efficiency	96.7%/97%/97%/97.3%/97.5%/97.8%
Communication	RS485, Wi-Fi
Protection Degree	IP65
Weight	17 kg
Dimensions	440 x 650 x 220 mm
Max. efficiency	98.6%
MPPT voltage range	200-1000V
No. of MPPTs	2
Operating temperature range	-25°C to +60°C
Cooling method	Natural convection
Protection rating	IP65
AC output voltage	230V
