Huawei SUN2000 M0 Series User Manual

NO TICE
● Cables with high rigidity, such as armored cables, are not recommended as DC
input power cables, because poor contact may be caused by the bending of the
cables.
● Before assembling DC connectors, label the cable polarities correctly to ensure
correct cable connections.
● After crimping the positive and negative metal contacts, pull the DC input
power cables back to ensure that they are connected securely.
● Insert the crimped metal contacts of the positive and negative power cables
into the appropriate positive and negative connectors. Then pull back the DC
input power cables to ensure that they are connected securely.
● Crimp the metal stamping forming contacts using crimping tool H4TC0003
(Amphenol, recommended), H4TC0002 (Amphenol), PV-CZM-22100 (Staubli),
or PV-CZM-19100 (Staubli). When choosing PV-CZM-22100 or PV-CZM-19100,
do not use the locator. Otherwise metal contacts would be damaged.

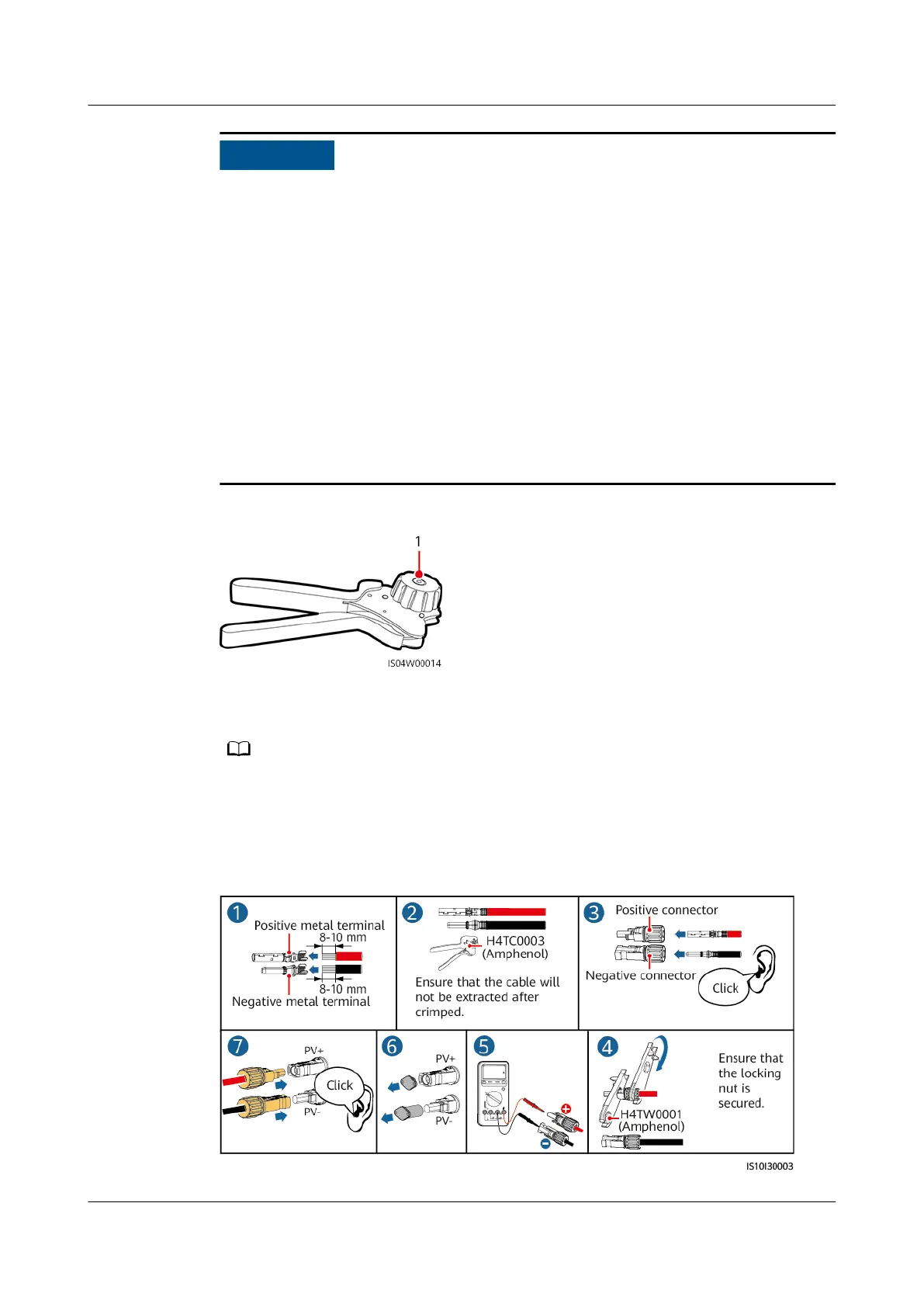

Figure 5-13 Crimping tool (H4TC0003)
(1) Locator
NO TE
● The DC voltage measurement range of the multimeter must be at least 1100 V.
● If the voltage is a negative value, the DC input polarity is incorrect and needs correction.
● If the voltage is greater than 1100 V, too many PV modules congured in the same
string. Remove some PV modules.
Figure 5-14 Connecting the DC input power cable
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 42

Huawei SUN2000 M0 Series Specifications

General

Rated AC Output Power	3000W
European Efficiency	96.7%/97%/97%/97.3%/97.5%/97.8%
Communication	RS485, Wi-Fi
Protection Degree	IP65
Weight	17 kg
Dimensions	440 x 650 x 220 mm
Max. efficiency	98.6%
MPPT voltage range	200-1000V
No. of MPPTs	2
Operating temperature range	-25°C to +60°C
Cooling method	Natural convection
Protection rating	IP65
AC output voltage	230V
