Huawei SUN2000 M0 Series - Installing the Smart Dongle

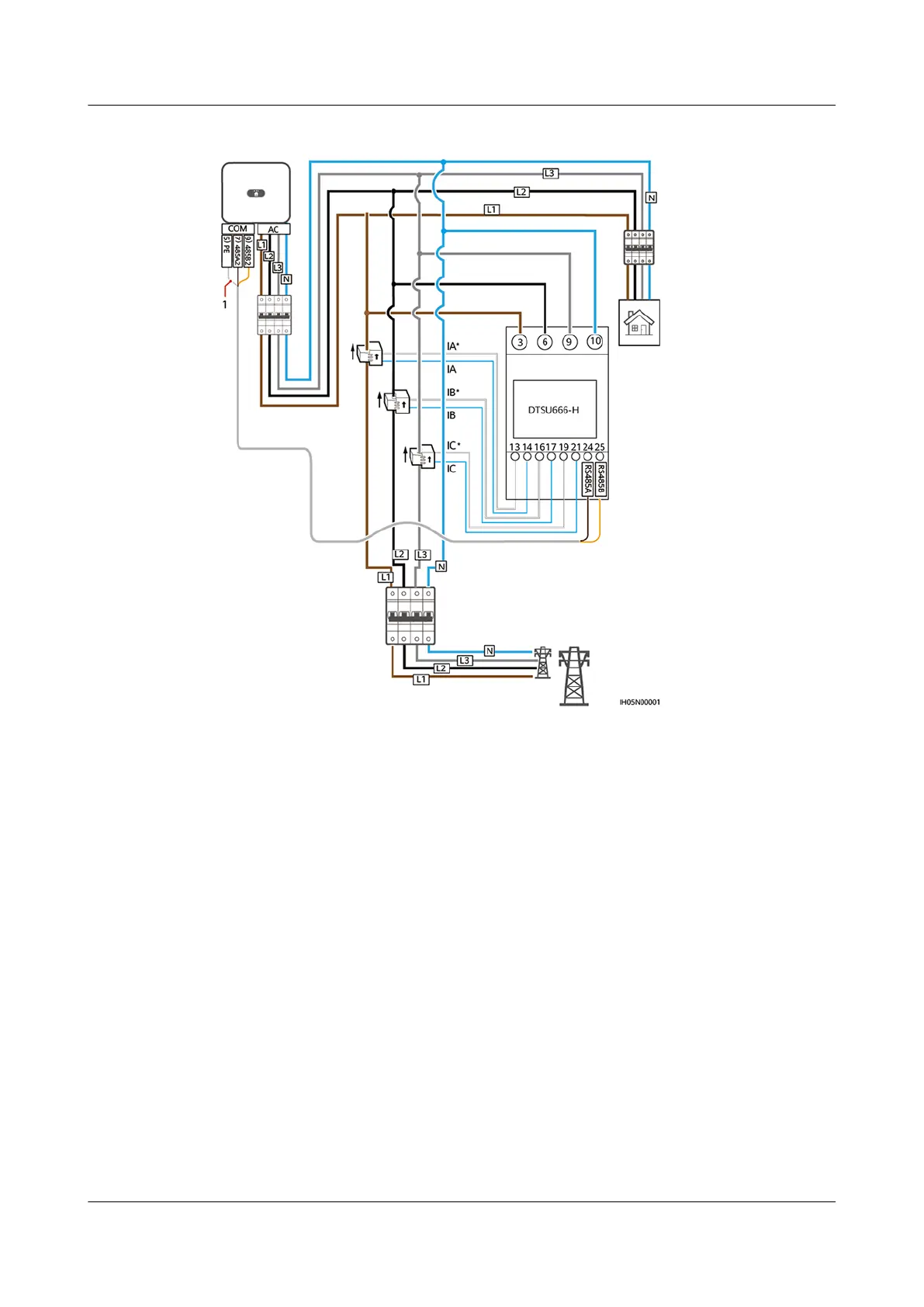

Figure 5-25 Cable connection (Three Phase Four Wire)
(1) Shielding layer of the signal cable
Connecting Only the Smart Power Sensor
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
