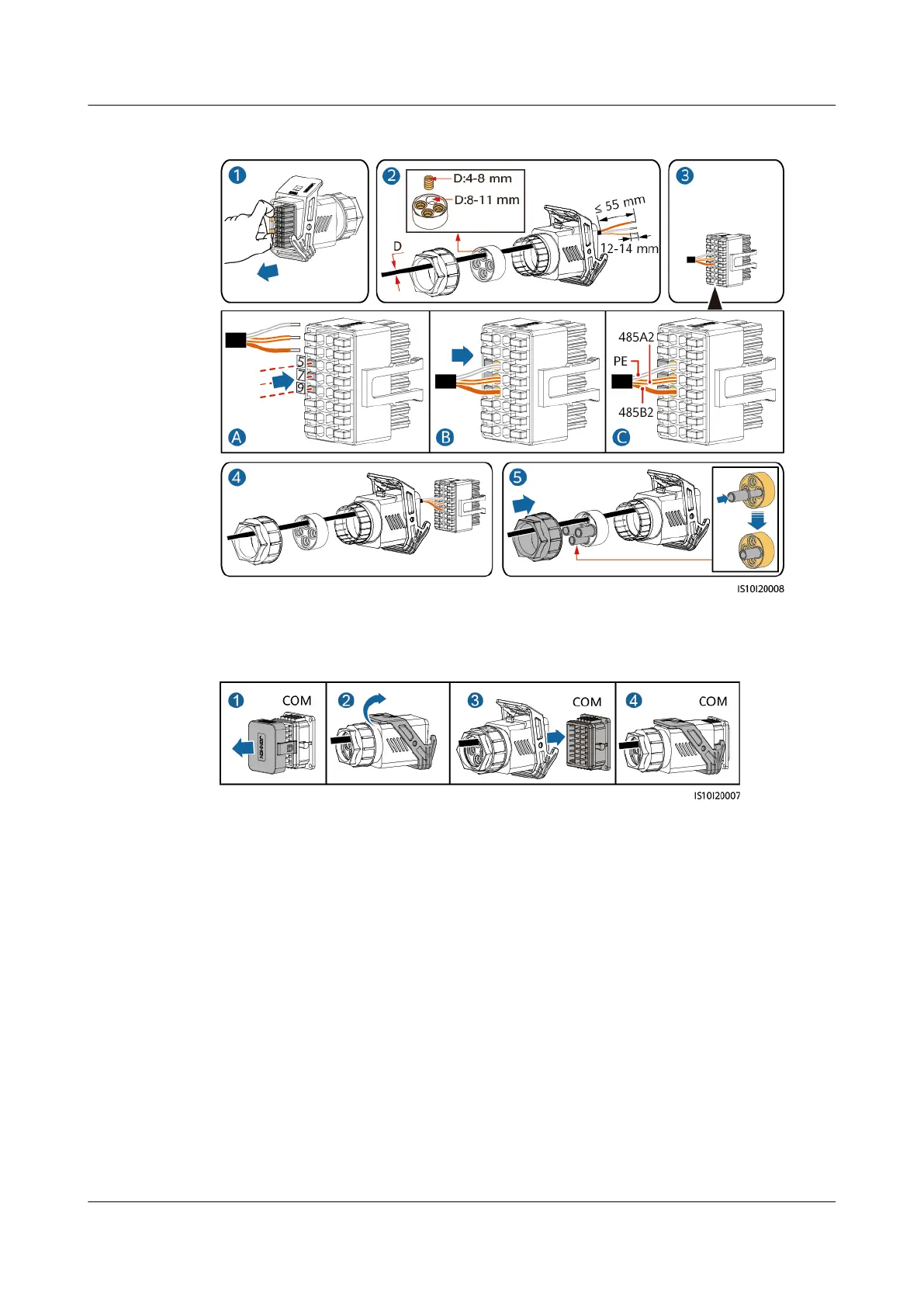

Figure 5-26 Installing the cable
Step 2 Connect the signal cable to the COM port.
Figure 5-27 Securing the signal cable connector
----End
Connecting the Smart Power Sensor and Energy Storage Device
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
