SUN2000L-(4.125KTL, 4.95KTL)-JP
User Manual
4 System Installation
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23

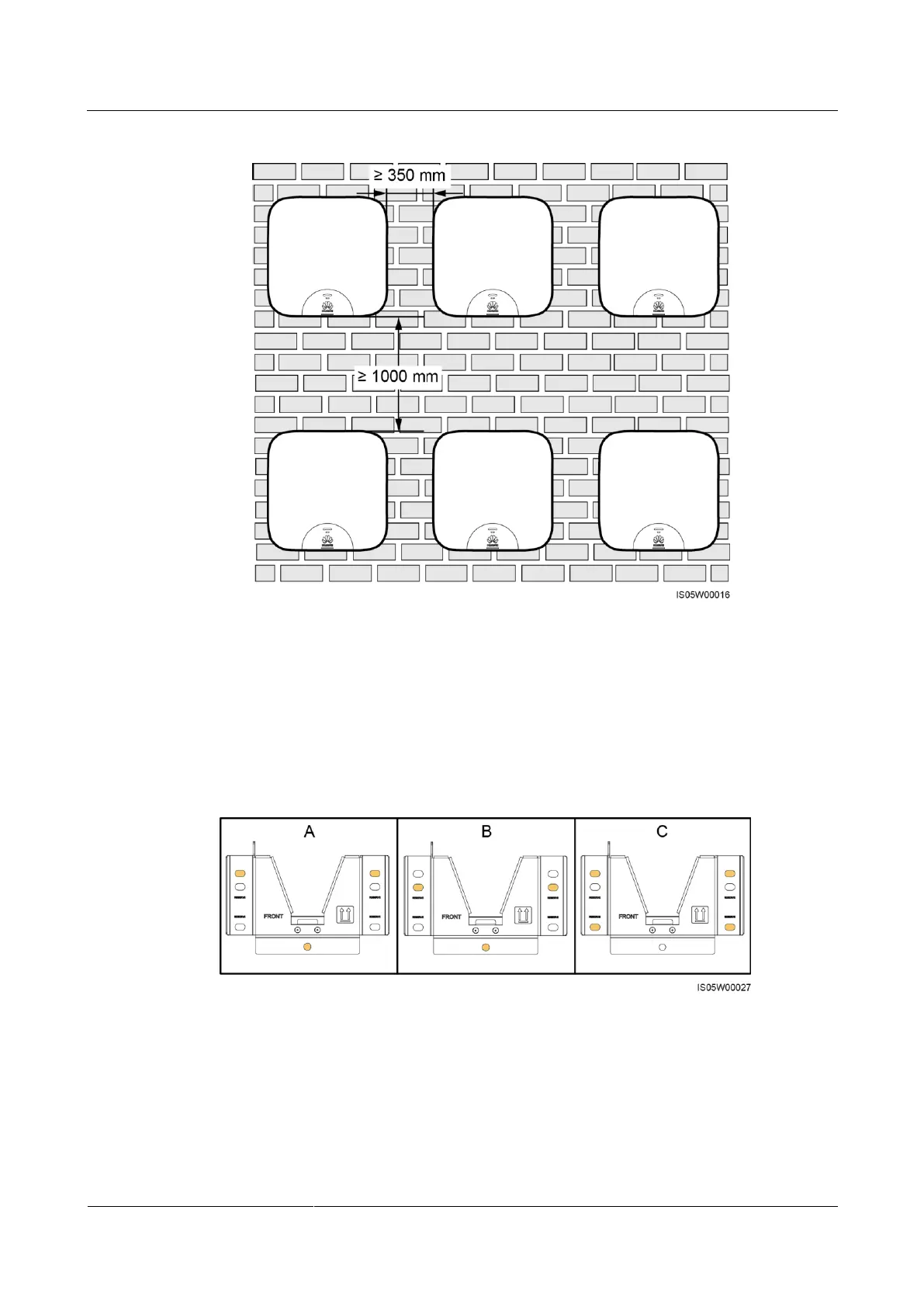

Figure 4-5 Stacked installation mode (not recommended)
4.4 Installing the Mounting Bracket
Fixing holes can be used in three combinations. Select a hole combination based on site
requirements. Combination A is preferred.
Figure 4-6 Hole combinations

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000L Series and is the answer not in the manual?

Huawei SUN2000L Series Specifications

General IconGeneral
Max. DC Voltage600 V
Max. Efficiency98.6%
CoolingNatural Convection
Protection DegreeIP65
Power Output Range2kW - 5kW
Max. AC Power5, 500 VA
Rated AC Voltage220 V / 230 V
European Efficiency98.2%
Operating Temperature Range-25°C to +60°C
Weight10.6 kg
CommunicationRS485
