SUN2000L-(4.125KTL, 4.95KTL)-JP
User Manual
4 System Installation
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26

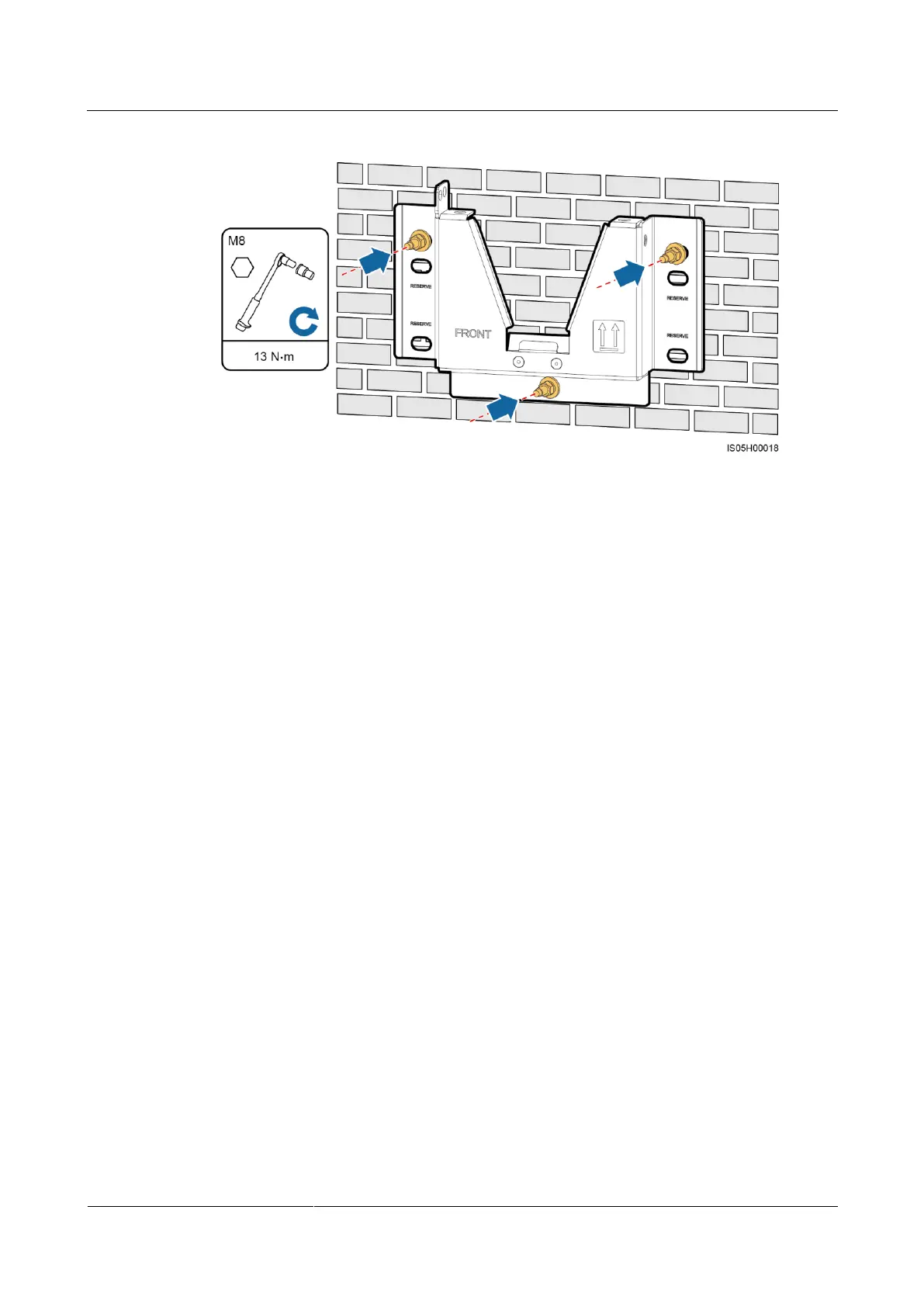

Figure 4-11 Securing a mounting bracket
----End
4.4.2 Support-mounted Installation
Prerequisites
Prepare M8 stainless bolt assemblies (including flat washers, spring washers, and M8 bolts)
with appropriate lengths as well as matched flat washers and nuts based on the support
specifications.
Procedure
Step 1 Determine the positions for drilling holes using the mounting bracket. Level the positions of
mounting holes using a bubble or digital level, and mark the positions with a marker.
