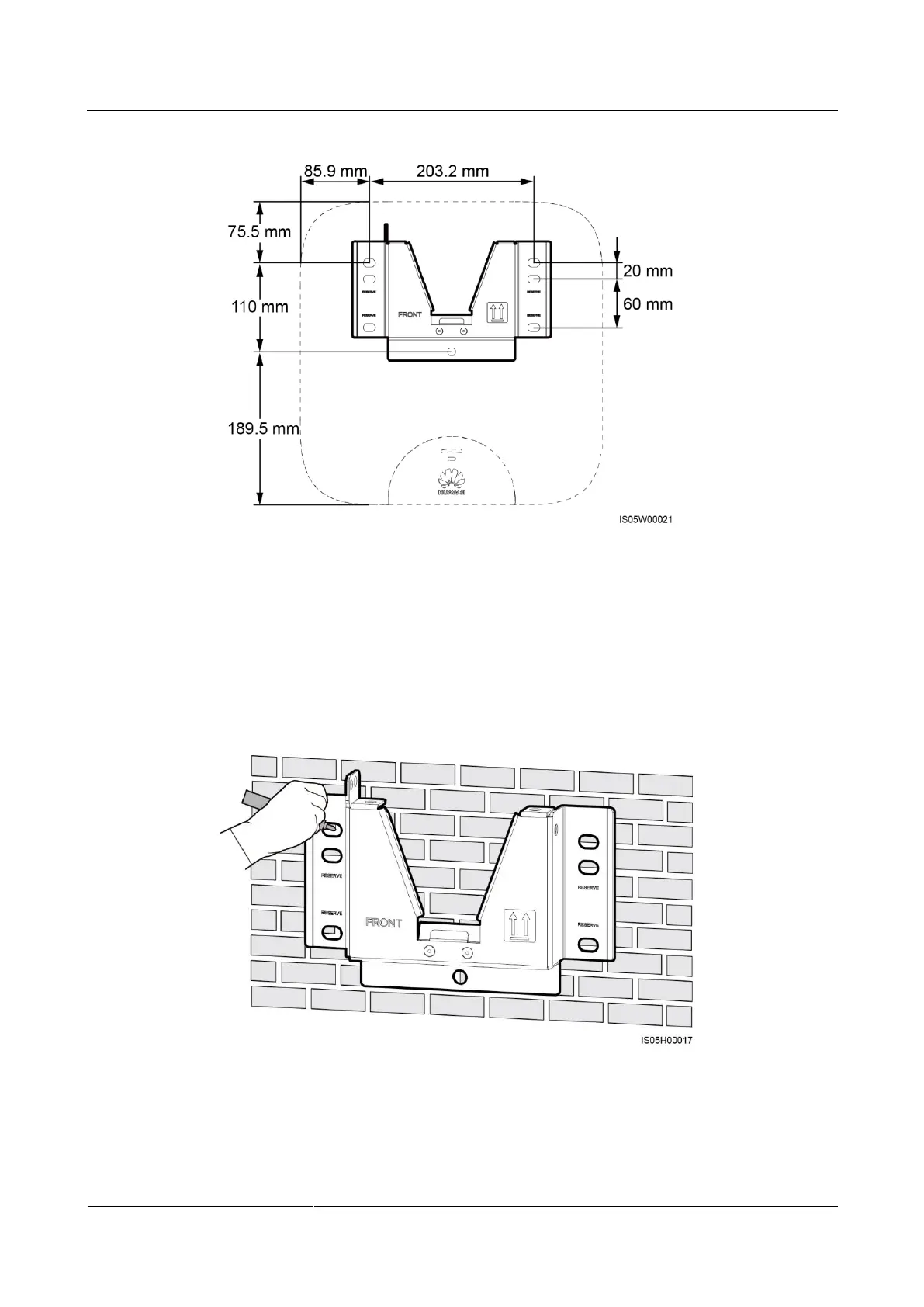

Figure 4-7 Hole distances
4.4.1 Wall-Mounted Installation
Procedure
Step 1 Determine the positions for drilling holes using the mounting bracket. Level the positions of
mounting holes using a bubble or digital level, and mark the positions with a marker.
Figure 4-8 Determining hole positions
Step 2 Install expansion bolts.
