SUN2000L-(4.125KTL, 4.95KTL)-JP
User Manual
4 System Installation
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
25
Avoid drilling holes in the utility pipes and/or cables attached to back of the wall.
If the M8x80 expansion bolt supplied with the SUN2000L is not long enough, prepare M8 stainless steel
expansion anchor bolts.

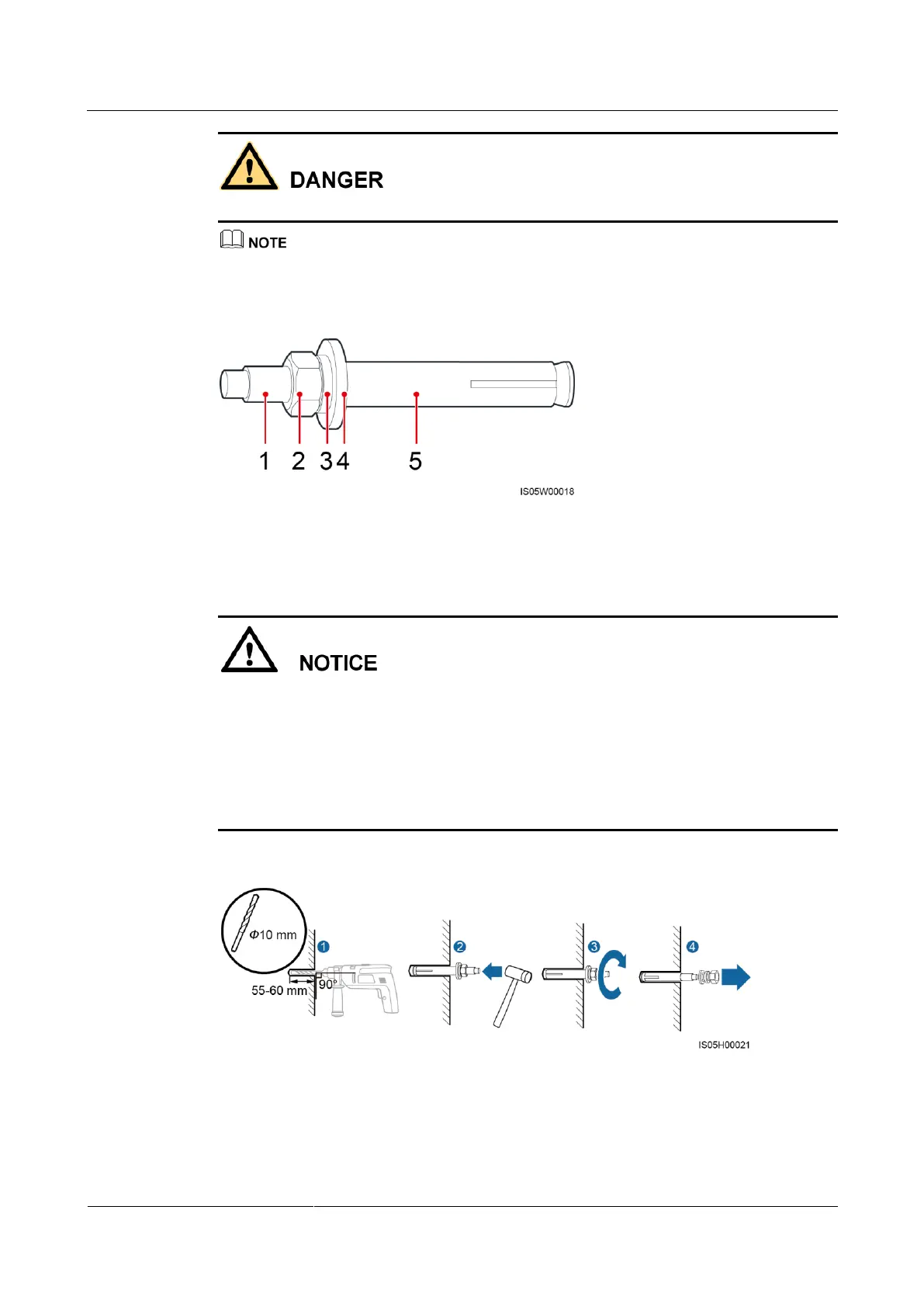

Figure 4-9 Expansion bolt composition
(1) Bolt
(2) Nut
(3) Spring washer
(4) Flat washer
(5) Expansion sleeve
To prevent dust inhalation or contact with eyes, wear safety goggles and an anti-dust
respirator when drilling holes.
Clean up any dust in and around the holes using a vacuum cleaner and measure the
distance between holes. If the holes are inaccurately positioned, drill new set of the holes.
Level the head of the expansion sleeve with the concrete wall after removing the bolt,
spring washer, and flat washer. Otherwise, the mounting bracket will not be securely
installed on the concrete wall.
Figure 4-10 Installing an expansion bolt
Step 3 Secure the mounting bracket.
