SUN2000L-(4.125KTL, 4.95KTL)-JP
User Manual
5 Electrical Connections
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
40

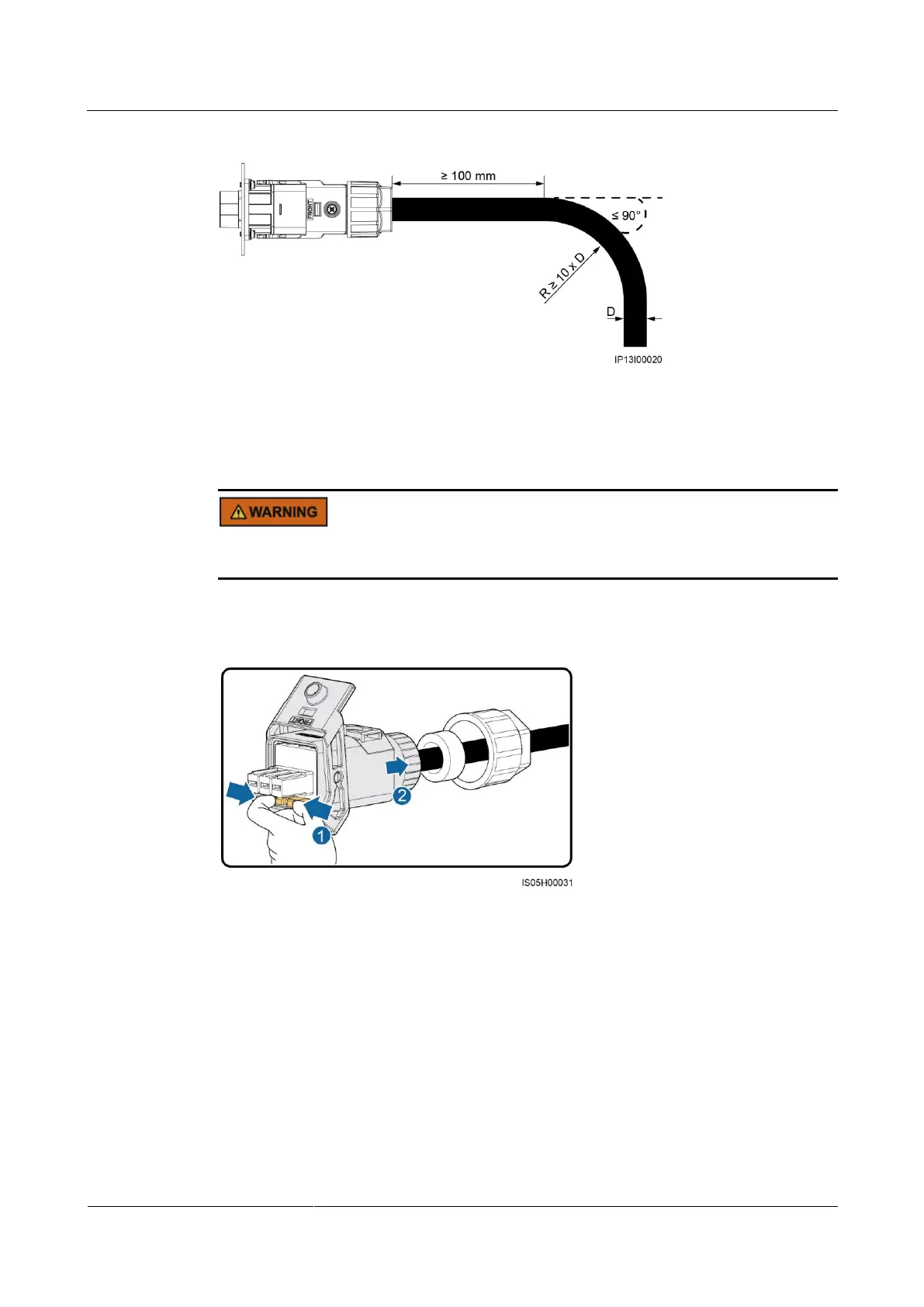

Figure 5-8 Cable route
----End
Follow-up Procedure
Before removing the AC connector, ensure that the DC switch at the bottom of the SUN2000L
and all the switches connecting to the SUN2000L are OFF.
To remove the AC connector from the SUN2000L, perform the operations in reverse order.
Figure 5-9 Removing a plug insert
5.4 Installing the DC Input Power Cable
Prerequisites

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000L Series and is the answer not in the manual?

Huawei SUN2000L Series Specifications

General IconGeneral
Max. DC Voltage600 V
Max. Efficiency98.6%
CoolingNatural Convection
Protection DegreeIP65
Power Output Range2kW - 5kW
Max. AC Power5, 500 VA
Rated AC Voltage220 V / 230 V
European Efficiency98.2%
Operating Temperature Range-25°C to +60°C
Weight10.6 kg
CommunicationRS485
