Huawei SUN2000L Series User Manual

SUN2000L-(4.125KTL, 4.95KTL)-JP
User Manual
5 Electrical Connections
Issue 03 (2018-04-11)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
38
Procedure
Step 1 Connect the AC output power cable to the AC connector.

Ensure that the cable jacket is inside the AC connector.

Ensure that the exposed core wire is totally inserted into the cable hole.

Ensure that AC terminations provide firm and solid electrical connections. Failing to do so
may cause SUN2000L malfunction and damage to its AC connectors.

Ensure that the cable is not twisted.

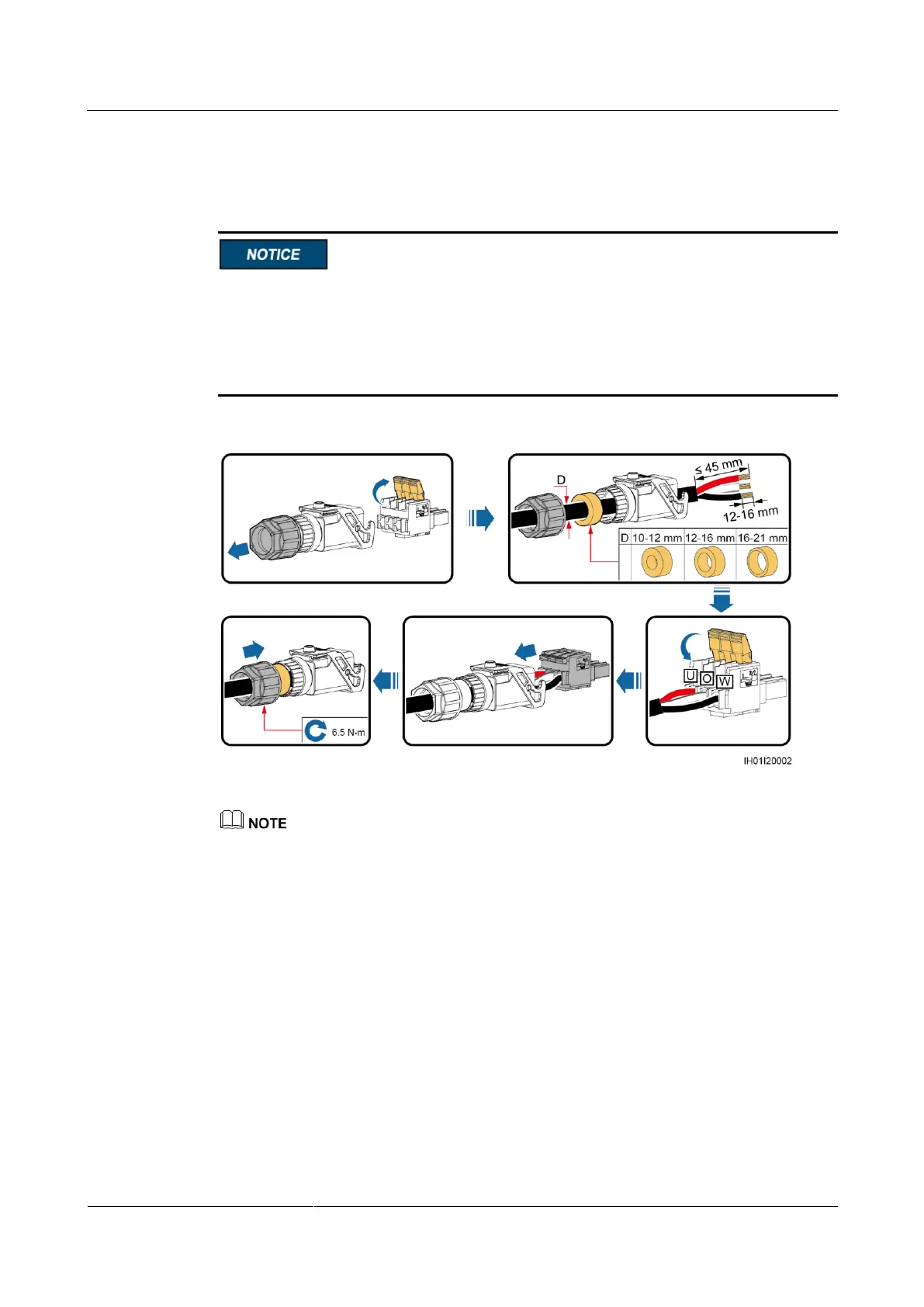

Figure 5-5 Assembling an AC connector

The cable colors shown in figures are for reference only. Select an appropriate cable according to the
local standards.

For the core wire installation method and stripped length, see the instructions on the side of the plug
insert.

Huawei SUN2000L Series Specifications

General

Max. DC Voltage	600 V
Max. Efficiency	98.6%
Cooling	Natural Convection
Protection Degree	IP65
Power Output Range	2kW - 5kW
Max. AC Power	5, 500 VA
Rated AC Voltage	220 V / 230 V
European Efficiency	98.2%
Operating Temperature Range	-25°C to +60°C
Weight	10.6 kg
Communication	RS485
