Huawei SUN2000L Series User Manual

SUN2000L-(4.125KTL, 4.95KTL)-JP
User Manual
5 Electrical Connections
Issue 03 (2018-04-11)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48
Procedure
Step 1 Connect signal cables to appropriate signal connectors.

The protection layer of the cable is in the connector. Surplus core wires are cut off from
the protection layer.

Ensure that the exposed core wire is totally inserted into the cable hole.

Ensure that the signal cables are connected securely.

Ensure that the cable is not twisted.

If a connector needs to connect to only one signal cable, block the unused cable hole on
the seal using a cap and tighten the cable gland.

If a connector needs to connect to two signal cables, ensure that the cables have the same
outer diameter.

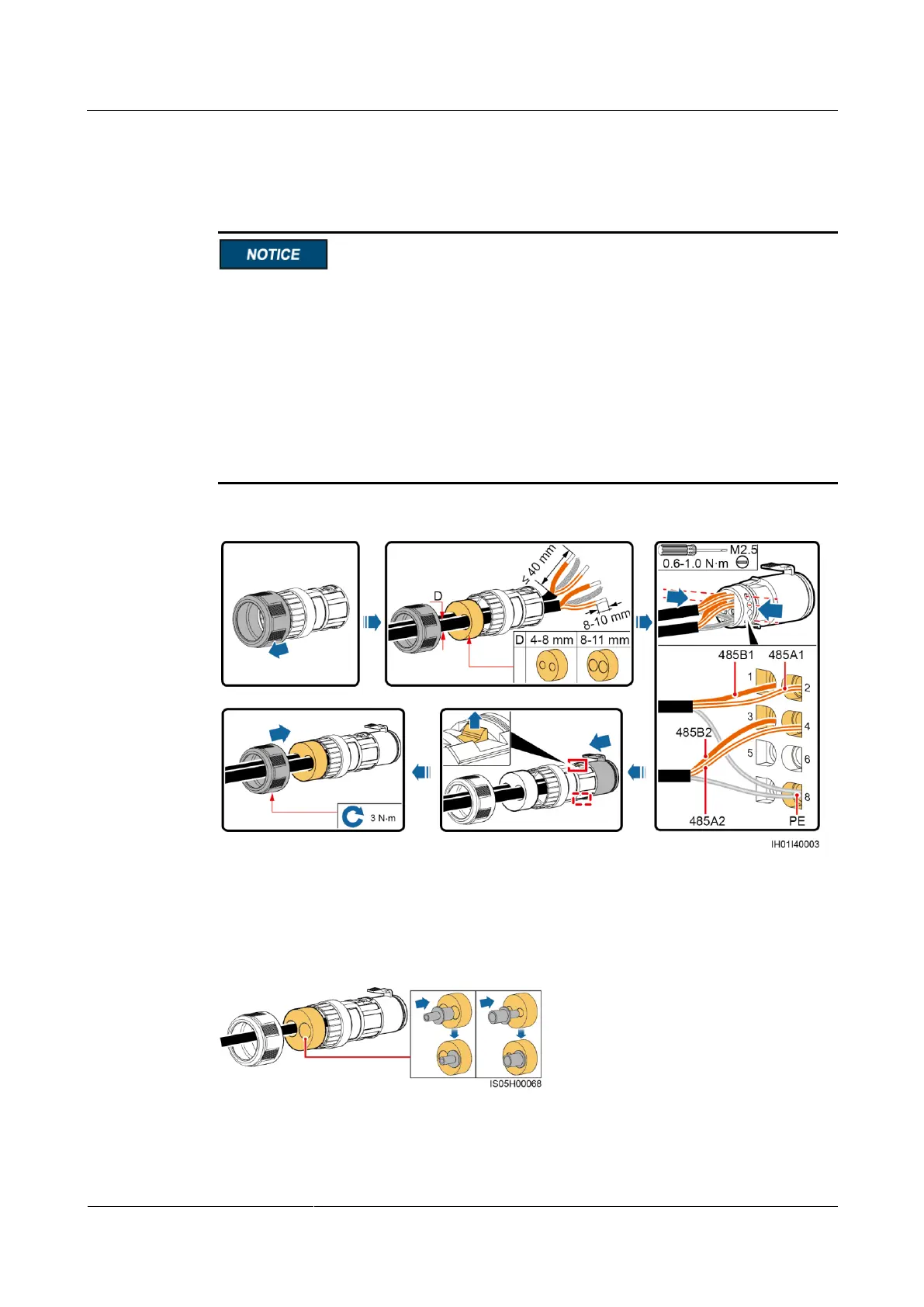

Figure 5-18 Assembling a signal connector
If only one signal cable needs to be connected, block the unused cable hole on the seal using a
cap and tighten the cable gland.
Figure 5-19 Blocking a cable hole
Step 2 Connect the plug to the corresponding port.

Huawei SUN2000L Series Specifications

General

Max. DC Voltage	600 V
Max. Efficiency	98.6%
Cooling	Natural Convection
Protection Degree	IP65
Power Output Range	2kW - 5kW
Max. AC Power	5, 500 VA
Rated AC Voltage	220 V / 230 V
European Efficiency	98.2%
Operating Temperature Range	-25°C to +60°C
Weight	10.6 kg
Communication	RS485
