Humminbird ONIX User Manual

147

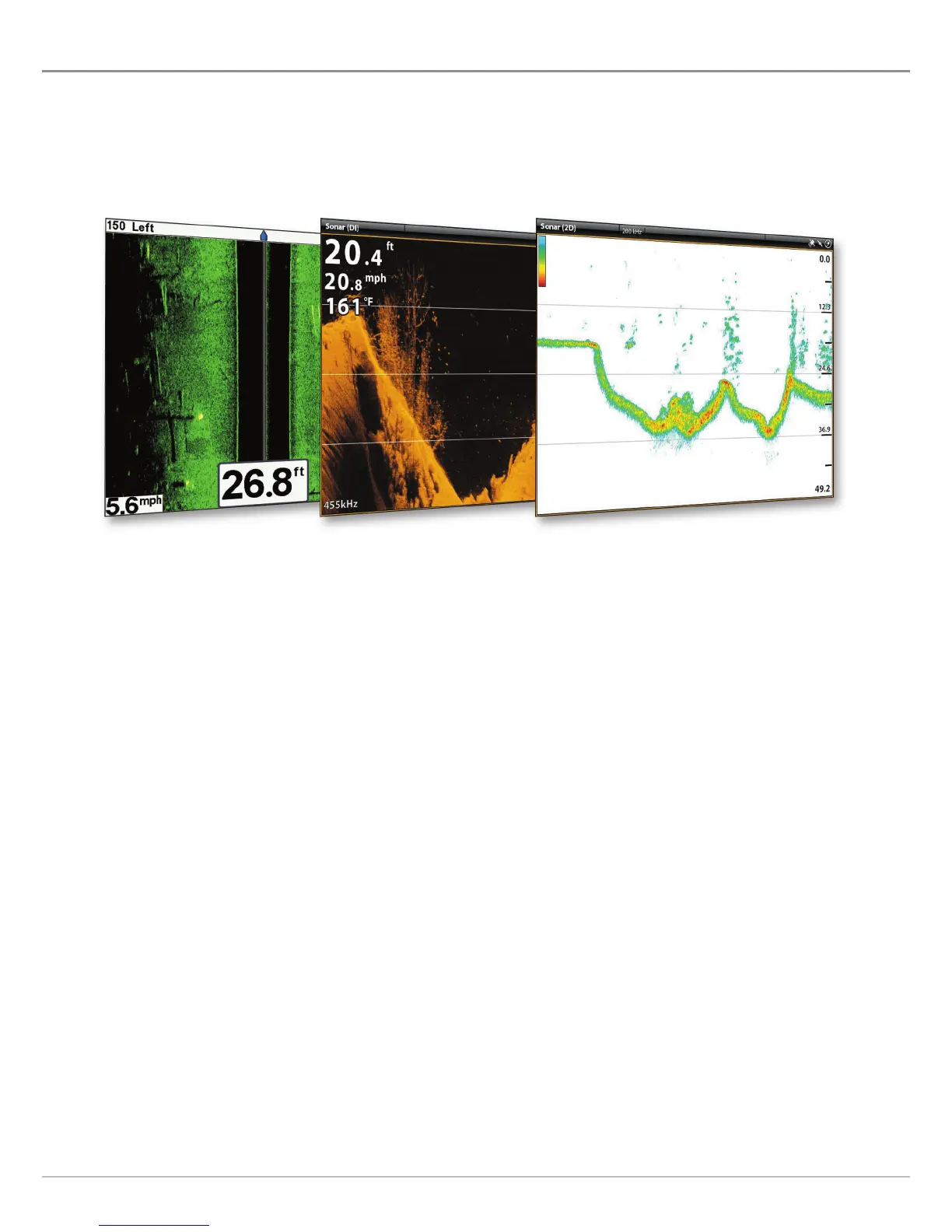

Sonar Overview
SONAR SET UP
The available sonar views on the control head are determined by the connected transducer and the selected transducer source. The
selected transducer must be pinging to enable the views.
When you connect a transducer to a black box sonar or to the ONIX control head, the transducer will be detected in the network
automatically. The best transducer source will be chosen and will start pinging automatically. To manually select a transducer
source, see Set up your Humminbird Network.

Humminbird ONIX Specifications

General

Networking	Ethernet
Waterproof Rating	IPX7
Waypoints	3000
Power Output	500W (RMS)
Frequency	50/83/200 kHz
GPS Receiver	Internal
