Humminbird ONIX User Manual

49
Instrument View
SET UP AN INSTRUMENT VIEW
T
he ONIX and ION control heads provide Instrument Views in a variety of combinations to display on-screen. You can use the standard
D
ashboard Instrument View or Engine Instrument View. You can also customize the gauges, data boxes, and ranges.
NOTE: The data boxes and gauges must have input from connected and powered equipment. The Engine Instrument View must
have input from a NMEA 2000 network to provide source data. For more information about sources and networking, see
Installation Information, Set up your NMEA 2000 Network, and Set up your Humminbird Network.
Display an Instrument View
Touch Screen
1. Press the HOME key.
2. Select the Views tool.
3. Under Groups, select Instrument.
4. Tap an Instrument View.
5. Tap Instrument in the status bar.
6. Select Dashboard or Engine.
Keypad
1. Press the HOME key.
2. Select the Views tool.
3. Under Groups, select Instrument.
4. Use the Joystick to select an Instrument View.
5. Press the MENU key.
6. Select Dashboard or Engine.

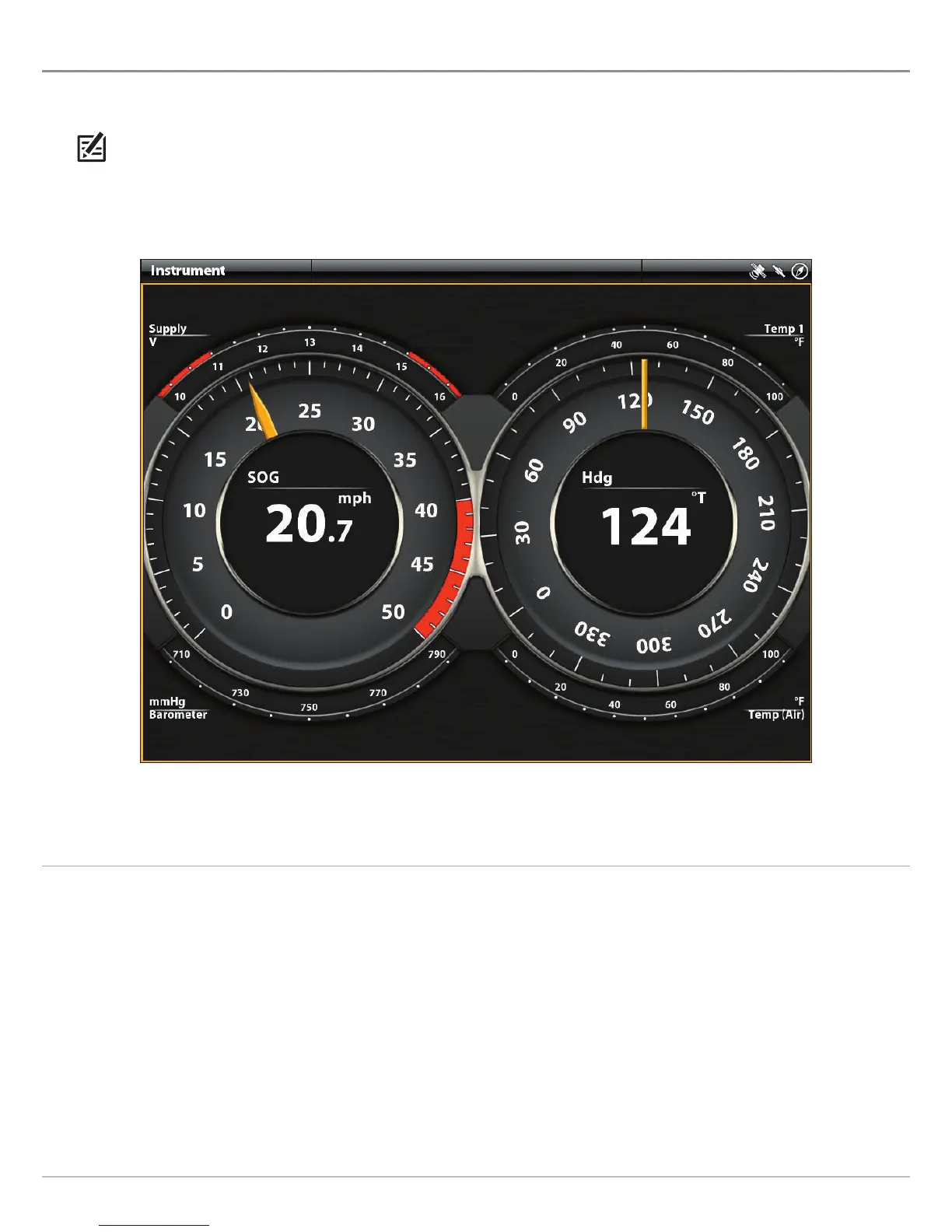

Instrument View: Dashboard

Humminbird ONIX Specifications

General

Networking	Ethernet
Waterproof Rating	IPX7
Waypoints	3000
Power Output	500W (RMS)
Frequency	50/83/200 kHz
GPS Receiver	Internal
