50
Instrument View
Customize an Instrument View
In an Instrument View, you can customize the gauges, data boxes, and ranges. You can change each item in the same way you
change data boxes in a view. You can also set up warning limits for the selected data range.
NOTE: The available changes and sources are determined by the selected gauge or data box. As you change data, the available
sources are displayed in white, and the unavailable sources are displayed in black.

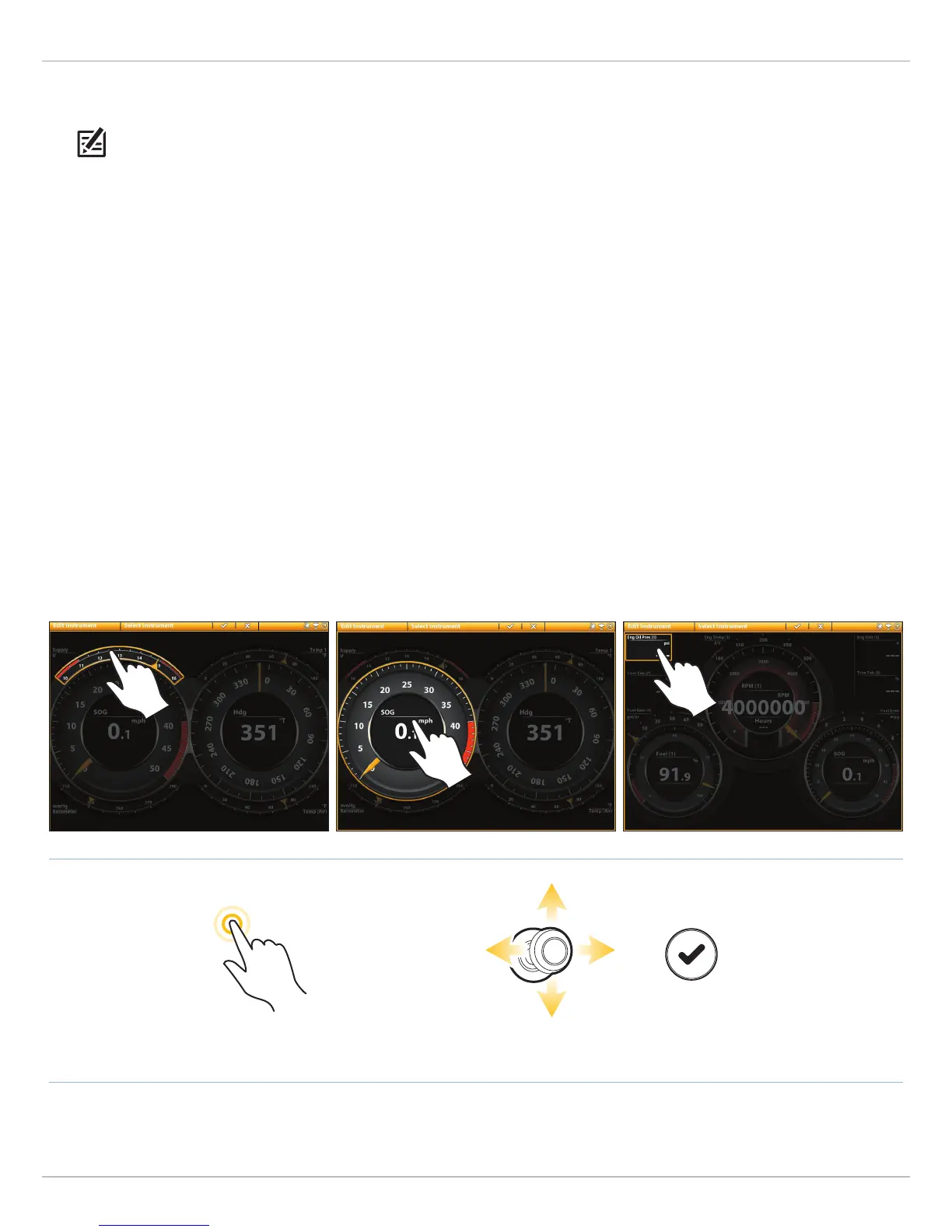

Press and Hold Select Open
OR
Selecting a Radial Gauge Selecting a Gauge Selecting a Data Box
Touch Screen
1. With an Instrument View displayed on-screen, tap
Instrument in the status bar.
2. Select Edit Instrument.
3. Press and hold a gauge or data box.
4. Tap the check mark in the status bar.
5. Change the Type of Data: Select Data Type. Select a
category and a data type from the menus.
6. Change the Displayed Range: Select Data Limits.
Select a range from the list.
Set the Warning(s) Threshold: Select a warning (if
available), and tap the on/off button to turn it on. Press
and hold the slider to set the warning threshold.
7. Close: Press and hold the EXIT key.
Keypad
1. With an Instrument View displayed on-screen, press
the MENU key.
2. Select Edit Instrument.
3. Use the Joystick to select a gauge or data box. Press
the ENTER key.
4. Change the Type of Data: Select Data Type. Select a
category and a data type from the menus.
5. Change the Displayed Range: Select Data Limits.
Select a range from the list.
Set the Warning(s) Threshold: Select a warning (if
available), and press the ENTER key to turn it on. Turn
the Rotary dial to set the warning threshold.
6. Close: Press and hold the EXIT key.
