Chart Options
Set the Chart Orientation
Use the Preferences menu to change the chart orientation. You can also select the Chart Orientation Menu on the status bar.
1. From the Preferences menu, select Orientation.
2. Select an orientation to apply to the chart.
Head Up
(compass or GPS required)
The vessel’s current heading points up, and the chart rotates around the vessel icon so that
it always points up on the view. The heading is provided by the connected compass/heading
sensor. If a compass is not connected, the vessel will be oriented according to the COG
(Course Over Ground).
North Up
The chart is oriented with North up on the display, and the vessel rotates according to its
heading or COG (Course Over Ground).
COG Up
The chart is displayed with the vessel oriented in a fixed position pointing up, and the chart
rotates according to the vessel COG (Course over Ground).
Course Up
During navigation, the intended course or route leg is shown at the top of the view. Objects
ahead of the vessel are drawn above the vessel. When the vessel is not navigating, the
current heading is displayed.
Chart Orientation
Press and hold the slider, or turn the Rotary dial, to rotate the chart angle. The chart angle
you set will point up on the view.

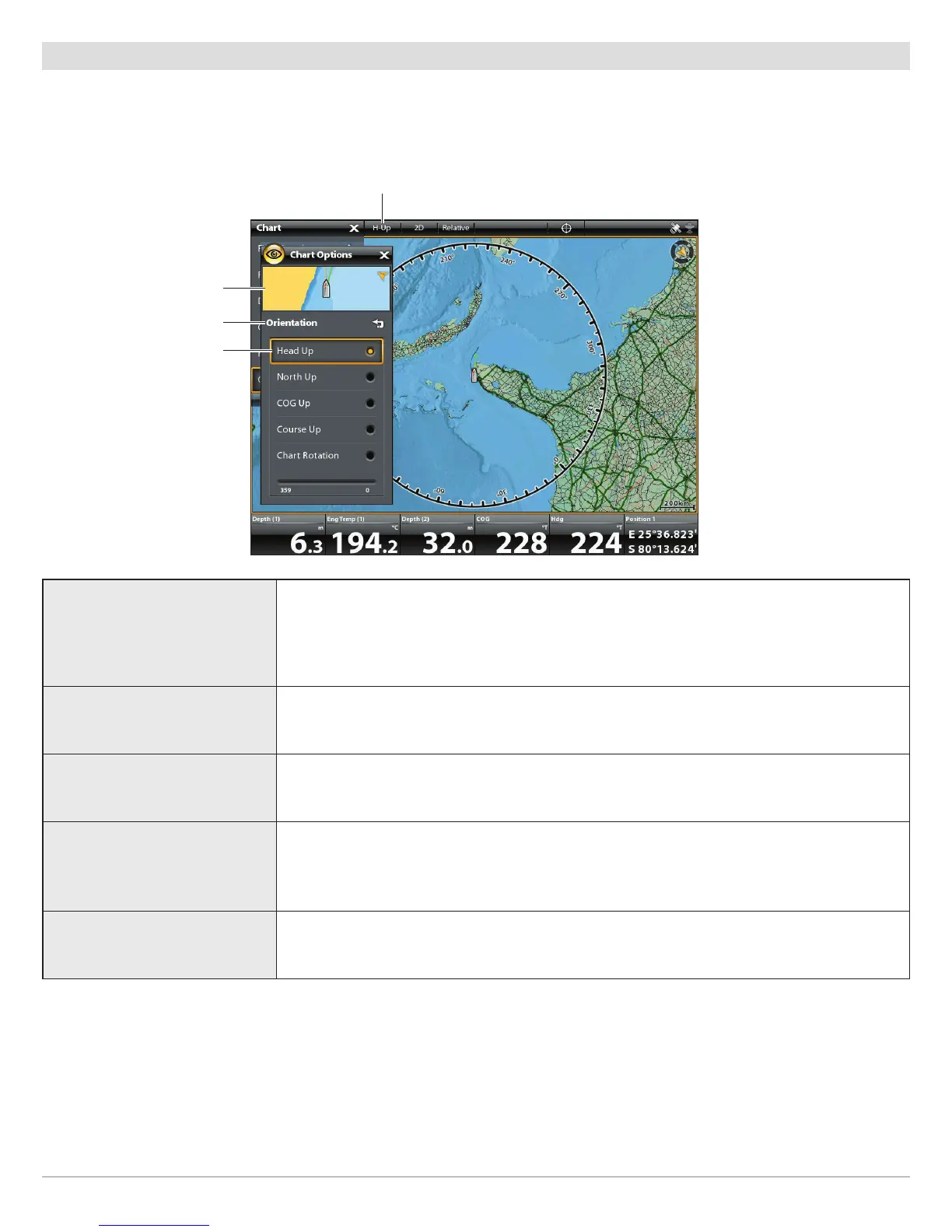

chart orientation setting
preview window
menu
selection
