Installing Modules

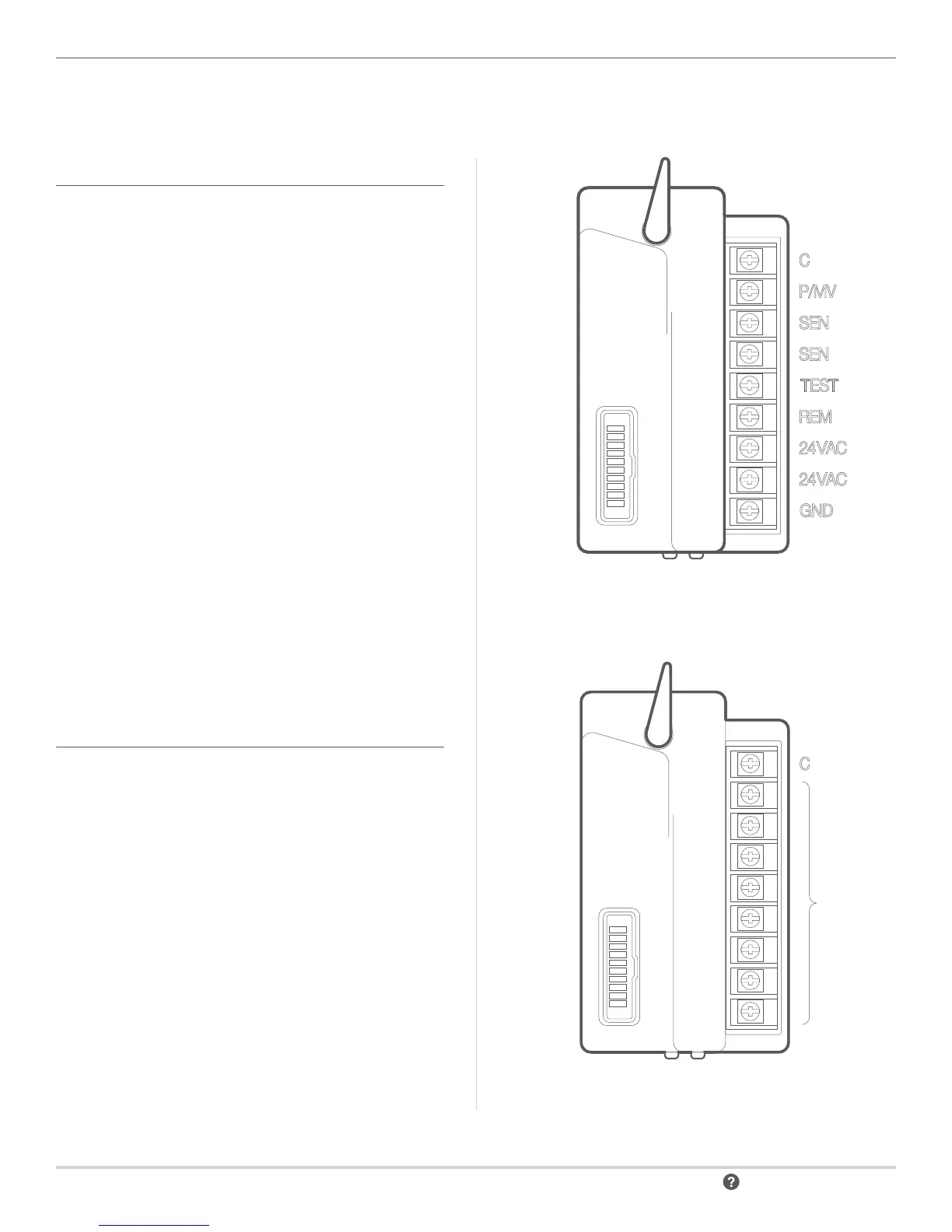

POWER MODULES
1. Locking Lever: Flip up to remove or install module, or ip
down to lock module into place.
2. C (Common Wire Connection): Makes common connection
for P/MV and/or station wiring.
3. P/MV (Pump/Master Valve Connection): Up to 0.56 A for
Master Valve or Pump Start Relay activation.
4. SEN (x2) Sensor Input: Standard inputs for Hunter
normally-closed Clik sensors and/or Solar Sync sensor.
5. Test 24 VAC (always on): Used to test and locate valve
wires.
6. REM (Remote Control Input): Pre-wired to Hunter
SmartPort™ connector for use with Hunter ROAM and/or
ROAM XL remotes.
7. 24VAC (x2) Transformer Connection: Connects 24 VAC
yellow wires from transformer. Also used to power Hunter
sensor modules and receivers.
8. GND: Connects green safety ground wire from
transformer.
9. Ribbon Cable Connection: Connects controller to
control panel.
10. Installation Tabs: Tip module and insert these tabs into
station output slot.
STATION MODULES
11. Locking Lever: Flip up to remove or install module, or ip
down to lock module into place.
12. C (Common Wire Connection): Makes common
connections for station wiring.
13. Station Terminals: Numbered connections for each 24 VAC
station output wire to valves. ICM400 has four, ICM800
has eight, and ICM2200 has 22 station output terminals.
14. Installation Tabs: Tip module and insert these tabs into
station output slot.
Station Modules (ICM-800 shown)
