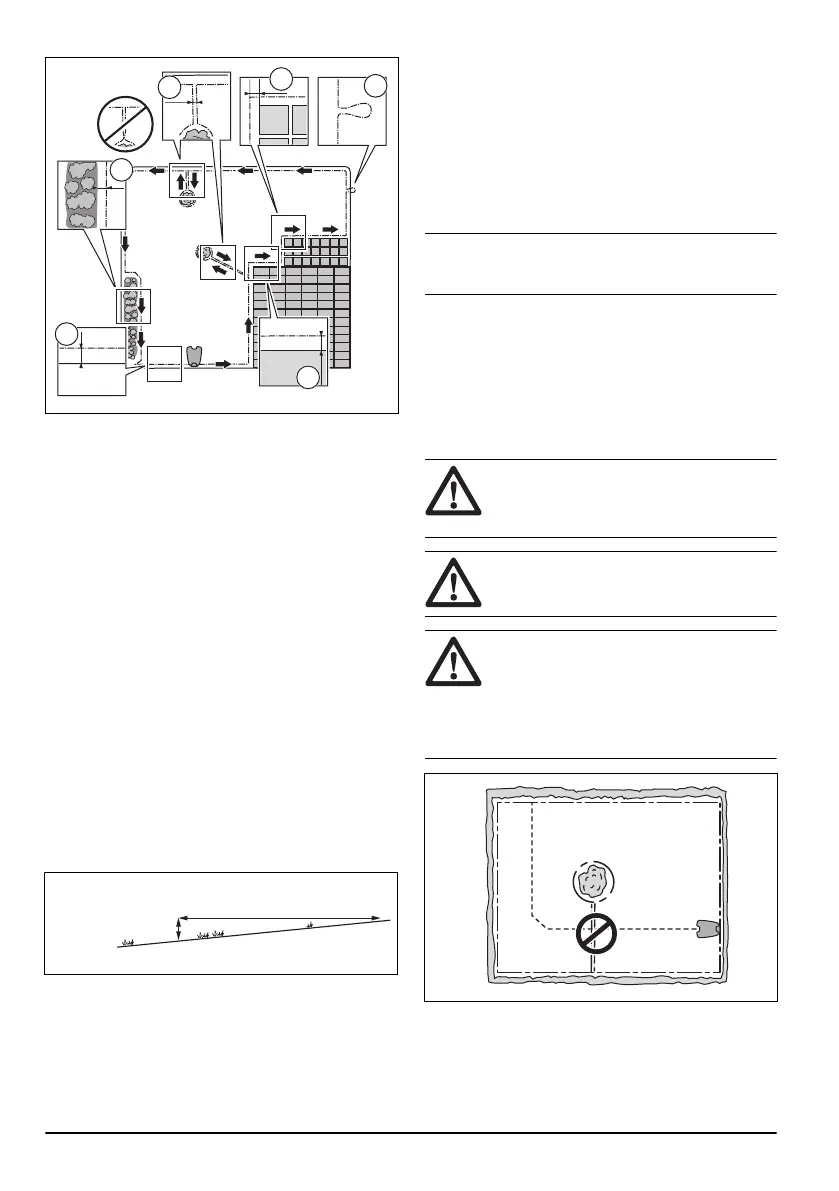

a) Put the boundary wire 35 cm / 14 in. (B) from
an obstacle that is more than 3 cm / 1.2 in.
high.
b) Put the boundary wire 30 cm / 12 in. (C) from
an obstacle that is 1-3 cm / 0.4-1.2 in. high.
c) Put the boundary wire 10 cm / 4 in. (D) from
an obstacle that is less than 1 cm / 0.4 in.
high.
• If you have a paving stone path that is in level with
the lawn, put the boundary wire below the paving
stone.
• If you make an island, put the boundary wire that
goes to and from the island near together (E).
Refer to
To make an island on page 14
.
• Make an eyelet (F) where the guide wire is to be
connected to the boundary wire. This makes the
connection easier between the guide wire and the
boundary wire. Make the eyelet with approximately
20 cm / 8 in. of the boundary wire.
3.4.3.1 To put the boundary wire in a slope
The product can operate in 30% slopes. Slopes that are
too steep must be isolated with the boundary wire. The
gradient (%) is calculated as the vertical height divided
by the horizontal distance. Example: 10 cm / 100 cm =
10%.
• For slopes steeper than 30% inside the work area,
isolate the slope with boundary wire.
• For slopes steeper than 20% along the outer edge
of the lawn, put the boundary wire 20 cm / 8 in. (A)
from the edge.
• For slopes adjacent to a public road, put a barrier
of minimum 15 cm / 6 in. along the outer edge of
the slope. You can use a wall or a fence as a
barrier.
3.4.3.2 Passages
A passage is a section that has boundary wire on each
side and that connects 2 parts of the work area. The
distance between the boundary wire on each side in the
passage must be a minimum of 60 cm / 24 in.
Note: If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
The recommended minimum distance between the
guide wire and the boundary wire is 30 cm / 12 in. The
product always runs to the left of the guide wire as seen
facing the charging station. It is recommended to have
as much free area as possible to the left of the guide
wire (A).
3.4.3.3 To make an island
CAUTION: Do not put a section
of boundary wire across the other. The
sections of boundary wire must be parallel.
CAUTION: Do not put the guide wire
across the boundary wire.
CAUTION: Isolate or remove obstacles
that are less than 15 cm / 5.9 in. in height.
Isolate or remove obstacles that slope
slightly, for example, stones, trees or roots.
This will prevent damage to the blades of the
product.
To make an island, isolate areas in the work area with
the boundary wire. We recommend to isolate all stable
objects in the work area.
14
- Installation with wire 2369 - 001 - 05.02.2024
