64
Setup procedures
Set the follow
ing parameters on the HLM-1 an
d
HRK.
①

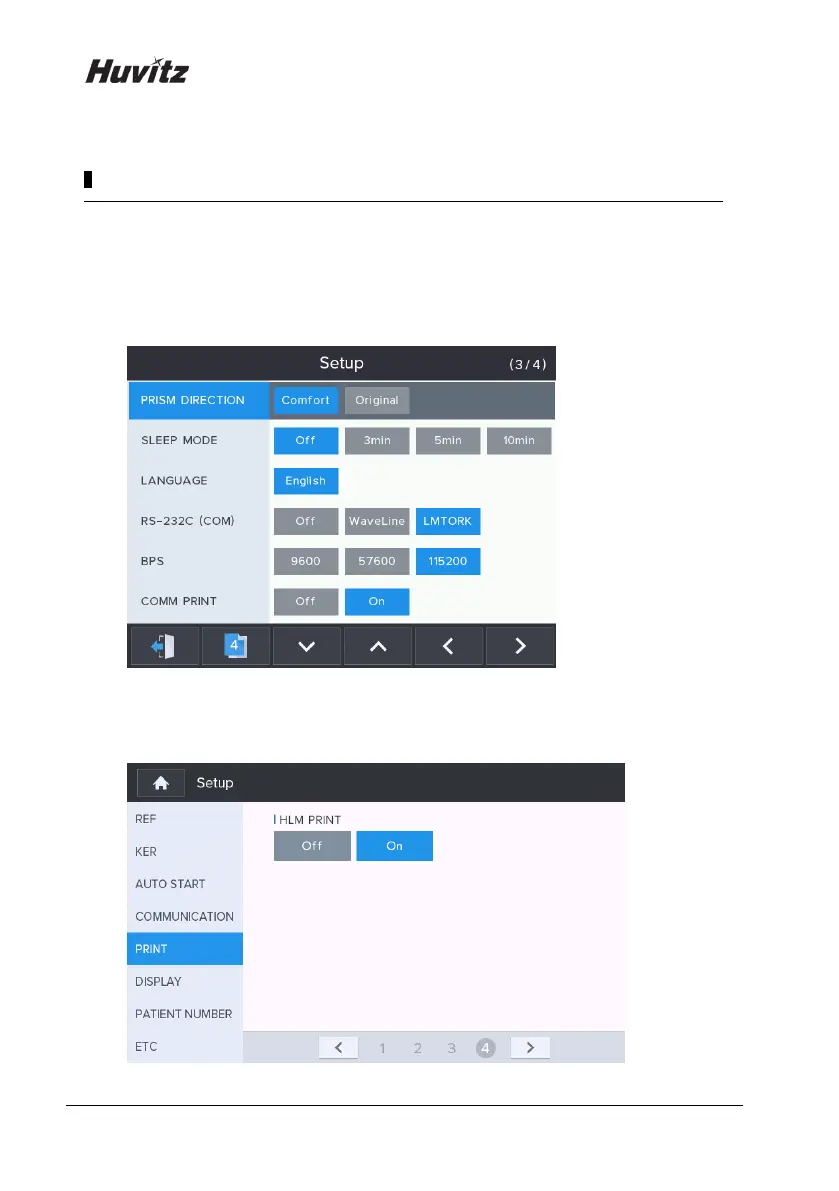

Set the
following
parameters re
lated to communications on
the HLM
-1.
-
RS
-232C (COM
): LMTOR
K, BPS: 1
15200, COMM PRINT
: On
②
Set the follow
ing parameters on the
HRK
.
- HLM PRINT
: On
63
