Installation and Maintenance Manual
67
Hydraulic Motor W/FTGS (2)
222 X1, 444 XS: HMOMO K24 WRS
All others: HMOMO K10 ERS
Motor Mount Pin
and Retaining Bolt
MSLDU 012 SSK (2)
Motor Mount Arm
Upper: MSLDU 042 T
Lower: MSLDU 042 B
Heater Location
(Optional)
Limit Switch (2)
ESWLS 222 ST (with cord)
ESWLS 224 (switch only)
Drive Wheels
222 EX, X1& 444 series: MSLDW 008 HY
All others: MSLDW 006 HY
Wheel Clamping Assembly
MSLDU 070 CAST
10 Ga Steel Chassis
Pressure
Gauge
"E" Manifold
HMAMA 222 BVK
Electric Motor
On/Off Switch - ESWDI 050 3P
Controller Board
ESR00018 SA - AC models
or
ESR00018 SD - DC models
AWOG with Manifold (EX, X1, CX 444 only)
Power Units are Detailed by
Operator Series on next two pages
Display Board - ESR00019
Power Supply
ESR00016 AC - AC models
or
ESR00016 DC - DC models
Transformer 75 VA - ETRTR 024 075
3 Hydralic Hose Kit
HSFHO 222 K
Custom Detector
EECDE HY5A
Box Detector
EECDE A24 DS3
Buzzer
ESR00021
Inherent Sensor
HPSPS 001

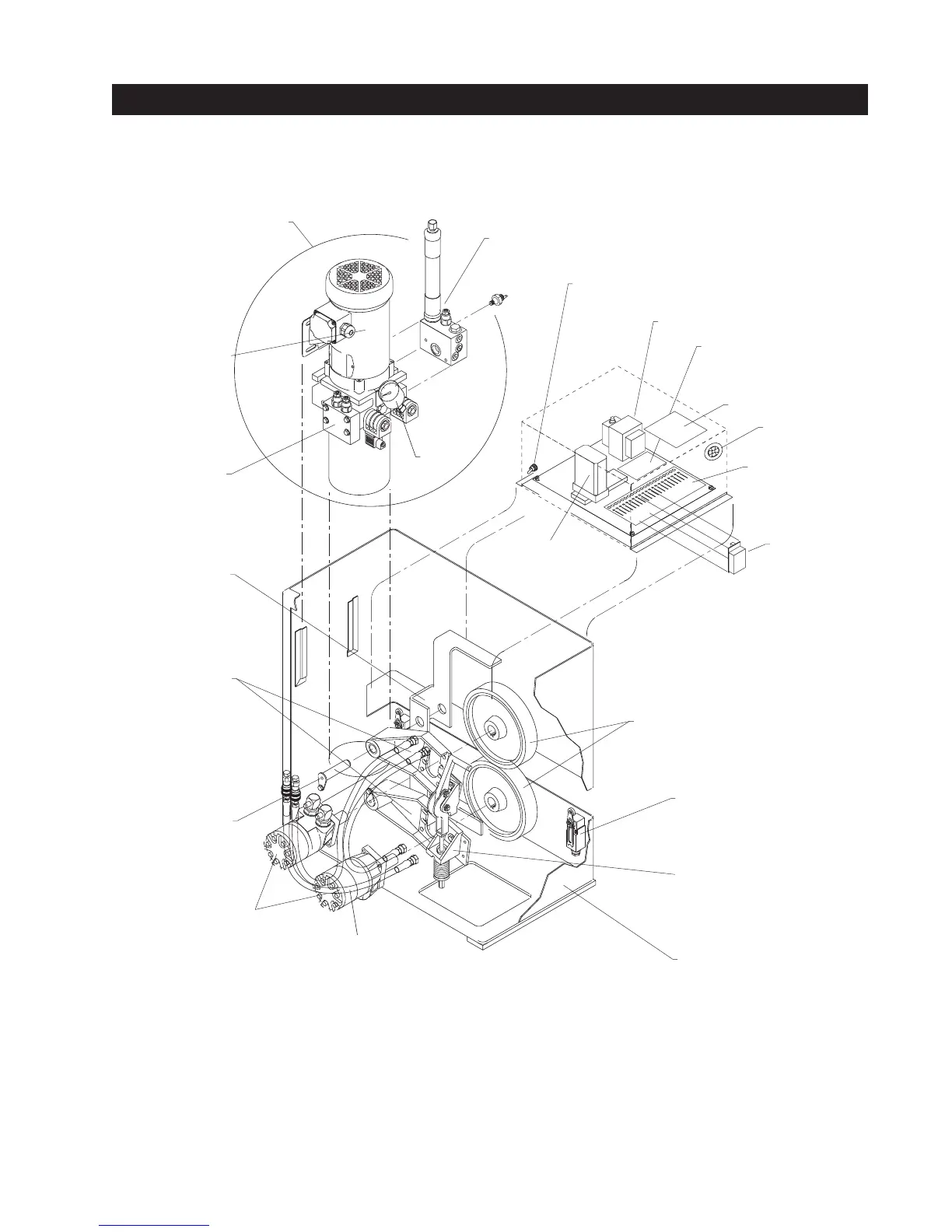

Exploded Parts Breakout
To Next Page
