Installation and Maintenance Manual
68
Parts Breakout- Control Box

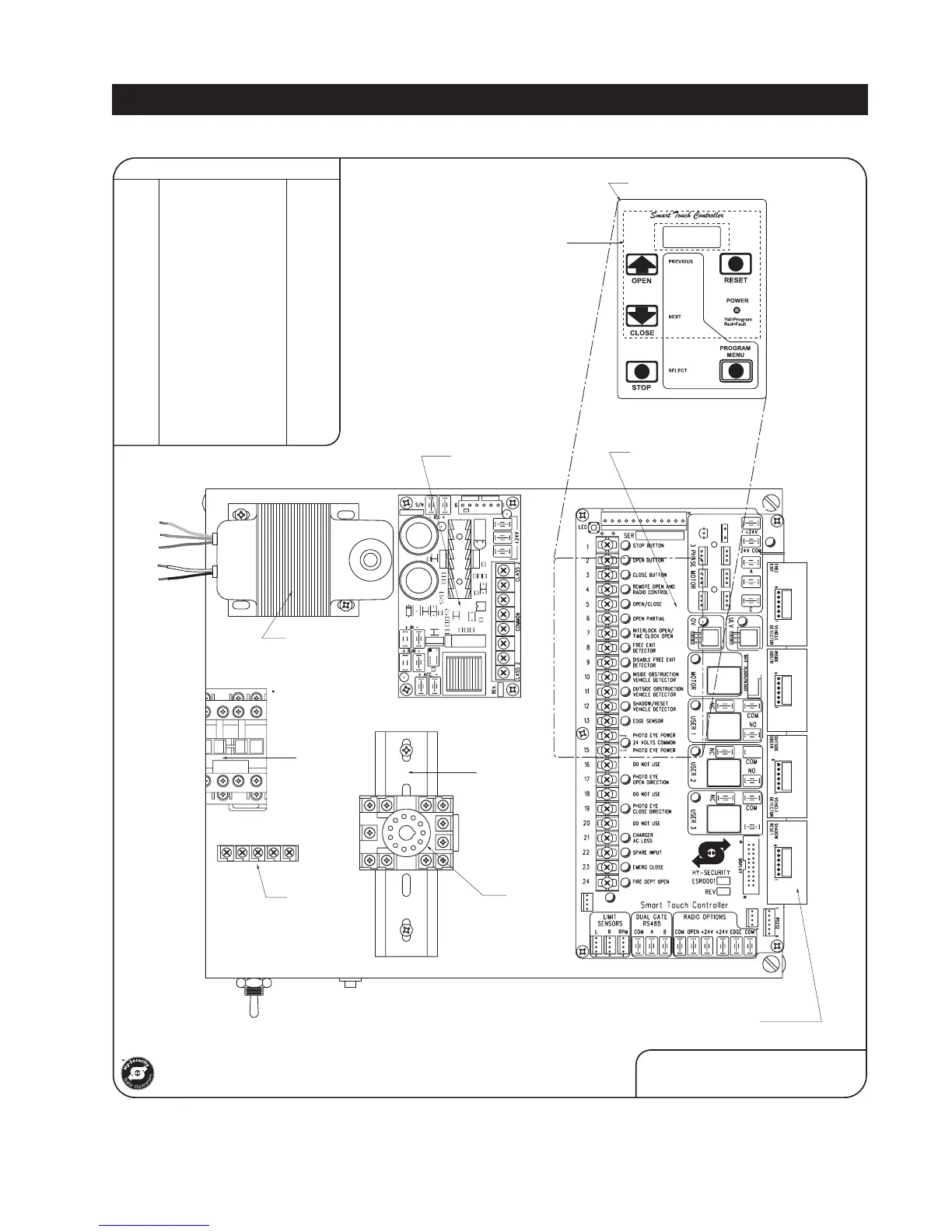

Component Diagram - 222 Control Box
HS40
PART NO.
2-1 ESR00016 AC 1 EA.
or DC version:
2- 2 ESROOO16 DC 1 EA.
2-3 ECOTS 7.5 1 EA.
2-4 ECOTS 005 1 EA.
2-5 ESWRB 03011PN 1 EA.
2-6 ESR 00018 SA 1 EA.
or DC version:
2-7 ESR 00018 SD 1 EA.
2-8 ETRTR 024 075 1 EA.
2-9 ESWMC TEL 1810 1 EA.
or
ESWMC AB1624 1 EA.
2-10 ESR00038 1 EA.
2-11 ESR00019 1 EA.
2-12 ESWDI 050 3P 1 EA.
2-13 ESR00039 1 EA.
2-14 EECDE HY5A 1 EA.
C
I
R
C
U
I
T
B
R
E
A
K
E
R
2-10 MEMBRANE SWITCH
2-11 DISPLAY BOARD
2-1 - AC
2-2 - DC
POWER SUPPLY
SMART TOUCH
CONTROLLER
2-6 - AC MODELS
2-7 - DC MODELS
2-3
2-5
11-PIN
SOCKET
MOUNTING
RAIL
CONTACTOR
2-9
2-4
TERMINAL 5-POLE
2-8
CONTROL
TRANSFORMER
VEHICLE DETECTOR
PLUG-IN MODULES
2-14
2-12
POWER
DISCONNECT
2-13
STOP/RESET
