1.2
LIFTING THE S23A WITH A FORK LIFT
The S23A is shrink-wrapped and shipped on a pallet. When lifting the pallet with a forklift truck make sure that the load is
rmly balanced. The pallet length dimension is 110" (2794 mm). A minimum fork length of 48" (1219 mm) is recommended
to safely lift the pallet.
Remove the wrapping from around the saw. Complete the inspection for signs of damage. Remove the lag bolts that hold
the saw to the pallet. The larger diameter hole is used for retaining during shipping and for use with concrete oor an-
chors. The smaller diameter, threaded holes at each corner are used for leveling the saw properly.
The shuttle guard, coolant tank, and drive side coolant cover have been removed for shipping and will need to be installed
prior to machine start up.

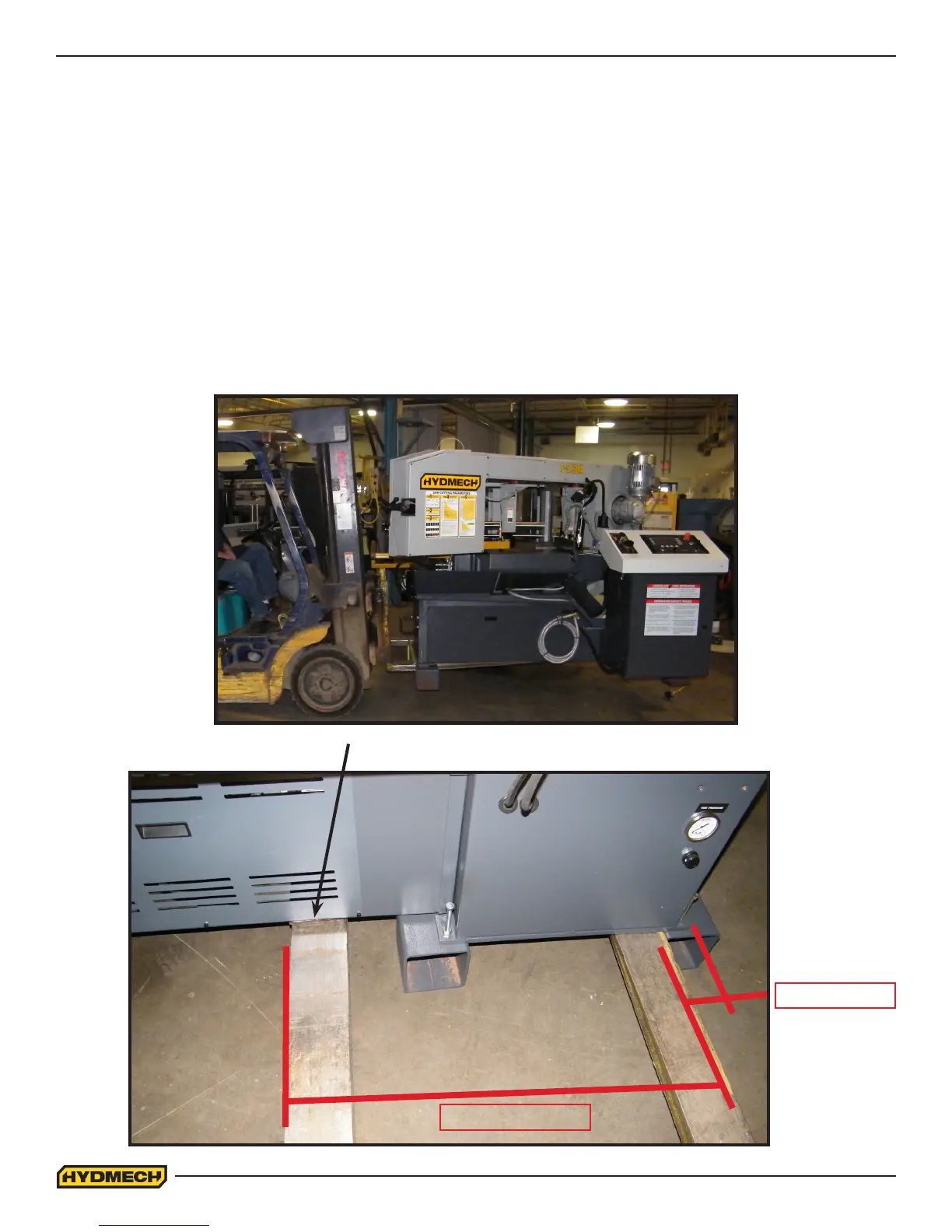

The machine should be lifted from the SIDE as shown below. Forklift spacing should be 36” (914mm). The right fork
should be located 3” (76mm) from the levelling foot.
NOTE: Position the left fork under the support bar to avoid damage to the hydraulic unit.
36” (914mm)
3” (76mm)
FLATBAR FOR FORKLIFT SUPPORT
