2.1
SECTION 2 - OPERATING INSTRUCTIONS
OPERATOR CONTROL PANEL
The operator control panel provides the operator with all the controls necessary to operate the saw after the cutting angle
has been set and the stock has been loaded and secured. All of the electrical functions are operated from the control
panel. For all the functions to work the machine has to be powered up. The Main Disconnect switch, which is located
on the side of control box, has to be in ON (1) position. Emergency Switch has to be released (Rotate Emergency button
45º to release). For the blade to operate the blade guard door has to be completely shut and blade tensioned to the cor-
rect setting:
Minimum tension 2600 lbs. (1180 kg) Maximum tension 3000 lbs. (1360 kg)
The Machine Disconnect Switch is located on the side of the machine control box. It is a Thermal-magnetic circuit
breaker with under voltage coil and door locking device. The switch consists of three power failure protection sys-
tems. In the event of a power failure, this switch disconnects all the electrical devices, causing the machine to immediately
shut down and prevents it from automatically starting when power is restored. This device also resets the thermal relay
tted to protect against current overloads.
START-UP
We can not overstress the importance of familiarizing yourself with the controls of the bandsaw prior to starting the ma-
chine for the rst time.
NOTE: WHEN STARTING THE BANDSAW FOR THE FIRST TIME MAKE SURE THAT THE PRESSURE IS 580 PSI
(40 BAR) AND THAT THE BLADE IS RUNNING IN A COUNTER CLOCKWISE DIRECTION AS VIEWED FROM THE
OPERATOR CONSOLE.

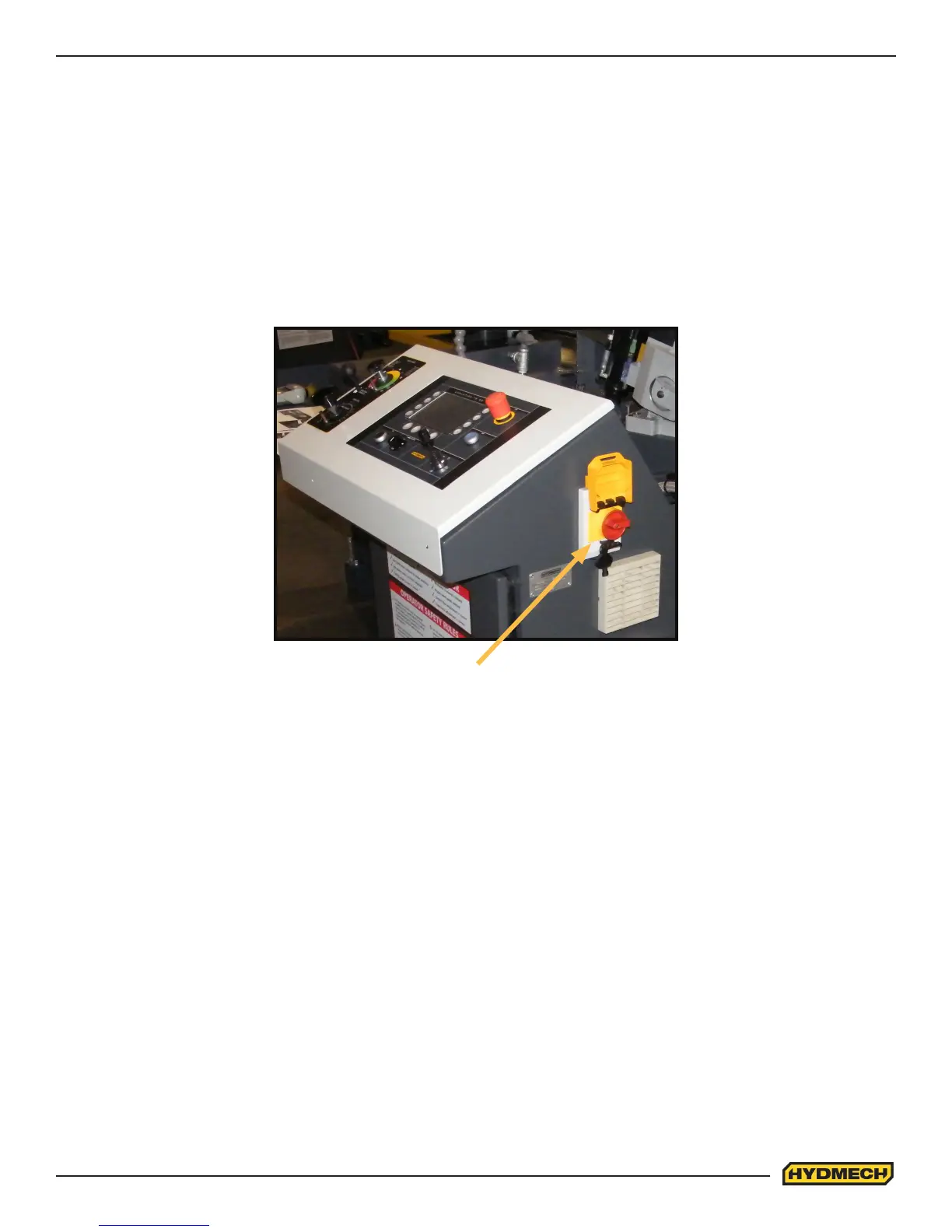

Machine Disconnect Switch
