2.10
F1
F2
F3
F4
F5
F6
F7
F8
START
STOP
mm
inch
X
inch
00000
f
t/min
S
54
reset
PC
J
LENGTH
999 999
No. PIECES
9999
PC 0000
FRONT VISE
SHUTTLE VISE

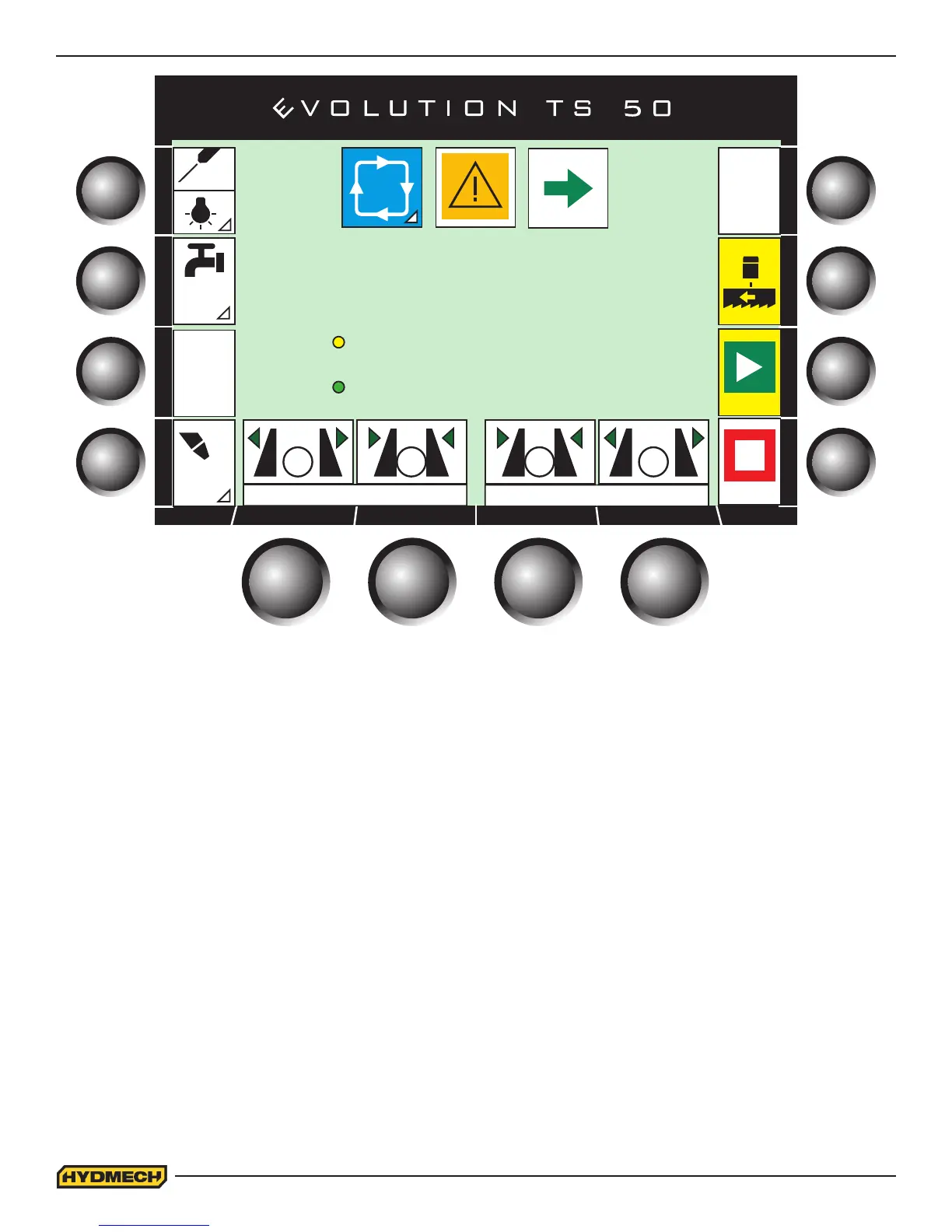

EXECUTE A SINGLE JOB IN AUTOMATIC MODE
1. Press the “Manual Mode” button on the touch screen. You are now in “Automatic Mode Single Job”
(Note: The Front Vise must be in the closed position in order to enter Automatic Mode)
2. Move material to the desired length and press vise close buttons. Position the head using the joystick for “Head
Up” or “Head Down” and adjust the upper limit position
3. Select Flood (F2) or Mist (F4) then “ON” or “Auto” by pressing the button continuously to cycle through the options
4. Tap the LENGTH entry box on the touchscreen to open the keypad
5. Enter the required length to be cut and press the “green check mark” button
6. Tap the No. PIECES entry box on the touchscreen to open the keypad. Enter # of pieces required and press the
“green check mark” button. Press F5 to reset piece counter.
7. Manually position the movable guide arm close to the workpiece.
8. Set Feed Force and Feed Rate using the dials on the left of the control panel.
9. Set Blade Speed using potentiometer.
10. Press F6 to enable the blade & then press F7 to start the blade & cycle. The blade will start and head will descend
with set feed rate. Shuttle will move to programmed length and close the shuttle vice. (Note. To start the cycle,
head must be in upper position and the head up switch activated)
11. After completion of the cut the blade will turn o and head will move up until the head up limit switch is activated.
12. Front vise will open and shuttle will feed programmed length.
13. Front vise will close, blade will start and head will descend with set feed rate. Shuttle will move to next
programmed length.
14. Cycle will repeat until all required pieces are cut.
15. To interrupt auto cycle press F8 and to restart auto cycle press F7. If an interrupted cycle is restarted then it will
start from the beginning of the cycle. In order to restart the head must be raised to the upper limit.
Reset can be pressed to abort the cycle.
