2.13
FAST APPROACH LEVER.
DEPRESS FOR FAST HEAD
DESCENT
FEED FORCE KNOB
USED TO SET FEED FORCE
LIMIT (COUNTERCLOCKWISE
ROTATION TO INCREASE AND
CLOCKWISE ROTATION TO
DECREASE).
FEED RATE KNOB
USED TO SET FEED RATE
(COUNTERCLOCKWISE
ROTATION TO INCREASE AND
CLOCKWISE ROTATION TO
DECREASE).

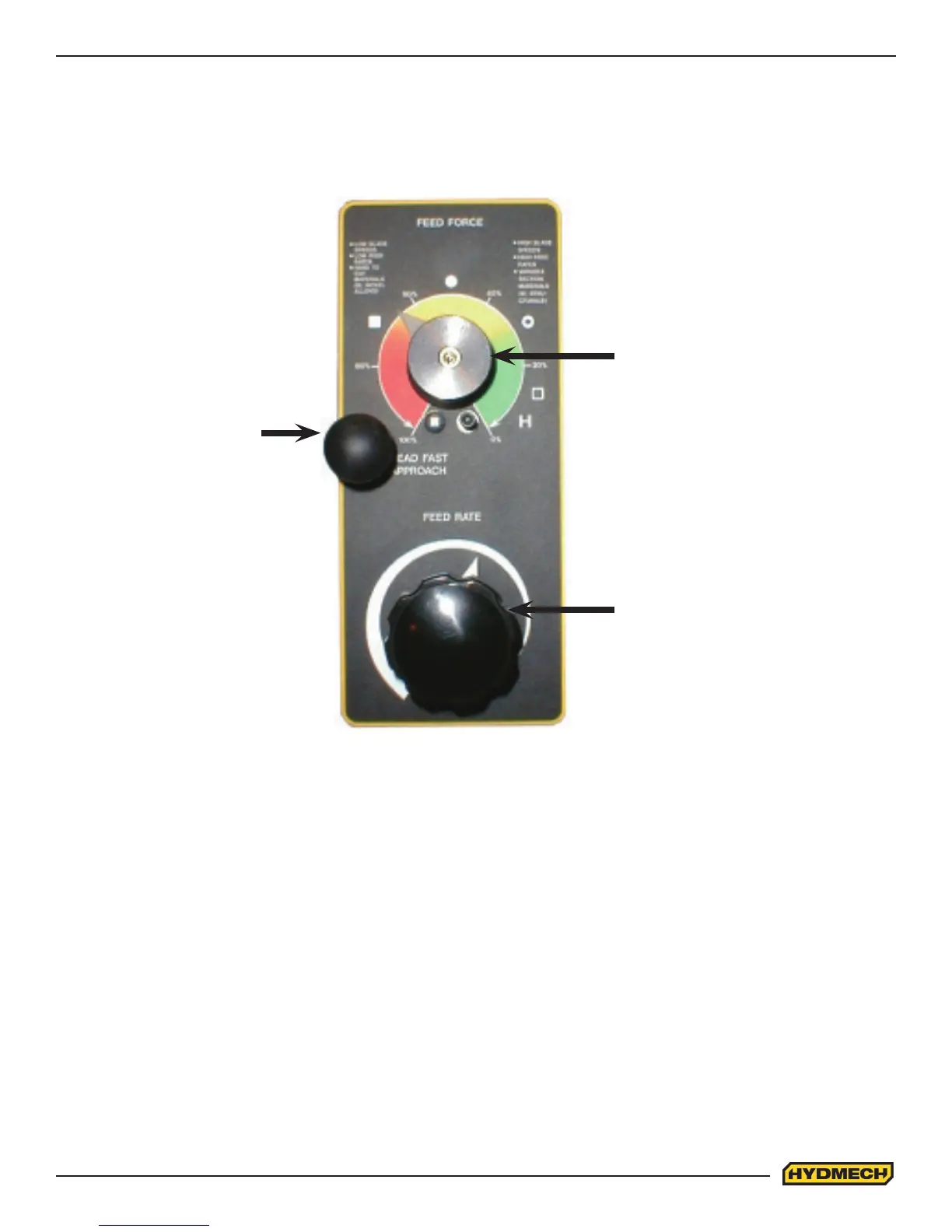

HYDRAULIC FEED CONTROL
The Hydraulic Feed Control is located to the left of the control panel. These controls allow independent control of
Feed Force (FF) and Feed Rate (FR)
