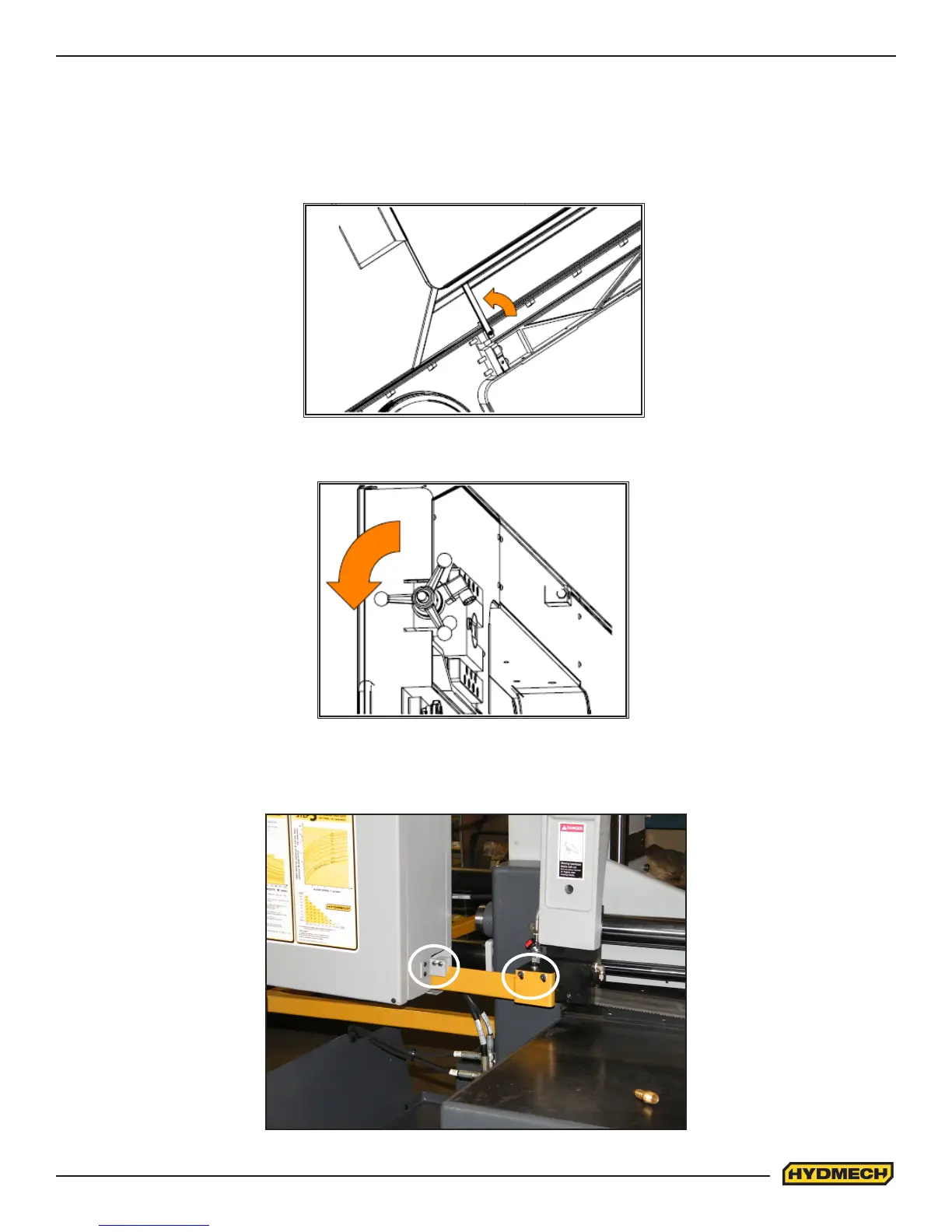

3.3
BLADE CHANGING PROCEDURE
Rotate the head about 15° and lift the head up from the table a couple inches to allow enough room to change the blade.
NOTE: Wear gloves for protection from the sharp blade.
1. Open the Wheels door by unscrewing the two knobs.
2. Loosen the Blade Tensioner by turning counter clockwise.
3. Remove the blade guard at idler guide arm by undoing the mounting screws and sliding it out of the guide
assembly.
