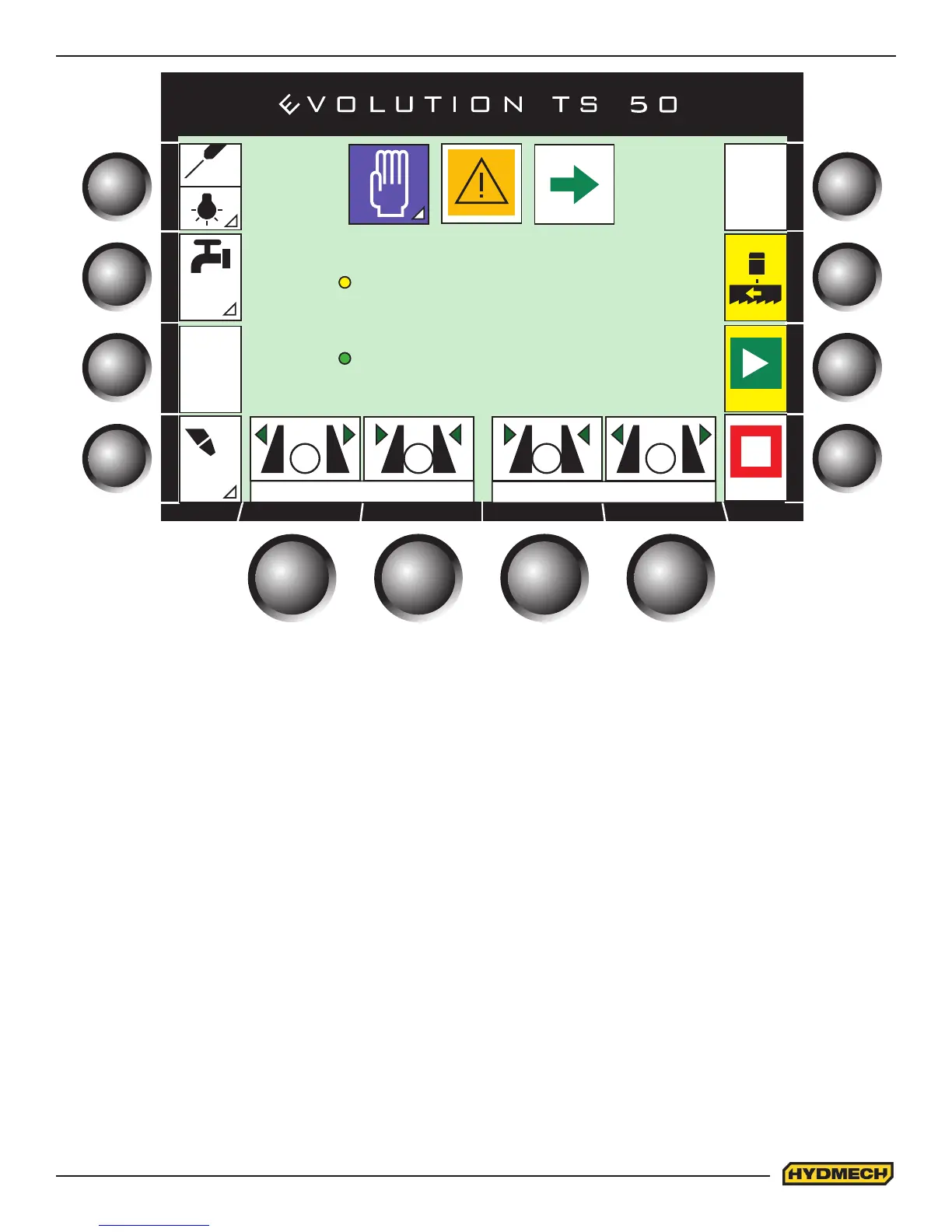

MAKE A CUT IN MANUAL MODE
1. You are now in “Manual Mode”
2. To move the shuttle by joystick, the head must be at the upper L/S. If not the head will move up until the head up
L/S is activated. Then the shuttle will move in the selected direction. Shuttle fast positioning - press the
“Fast” button then use the joystick.
3. Move the material to the desired length and press the front vise close button. Position the head by using the joy
stick for “Head Up” or “Head Down” and adjust the upper limit position
4. Select Flood (F2) or Mist (F4) then “ON” or “Auto” by pressing the button continuously to cycle through the
options.
5. Manually position the movable guide arm close to the work piece.
6. Set Feed Force and Feed Rate using the dials on the left of the control panel.
7. Set Blade Speed using potentiometer.
8. Press F6 to enable the blade & then press F7 to start the blade & cycle. The blade will start and head will descend
with set feed rate. (Note. To start the cycle, head must be in upper position and the head up switch activated)
9. After completion of the cut the blade will turn o and head will move up until the head up limit switch is activated.
10. To make another cut repeat steps 3 to 8.
