2.2

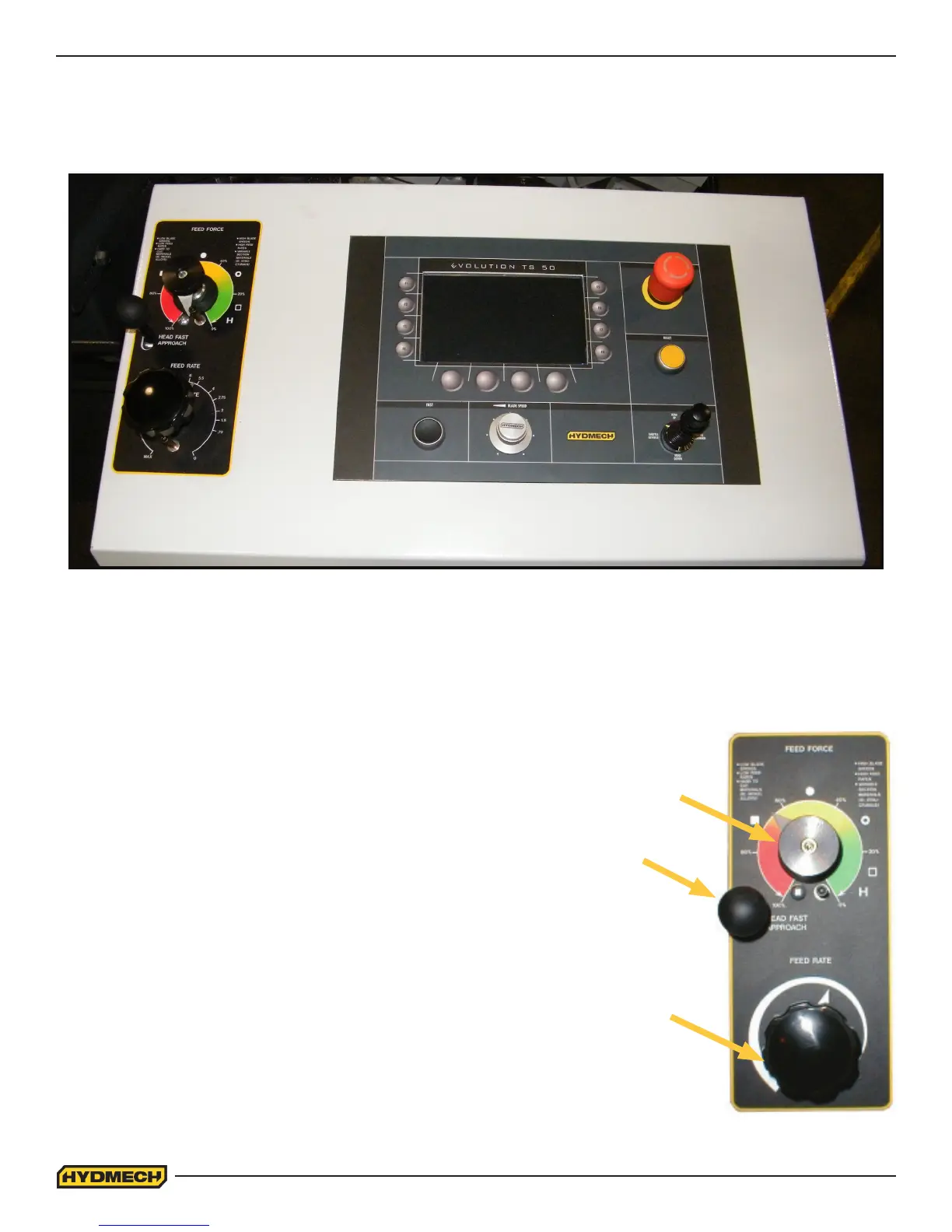

CONTROL CONSOLE
The control console is arrayed with a complete set of controls to operate the electrical and hydraulic functions of the saw.
The HMI (Human Machine Interface) consists of all, the electrical controls required to function the saw.
HYDRAULIC FEED CONTROL
The hydraulic feed controls are located on the left side of the control console and consist of the Feed Force Setting knob,
the Feed Rate knob and the Head Fast Approach lever. These controls allow the operator to control both the Feed Force
Limit and the Feed Rate. See Cutting Parameters Chart information on the following pages.
Feed Force Control
Fast Approach
Feed Rate Control
To Next Page
