POWER WIRING CONNECTIONS
After the machine is levelled and anchored the necessary power hook-up needs to be performed.
Check that there is no sign of shipping damage to the electrical conduits, cords or hydraulic hoses.
As supplied, the machine is set to run on three phase voltage as indicated on the serial plate and voltage label.
Machine voltage is customer specic and should be indicated while ordering the machine. If machine voltage does not
match available power source, contact the factory.
Power connection to the machine is made in the junction box, located on the side of the electrical panel. The power cable
can be routed through the supplied hole in the junction box (ensure correct strain relief is used) and connections made to
terminals L1, L2, L3 and ground terminals. If the machine is equipped with an auto-transformer then the power cable is to
be connected to the fuses located in the junction box.

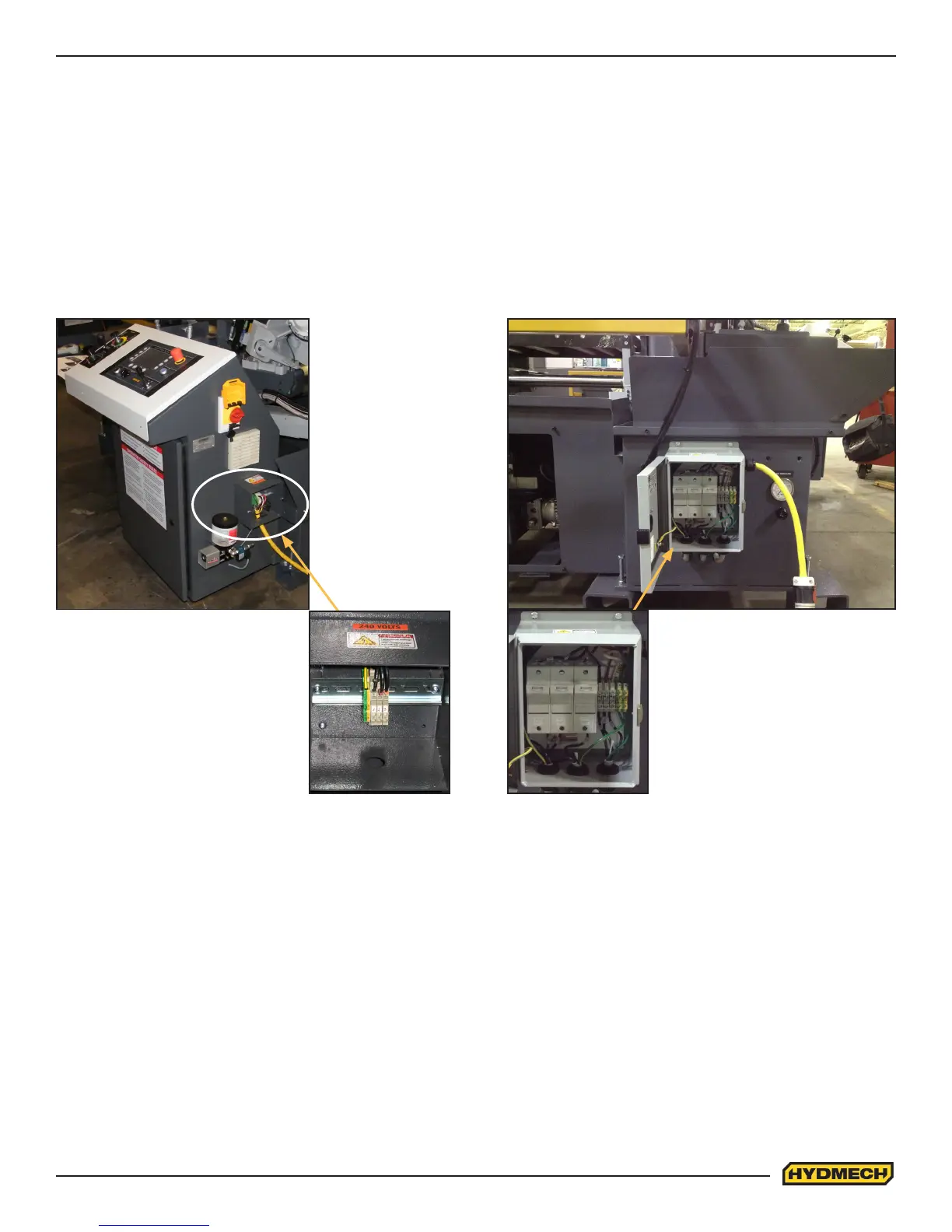

Power junction box without
auto-transformer installed in the
bandsaw. (240V & 480V)
Drive Side of the Machine
Power junction box with
auto-transformer installed in the
bandsaw (208V & 575V)
Idler Side of the Machine
HYDRAULIC OIL
The S23A is supplied with Texaco Rando HD46 hydraulic oil. Substitutes should be of the same viscosity hydraulic oil.
CUTTING FLUID
The S23A uses a pump and reservoir to circulate the necessary cutting uid to the blade for maximum blade life. Your saw
blade supplier will be able to provide information to the cutting uid products that are available for your needs.
No cutting uid (coolant) is supplied with the machine. There are two types of coolant available:
- Oil based; dilute 1:10 ratio (one part concentrated coolant to 10 parts water)
- Synthetic; dilute as recommended by manufacturer.
