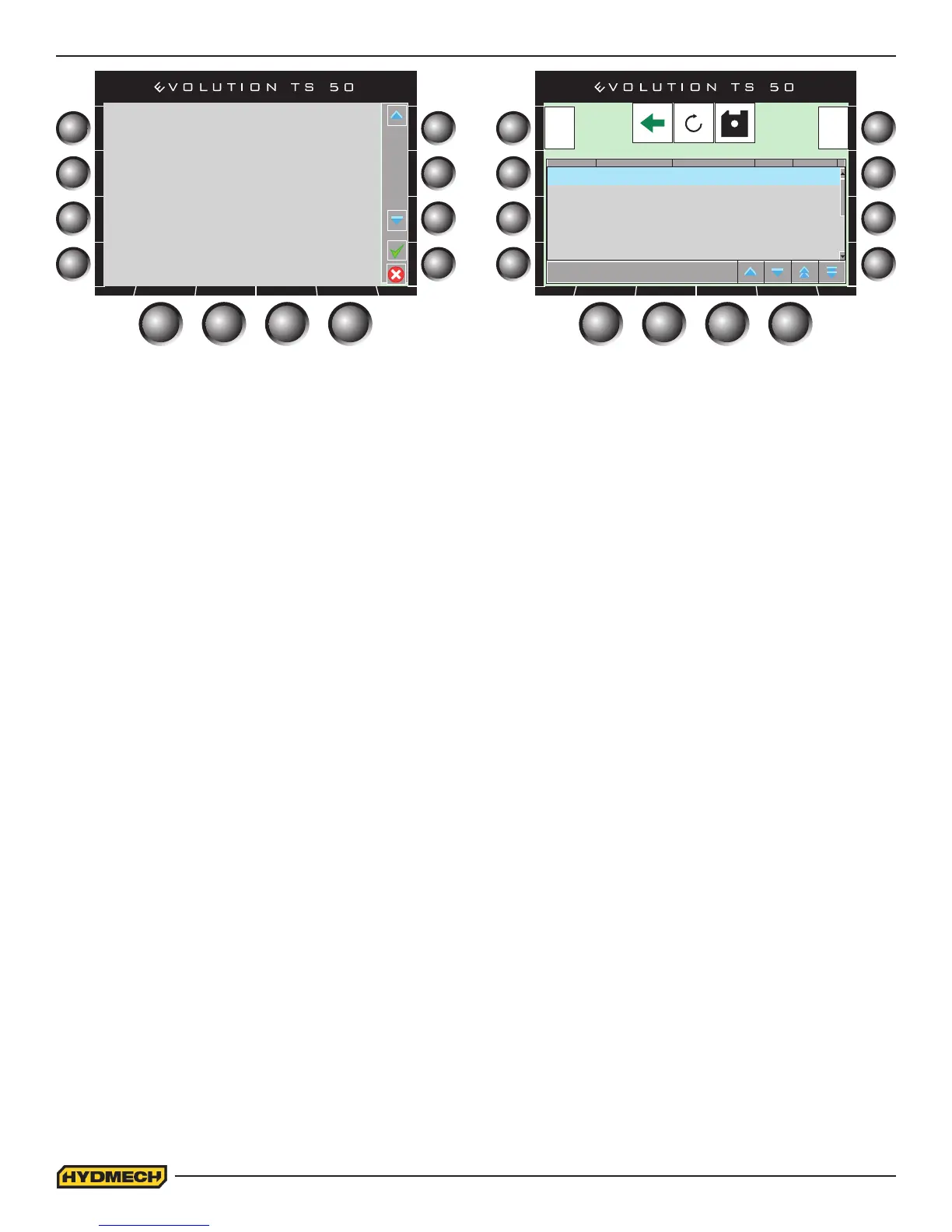

2.12
5. Repeat above setup for desired number of jobs. Maximum 10 jobs can be programmed in queue.
6. Press F1 to Reset Queue
7. Press F5 to Reset No. Pieces
8. Tap Save Icon to save the entered data. Press Exit button (back arrow) on the touchscreen to return to the cycle
start screen.
9. Manually position the movable guide arm close to the workpiece.
10. Select Flood (F2) or Mist (F4) then “ON” or “Auto” by pressing the button continuously to cycle through the options
11. Set Feed Force and Feed Rate using the dials on the left of the control panel.
12. Set Blade Speed using the blade speed potentiometer.
13. Press F6 to enable the blade & then press F7 to start the blade & cycle. The blade will start and head will descend
with set feed rate. Shuttle will move to programmed length and close the shuttle vice. (Note. To start the cycle,
head must be in upper position and activate the head up limit switch.)
14. After completion of the cut the blade will turn o and head will move up until the head up limit switch is activated.
15. Front vise will open and shuttle will feed programmed length.
16. Front vise will close, blade will start and head will descend with set feed rate. Shuttle will move to next
programmed length.
17. Cycle will repeat until all required pieces are cut and all jobs in queue are completed.
18. To interrupt auto cycle press F8 and to restart auto cycle press F7. If an interrupted cycle is restarted then it will
start from the beginning of the cycle. In order to restart the head must be raised to the upper limit.
Reset can be pressed to abort the cycle.
F1
F2
F3
F4
F5
F6
F7
F8
No
Ye s
F1
F2
F3
F4
F5
F6
F7
F8
1
2
4
3
5
1
5
3
2
2
Ye s
No
No
Ye s
Ye s
101010
201010
401010
301010
501010
100.0000
300.00
400.00
200.0000
300.0000
Program Part Number
Length No. Pieces
Enable
Page 1/10
reset
PC
reset
QUEUE
To Next Page
